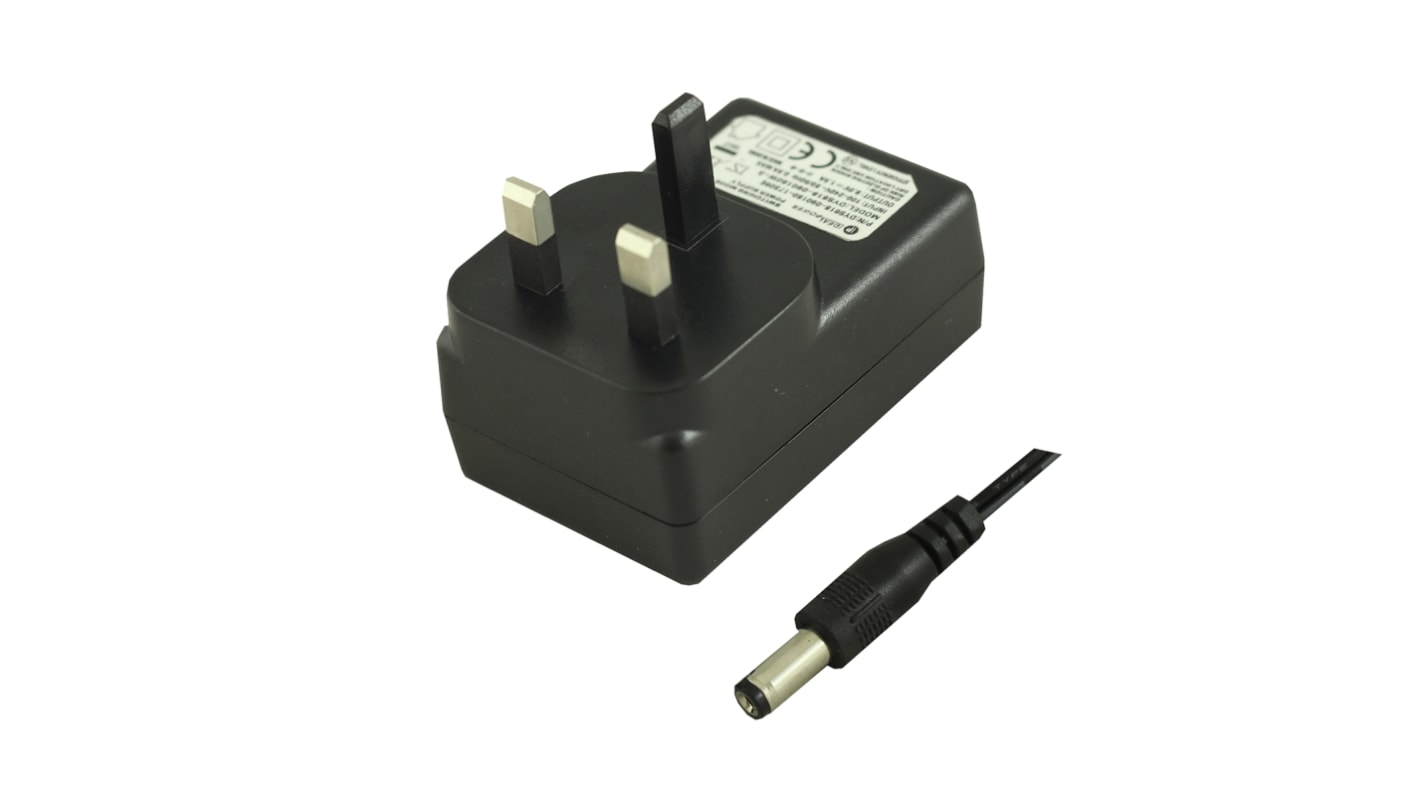

RS PRO 18W Plug In Power Supply 15V dc Output, 1.2A Output
- RS Stock No.:
- 175-2811
- Brand:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£11.71
(exc. VAT)
£14.05
(inc. VAT)
- RS Stock No.:
- 175-2811
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Plug Type | Type G | |
| Output Voltage | 15V dc | |
| Input Voltage | 100 V ac, 110 V ac, 115 V ac, 120 V ac, 127 V ac, 220 V ac, 230 V ac, 240 V ac | |
| Output Current | 1.2A | |
| Maximum Temperature | +40°C | |
| Output Connector | 2.1 x 5.5 x 12 mm Centre Positive | |
| Input Connector | UK Plug | |
| Number of Outputs | 1 | |
| Power Rating | 18W | |
| Regulated/Unregulated | Regulated | |
| Cable Length | 1.5m | |
| MTBF | 50000h | |
| Standards Met | CE-EMC, LVD | |
| Efficiency | 85% | |
| Type | Switched Mode Power Supply | |
| Depth | 36.6mm | |
| Minimum Temperature | 0°C | |
| Width | 50mm | |
| Length | 76.8mm | |
| Load Regulation | ±5% | |
| Series | 15DYS618 | |
| Energy Efficiency Level | VI | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Plug Type Type G | ||
Output Voltage 15V dc | ||
Input Voltage 100 V ac, 110 V ac, 115 V ac, 120 V ac, 127 V ac, 220 V ac, 230 V ac, 240 V ac | ||
Output Current 1.2A | ||
Maximum Temperature +40°C | ||
Output Connector 2.1 x 5.5 x 12 mm Centre Positive | ||
Input Connector UK Plug | ||
Number of Outputs 1 | ||
Power Rating 18W | ||
Regulated/Unregulated Regulated | ||
Cable Length 1.5m | ||
MTBF 50000h | ||
Standards Met CE-EMC, LVD | ||
Efficiency 85% | ||
Type Switched Mode Power Supply | ||
Depth 36.6mm | ||
Minimum Temperature 0°C | ||
Width 50mm | ||
Length 76.8mm | ||
Load Regulation ±5% | ||
Series 15DYS618 | ||
Energy Efficiency Level VI | ||
- COO (Country of Origin):
- CN
6∼24W AC-DC UK Plugtop Power Supplies
Universal Input 90∼264V AC 47∼63Hz
Fixed UK plug
2.1 x 5.5mm connector
Fixed UK plug
2.1 x 5.5mm connector
