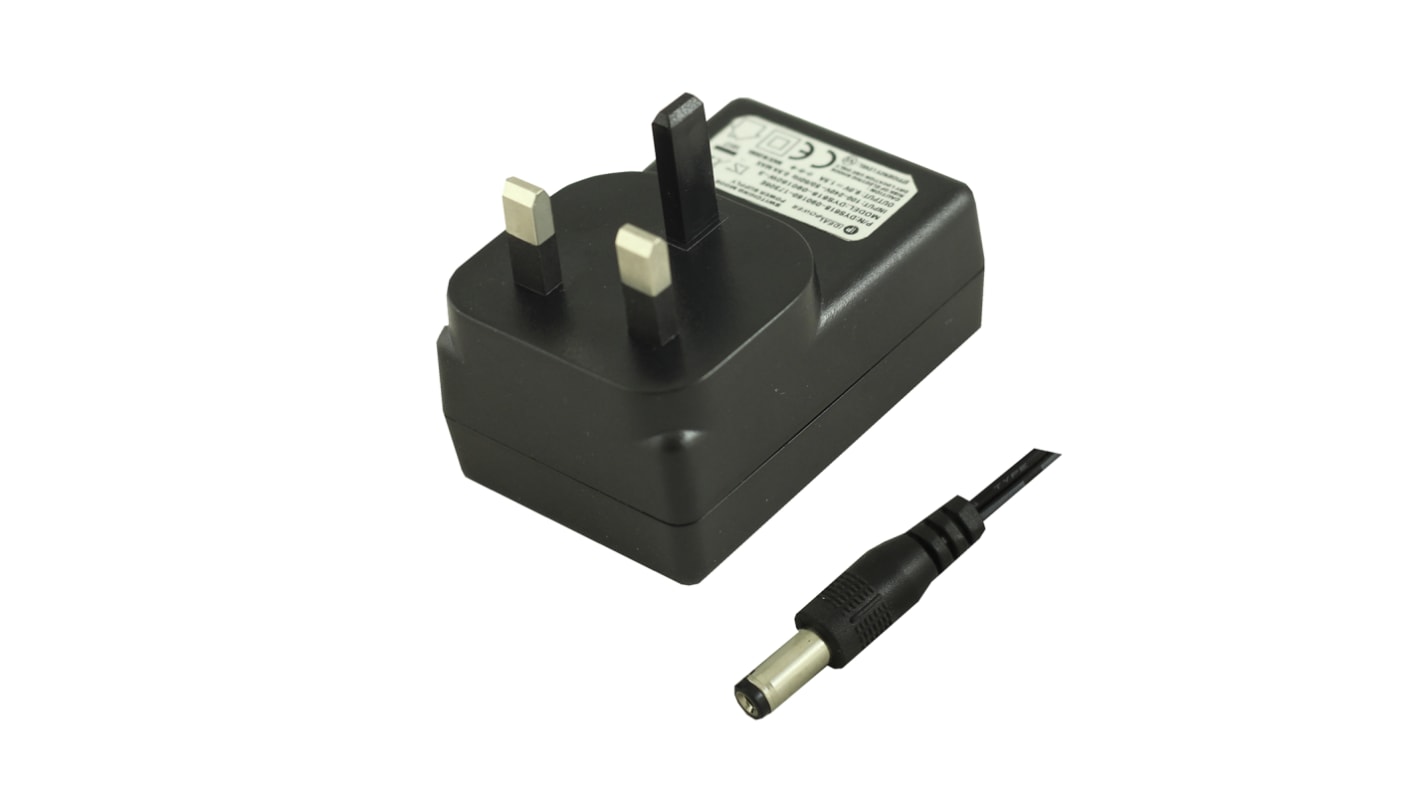

RS PRO 17.5W Plug In Power Supply 5V dc Output, 3.5A Output
- RS Stock No.:
- 175-2810
- Brand:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 175-2810
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Plug Type | Type G | |
| Output Voltage | 5V dc | |
| Input Voltage | 100 V ac, 110 V ac, 115 V ac, 120 V ac, 127 V ac, 220 V ac, 230 V ac, 240 V ac | |
| Output Current | 3.5A | |
| Maximum Temperature | +40°C | |
| Output Connector | 2.1 x 5.5 x 12 mm Centre Positive | |
| Input Connector | UK Plug | |
| Number of Outputs | 1 | |
| Power Rating | 17.5W | |
| Regulated/Unregulated | Regulated | |
| Cable Length | 1.2m | |
| Efficiency | 82.32% | |
| Standards Met | CE-EMC, LVD | |
| MTBF | 50000h | |
| Depth | 36.6mm | |
| Type | Switched Mode Power Supply | |
| Load Regulation | ±5% | |
| Series | 15DYS618 | |
| Energy Efficiency Level | VI | |
| Width | 50mm | |
| Minimum Temperature | 0°C | |
| Length | 76.8mm | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Plug Type Type G | ||
Output Voltage 5V dc | ||
Input Voltage 100 V ac, 110 V ac, 115 V ac, 120 V ac, 127 V ac, 220 V ac, 230 V ac, 240 V ac | ||
Output Current 3.5A | ||
Maximum Temperature +40°C | ||
Output Connector 2.1 x 5.5 x 12 mm Centre Positive | ||
Input Connector UK Plug | ||
Number of Outputs 1 | ||
Power Rating 17.5W | ||
Regulated/Unregulated Regulated | ||
Cable Length 1.2m | ||
Efficiency 82.32% | ||
Standards Met CE-EMC, LVD | ||
MTBF 50000h | ||
Depth 36.6mm | ||
Type Switched Mode Power Supply | ||
Load Regulation ±5% | ||
Series 15DYS618 | ||
Energy Efficiency Level VI | ||
Width 50mm | ||
Minimum Temperature 0°C | ||
Length 76.8mm | ||
- COO (Country of Origin):
- CN
6∼24W AC-DC UK Plugtop Power Supplies
Universal Input 90∼264V AC 47∼63Hz
Fixed UK plug
2.1 x 5.5mm connector
Fixed UK plug
2.1 x 5.5mm connector
