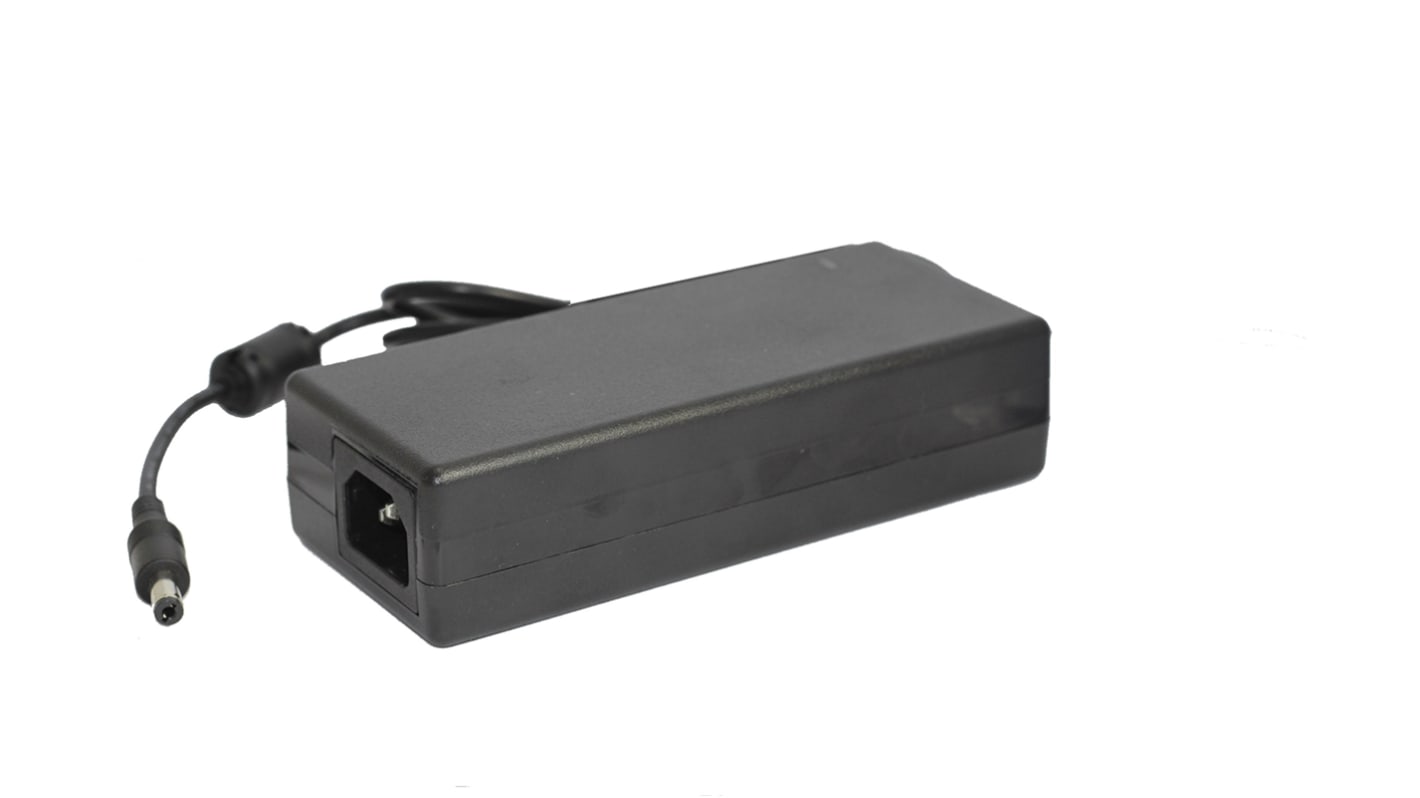

RS PRO Power Brick AC/DC Adapter 15V dc Output, 0 → 6A Output
- RS Stock No.:
- 175-2795
- Brand:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£35.44
(exc. VAT)
£42.53
(inc. VAT)
- RS Stock No.:
- 175-2795
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Adapter Type | Power Brick Adapter | |
| Plug Type | C14 | |
| Output Voltage | 15V dc | |
| Input Voltage | 80 → 264V ac | |
| Output Current | 0 → 6A | |
| Maximum Temperature | +40°C | |
| Input Connector | IEC 320-C14 | |
| Number of Outputs | 1 | |
| Cable Length | 1.2m | |
| Efficiency | 88% | |
| Line Regulation Range | ±1% | |
| Width | 60mm | |
| Series | 66JYH | |
| Minimum Temperature | 0°C | |
| Energy Efficiency Level | VI | |
| Length | 140mm | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Adapter Type Power Brick Adapter | ||
Plug Type C14 | ||
Output Voltage 15V dc | ||
Input Voltage 80 → 264V ac | ||
Output Current 0 → 6A | ||
Maximum Temperature +40°C | ||
Input Connector IEC 320-C14 | ||
Number of Outputs 1 | ||
Cable Length 1.2m | ||
Efficiency 88% | ||
Line Regulation Range ±1% | ||
Width 60mm | ||
Series 66JYH | ||
Minimum Temperature 0°C | ||
Energy Efficiency Level VI | ||
Length 140mm | ||
- COO (Country of Origin):
- CN
These Desktop Power Supplies comply with ErP II & Level VI energy regulations, and have a high efficiency rating, No load power consumption and low leakage current and comply with the relevant safety and EMC standards. Typical applications for these Desktop power supplies include IT, point of sale, networking and peripherals equipment, gaming machines, amongst many others.
Universal input voltages 100-240 VAC
DoE Level VI Efficiency
0-40ºC Operating Temperature
Limited Power Source (LPS)
Over Voltage & Short Circuit Protection
RoHS-REACH Compliant
Meets EN 55032
Class I IEC C14 Connector
2.1 X 5.5 DC Connector
DoE Level VI Efficiency
0-40ºC Operating Temperature
Limited Power Source (LPS)
Over Voltage & Short Circuit Protection
RoHS-REACH Compliant
Meets EN 55032
Class I IEC C14 Connector
2.1 X 5.5 DC Connector
