Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£29.40
(exc. VAT)
£35.28
(inc. VAT)
- RS Stock No.:
- 144-0977
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Plug Type | 3-Pin IEC | |
| Maximum Temperature | +40°C | |
| Input Connector | IEC C14 | |
| Number of Outputs | 1 | |
| Cable Length | 1200mm | |
| Standards Met | CB, CCC, CE, C-TICK (RCM), cUL, FCC, TUV/GS, UL | |
| Efficiency | 88% | |
| Energy Efficiency Level | VI | |
| Minimum Temperature | 0°C | |
| Series | JYH32 | |
| Line Regulation Range | ±1% | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Plug Type 3-Pin IEC | ||
Maximum Temperature +40°C | ||
Input Connector IEC C14 | ||
Number of Outputs 1 | ||
Cable Length 1200mm | ||
Standards Met CB, CCC, CE, C-TICK (RCM), cUL, FCC, TUV/GS, UL | ||
Efficiency 88% | ||
Energy Efficiency Level VI | ||
Minimum Temperature 0°C | ||
Series JYH32 | ||
Line Regulation Range ±1% | ||
- COO (Country of Origin):
- CN

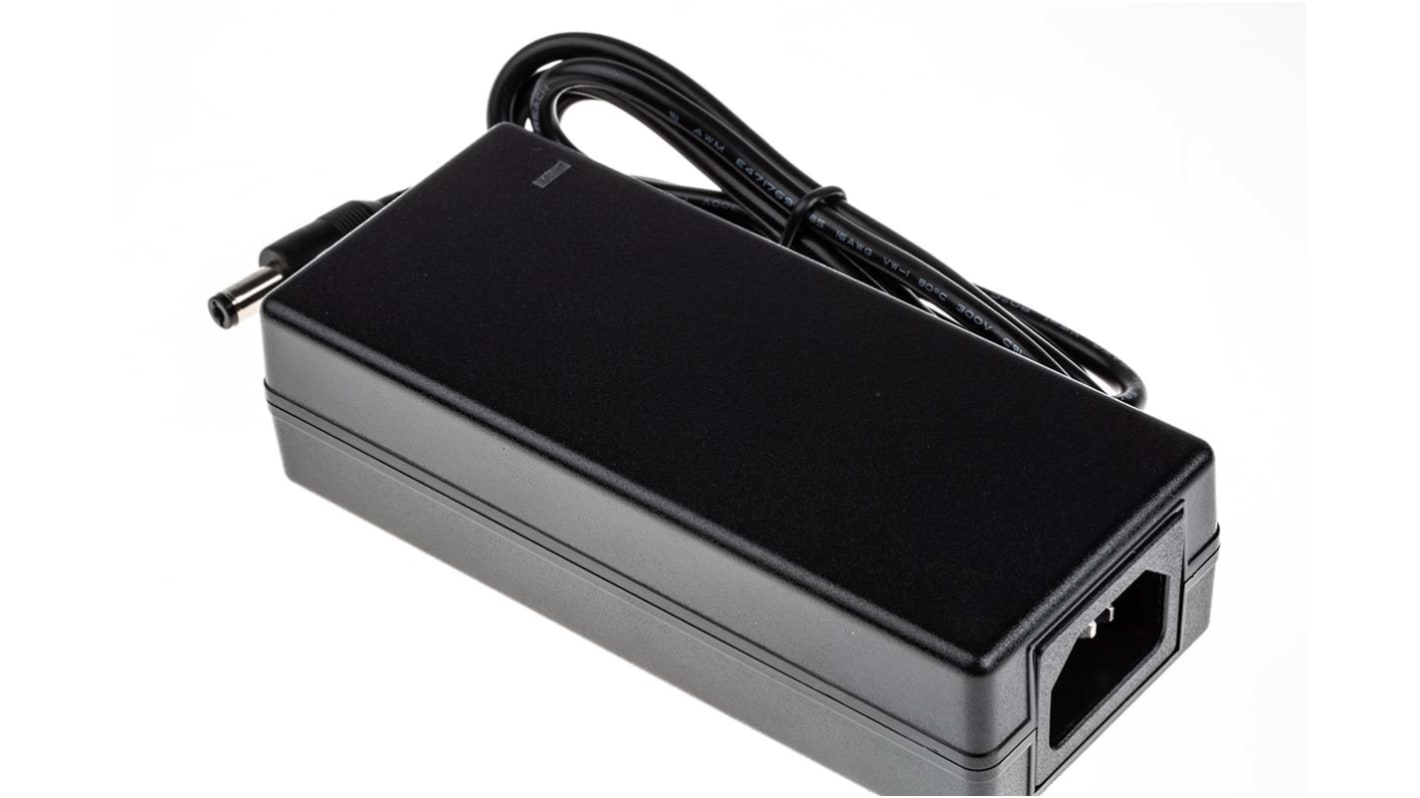

RS Pro 60W Desktop Power Supply
The RS Pro Class I Desktop power supply has an output power of 60W and compliance to ErP III (Level VI) efficiency regulations and has a built in short-circuit and over-voltage protector. This power supply is lightweight, simple to use and has a 3-pin IEC connector. Ideal for consumer electronic good.
Features & benefits include:
• ErP III (Level VI) Efficiency Regulations Compliance
• Efficiency 88% Typical
• Operating Temperature 0∼40°C
• Short-circuit Protection
• Over-Voltage Protection
• Available in 2 Pin C8 and 3 Pin C6 Inlet
• Approved to UL, cUL, TUV-GS, C-TICK (RCM), PSE, CCC, CB, FCC, CE & RoHS
• Efficiency 88% Typical
• Operating Temperature 0∼40°C
• Short-circuit Protection
• Over-Voltage Protection
• Available in 2 Pin C8 and 3 Pin C6 Inlet
• Approved to UL, cUL, TUV-GS, C-TICK (RCM), PSE, CCC, CB, FCC, CE & RoHS
How does it connect?
• The desktop power supply complies to a 3-pin IEC plug type, C14 input connector (not supplied)
What devices can I power?
• Consumer electronics
Safety Standards
• Fcc part15 class B rules
• EN55032 class B rules
• GB9254-1998,GB17625.1-2003
• EN55032 class B rules
• GB9254-1998,GB17625.1-2003
Approvals
• C-TICK (RCM), CB, CCC, CE, CUL, FCC, TUV/GS, UL
