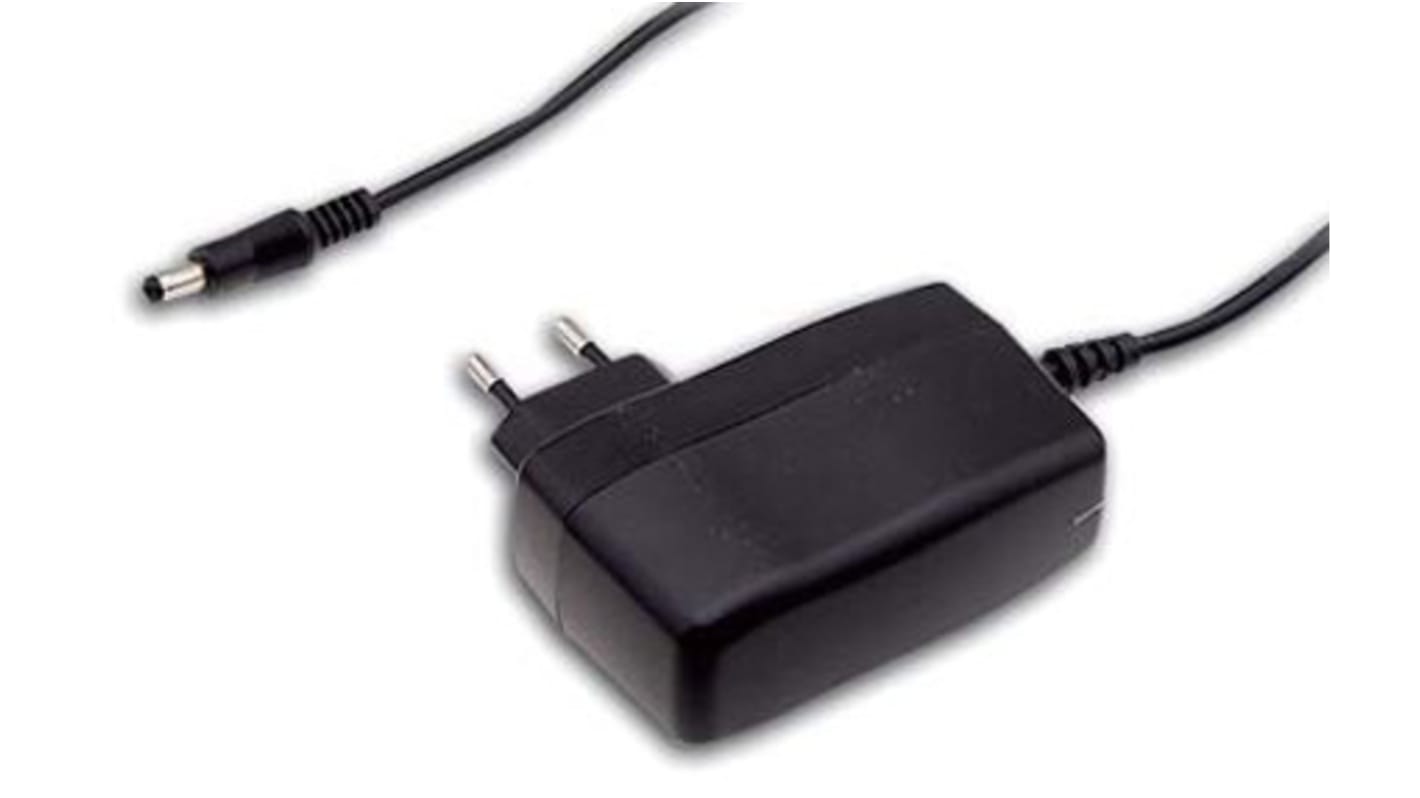

MEAN WELL 60W Plug-In AC/DC Adapter 5V dc Output, 6A Output
- RS Stock No.:
- 136-1370
- Distrelec Article No.:
- 300-43-505
- Mfr. Part No.:
- SGA60E05-P1J
- Brand:
- MEAN WELL
Subtotal (1 unit)*
£23.15
(exc. VAT)
£27.78
(inc. VAT)
FREE delivery for orders over £50.00
- 93 unit(s) ready to ship
- Plus 16 unit(s) ready to ship from another location
Units | Per unit |
---|---|
1 + | £23.15 |
*price indicative
- RS Stock No.:
- 136-1370
- Distrelec Article No.:
- 300-43-505
- Mfr. Part No.:
- SGA60E05-P1J
- Brand:
- MEAN WELL
Select all | Attribute | Value |
---|---|---|
Brand | MEAN WELL | |
Adapter Type | Plug-In Adapter | |
Plug Type | Type C | |
Output Voltage | 5V dc | |
Input Voltage | 100 V ac, 110 V ac, 115 V ac, 120 V ac, 127 V ac, 220 V ac, 230 V ac, 240V ac | |
Output Current | 6A | |
Maximum Temperature | +50°C | |
Output Connector | 2.1 x 5.5 x 11 mm Centre Positive | |
Input Connector | EU Plug | |
Number of Outputs | 1 | |
Power Rating | 60W | |
Regulated/Unregulated | Regulated | |
Cable Length | 1m | |
Medical Approved | No | |
MTBF | (Minimum) 400000h | |
Standards Met | CB, CE Certified, cULus Recognised, EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, EN 61000-4, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, TUV Rheinland EN 60950-1 | |
Length | 93.5mm | |
Series | SGA60E | |
Energy Efficiency Level | VI | |
Minimum Temperature | -20°C | |
Type | AC/DC Adapter | |
Select all | ||
---|---|---|
Brand MEAN WELL | ||
Adapter Type Plug-In Adapter | ||
Plug Type Type C | ||
Output Voltage 5V dc | ||
Input Voltage 100 V ac, 110 V ac, 115 V ac, 120 V ac, 127 V ac, 220 V ac, 230 V ac, 240V ac | ||
Output Current 6A | ||
Maximum Temperature +50°C | ||
Output Connector 2.1 x 5.5 x 11 mm Centre Positive | ||
Input Connector EU Plug | ||
Number of Outputs 1 | ||
Power Rating 60W | ||
Regulated/Unregulated Regulated | ||
Cable Length 1m | ||
Medical Approved No | ||
MTBF (Minimum) 400000h | ||
Standards Met CB, CE Certified, cULus Recognised, EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, EN 61000-4, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, TUV Rheinland EN 60950-1 | ||
Length 93.5mm | ||
Series SGA60E | ||
Energy Efficiency Level VI | ||
Minimum Temperature -20°C | ||
Type AC/DC Adapter | ||
