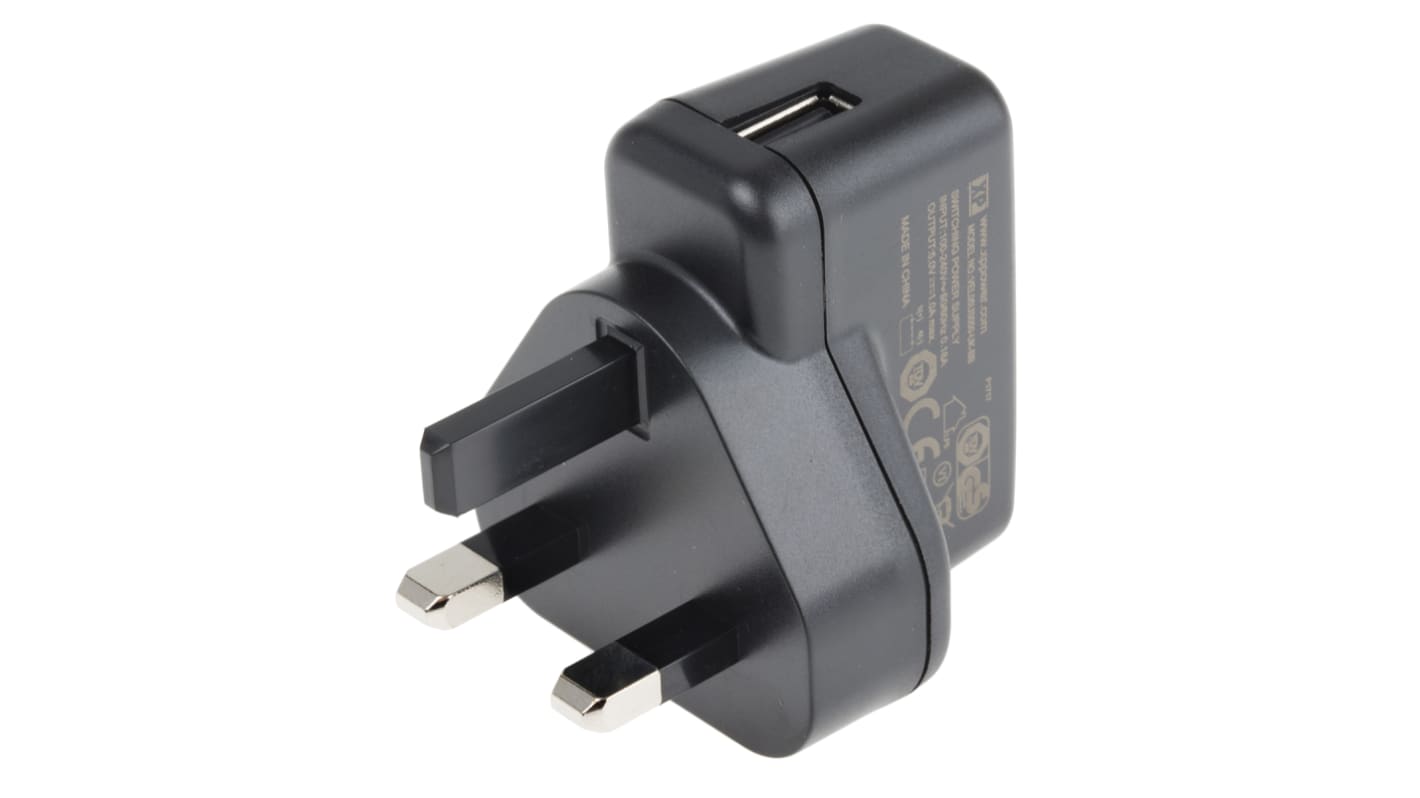

XP Power, 5W Plug In Power Supply 5V dc, 1A, Level VI Efficiency, 1 Output Switched Mode Power Supply, Type G

  • RS Stock No. 121-7118
  • Mfr. Part No. VEL05US050-UK-BB
  • Brand XP Power
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

XP Power Supply

The XP Power VEL05 series USB plug-in power supply has a regulated output voltage rating of 5VDC and current rating of 1A. It supports numerous applications due to its wide-ranging input (90-264VAC) that complies with the universal standard. The highly reliable power supply has an output voltage rating ranging from 5V to 12V. This range attributes universal input and fixed mains connectors.

Features and Benefits

Plug-in power supply of 5W
Energy efficiency level VI
Output connector is USB A
Input connector is UK plug
77% efficiency
Class II construction

Certifications

EN55022
EN61000-3-2
EN61000-3-3
EN61000-4-2
EN61000-4-4
EN61000-4-5
EN61000-4-6
EN61000-4-8
EN55024
IEC60950-1
UL/cUL60950-1
EN60950-1

Specifications
Attribute Value
Type Switched Mode Power Supply
Plug Type Type G
Output Voltage 5 V dc
Input Voltage 100 V ac, 110 V ac, 115 V ac, 120 V ac, 127 V ac, 220 V ac, 230 V ac, 240 V ac
Output Current 1A
Maximum Temperature +60°C
Output Connector USB Type A
Input Connector UK Plug
Number of Outputs 1
Power Rating 5W
Cable Length 1.5m
Energy Efficiency Level VI
Minimum Temperature 0°C
Depth 42.9mm
Width 49.5mm
Load Regulation 5%
Length 55.1mm
Standards Met CB Report, CCC, CUL/UL 60950-1, EN 55022, EN 55024, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, IEC 60950-1, TUV
Series VEL05
875 In stock - FREE next working day delivery available
Price Each
£ 4.16
(exc. VAT)
£ 4.99
(inc. VAT)
Units
Per unit
1 - 4
£4.16
5 - 9
£4.04
10 - 24
£3.91
25 - 49
£3.79
50 +
£3.66
