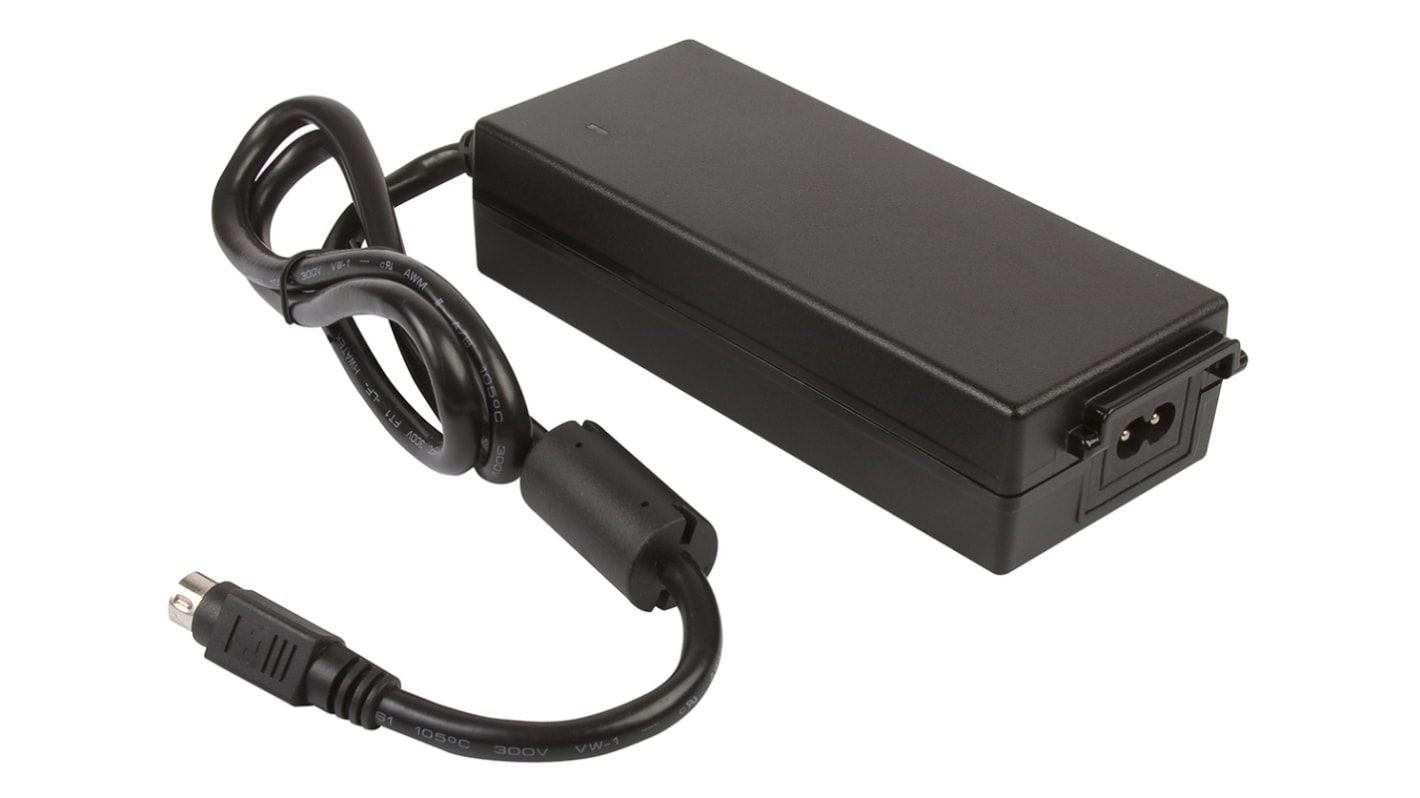

XP Power AC/DC Adapter
- RS Stock No.:
- 121-7080
- Mfr. Part No.:
- AHM85PS12C2-8
- Brand:
- XP Power
Stock information currently inaccessible
- RS Stock No.:
- 121-7080
- Mfr. Part No.:
- AHM85PS12C2-8
- Brand:
- XP Power
Specifications
Technical Reference
Legislation and Compliance
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | XP Power | |
| Maximum Temperature | +60°C | |
| Input Connector | IEC 320-C8 | |
| Number of Outputs | 1 | |
| Cable Length | 900mm | |
| Medical Approved | Yes | |
| Standards Met | ANSI/AAMI ES60601-1, CEC2008, CSA 22.2 No. 60601-1, EISA 2007, EN 55011/22, EN 60601-1, EN 60601-1-2, EN 60950, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, MIL-HDBK-217F, PSE Certified, UL 60950 | |
| MTBF | 153kh | |
| Efficiency | 92% | |
| Series | AHM | |
| Line Regulation Range | ±1.5% | |
| Minimum Temperature | 0°C | |
| Energy Efficiency Level | V | |
| Select all | ||
|---|---|---|
Brand XP Power | ||
Maximum Temperature +60°C | ||
Input Connector IEC 320-C8 | ||
Number of Outputs 1 | ||
Cable Length 900mm | ||
Medical Approved Yes | ||
Standards Met ANSI/AAMI ES60601-1, CEC2008, CSA 22.2 No. 60601-1, EISA 2007, EN 55011/22, EN 60601-1, EN 60601-1-2, EN 60950, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, MIL-HDBK-217F, PSE Certified, UL 60950 | ||
MTBF 153kh | ||
Efficiency 92% | ||
Series AHM | ||
Line Regulation Range ±1.5% | ||
Minimum Temperature 0°C | ||
Energy Efficiency Level V | ||
