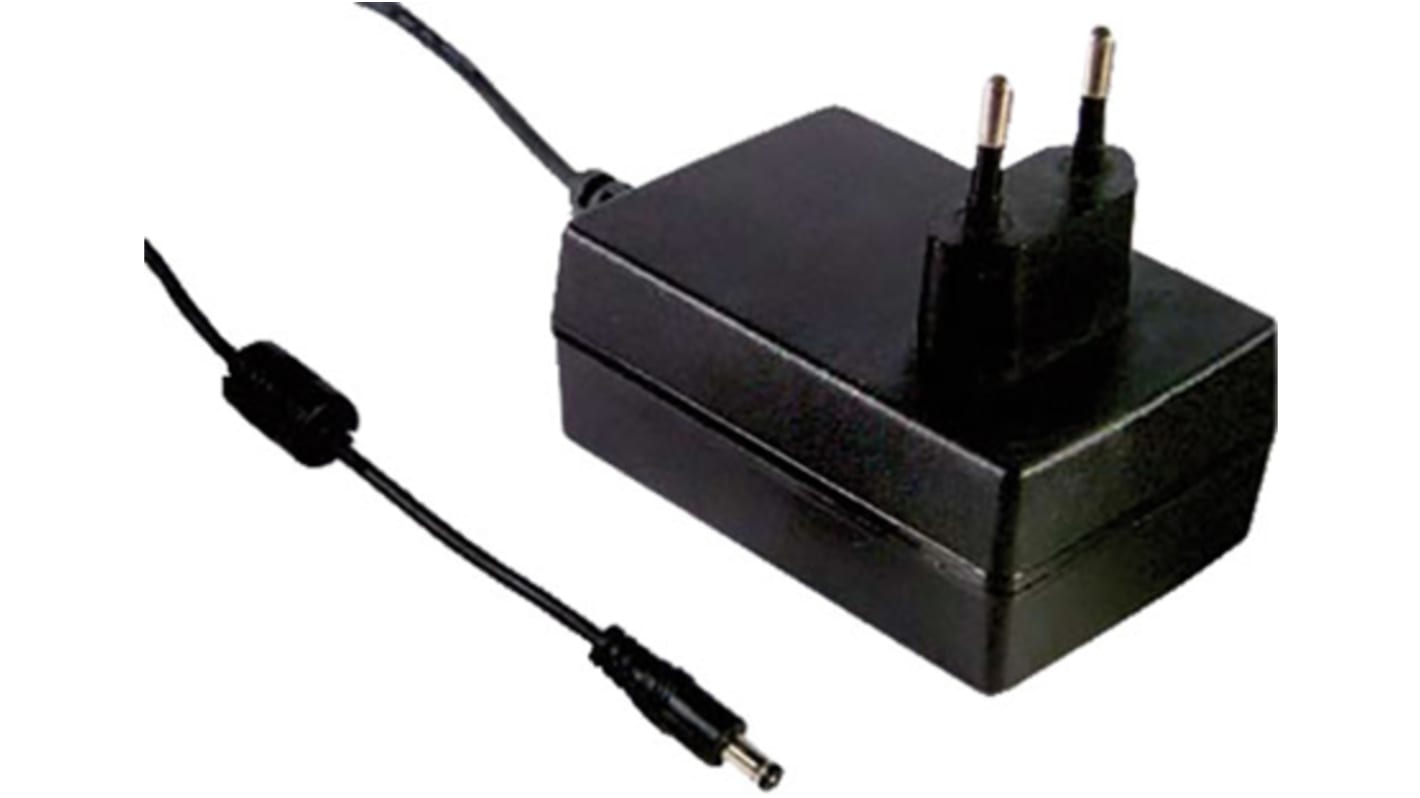

MEAN WELL 22W Plug-In AC/DC Adapter 7.5V dc Output, 2.93A Output
- RS Stock No.:
- 117-6176
- Mfr. Part No.:
- GST25E07-P1J
- Brand:
- MEAN WELL
11 In stock - FREE next working day delivery available
Added
Price Each
£13.10
(exc. VAT)
£15.72
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £13.10 |
| 5 - 9 | £12.71 |
| 10 - 24 | £12.32 |
| 25 - 49 | £11.93 |
| 50 + | £11.53 |
- RS Stock No.:
- 117-6176
- Mfr. Part No.:
- GST25E07-P1J
- Brand:
- MEAN WELL
Technical Reference
Legislation and Compliance
Product Details
Mean Well GST25E Series Plug-In Power Supply
Mean Well GST25E series of industrial 25 W power supplies offer a highly reliable desktop styled solution to a wide variety of power management solutions. The GST25E series comes equipped with a 2 pole Euro AC inlet, allowing for an input range of 85 V ac to 264 V ac. This series of power supplies boast an efficiency rating of up to 89%, coupled with an extremely low no-load consumption rating of below 0.075 W.
The Mean Well GST25E series is a series of power supplies well suited for both consumer & industrial power solutions.
The Mean Well GST25E series is a series of power supplies well suited for both consumer & industrial power solutions.
Features and Benefits
•Level VI energy efficiency rating.
•2 pole Euro plug.
•Class 2 power with earth pin.
•Fully enclosed casing, constructed to adhere to 94V-0 flame retardant standards.
•Equipped with industry standard protection, such as short circuit, overload & over voltage.
•LED indication of power status.
•Operating temperature of up to +70°C.
Typical Applications
•Industrial equipment.
•Telecoms devices.
•Office facilities.
•Consumer electronic devices.
•Level VI energy efficiency rating.
•2 pole Euro plug.
•Class 2 power with earth pin.
•Fully enclosed casing, constructed to adhere to 94V-0 flame retardant standards.
•Equipped with industry standard protection, such as short circuit, overload & over voltage.
•LED indication of power status.
•Operating temperature of up to +70°C.
Typical Applications
•Industrial equipment.
•Telecoms devices.
•Office facilities.
•Consumer electronic devices.
Standards
EU ErP & CoC V.5.
Mean Well Plug-In Power Supply
Specifications
Attribute | Value |
|---|---|
| Adapter Type | Plug-In Adapter |
| Plug Type | Type C |
| Output Voltage | 7.5V dc |
| Input Voltage | 100 V ac, 110 V ac, 115 V ac, 120 V ac, 127 V ac, 220 V ac, 230 V ac, 240V ac |
| Output Current | 2.93A |
| Maximum Temperature | +70°C |
| Output Connector | 2.1 x 5.5 x 11 mm Centre Positive |
| Input Connector | EU Plug |
| Number of Outputs | 1 |
| Power Rating | 22W |
| Cable Length | 1m |
| Standards Met | CB, CE, EN 55022 Class B, EN 61000-3-2,3, EN 61000-4-2,3,4,5,6,8,11, GS, MIL-HDBK-217F, TUV EN 60950-1, VI |
| MTBF | 500kh |
| Type | AC/DC Adapter |
| Depth | 33mm |
| Minimum Temperature | -30°C |
| Length | 79mm |
| Series | GST25E |
| Load Regulation | ±5% |
| Width | 54mm |
