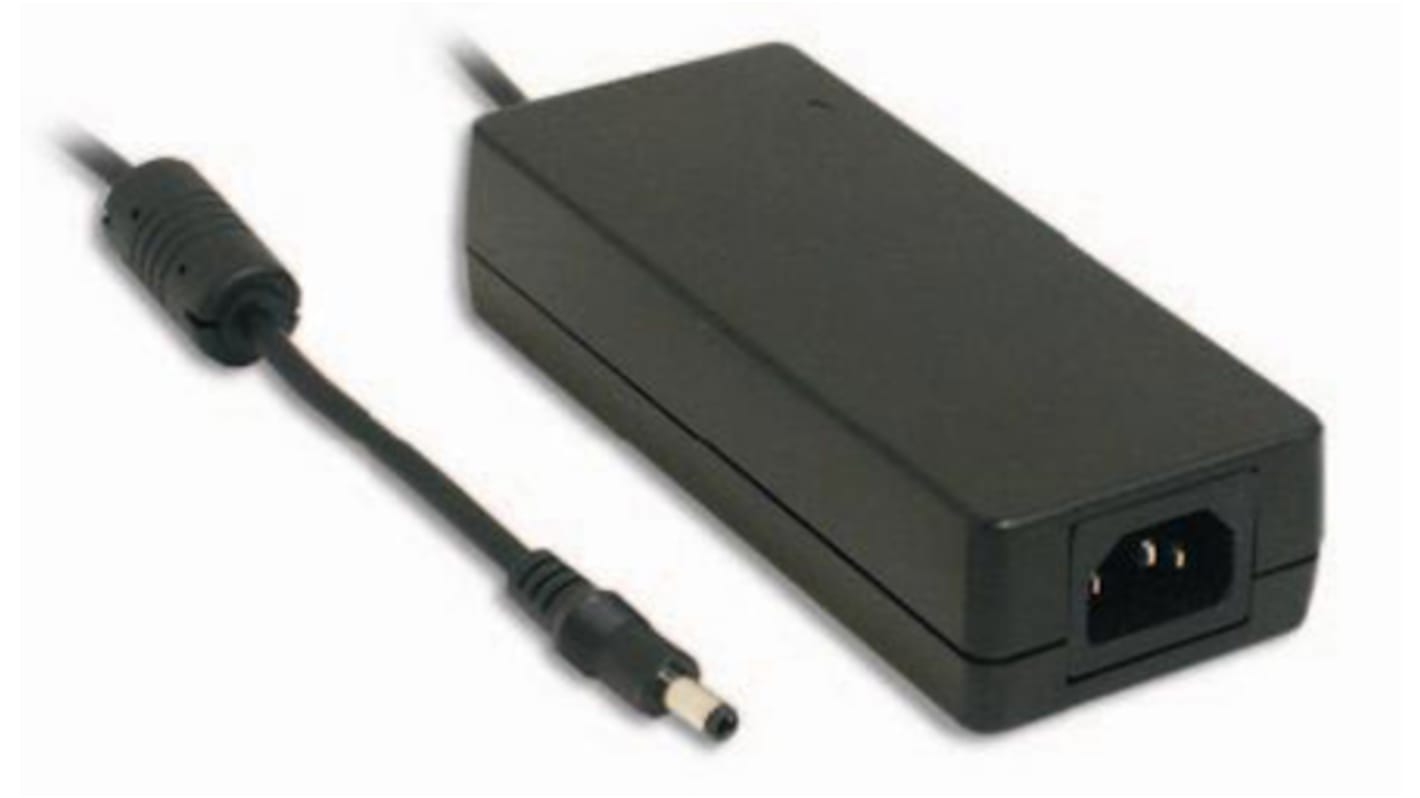

MEAN WELL 144W Power Brick AC/DC Adapter 15V dc Output, 0 → 9.6A Output
- RS Stock No.:
- 117-6150
- Mfr. Part No.:
- GST160A15-R7B
- Brand:
- MEAN WELL
7 In stock - FREE next working day delivery available
Added
Price Each
£91.56
(exc. VAT)
£109.87
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £91.56 |
| 5 - 9 | £86.98 |
| 10 - 24 | £82.40 |
| 25 - 49 | £77.82 |
| 50 + | £74.89 |
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 117-6150
- Mfr. Part No.:
- GST160A15-R7B
- Brand:
- MEAN WELL
Technical Reference
Legislation and Compliance
Product Details
Mean Well GST160A Series Desktop Power Supply
Mean Well GST160A series of industrial 160 W power supplies offer a highly reliable desktop styled solution to a wide variety of power management solutions. The GST160A series comes equipped with a 3 pole IEC320-C14 AC inlet, allowing for an input range of 85 V ac to 264 V ac. This series of power supplies boast an efficiency rating of up to 94%, coupled with an extremely low no-load consumption rating of below 0.015 W.
The Mean Well GST160A series is a series of power supplies well suited for both consumer & industrial power solutions.
The Mean Well GST160A series is a series of power supplies well suited for both consumer & industrial power solutions.
Features and Benefits
•Level VI energy efficiency rating.
•3 pole AC inlet IEC320-C14.
•Class 1 power with earth pin.
•Fully enclosed casing, constructed to adhere to 94V-0 flame retardant standards.
•Equipped with industry standard protection, such as short circuit, overload, over voltage & over temperature.
•LED indication of power status.
•Fanless design supports a working temperature range of -30 to +70°C.
Typical Applications
•Industrial equipment.
•Telecoms devices.
•Office facilities.
•Consumer electronic devices.
•Level VI energy efficiency rating.
•3 pole AC inlet IEC320-C14.
•Class 1 power with earth pin.
•Fully enclosed casing, constructed to adhere to 94V-0 flame retardant standards.
•Equipped with industry standard protection, such as short circuit, overload, over voltage & over temperature.
•LED indication of power status.
•Fanless design supports a working temperature range of -30 to +70°C.
Typical Applications
•Industrial equipment.
•Telecoms devices.
•Office facilities.
•Consumer electronic devices.
Standards
EISA 2007 / DoE, NRCan, AU/NZ MEPS, EU ErP & CoC V.5.
Specifications
Attribute | Value |
|---|---|
| Adapter Type | Power Brick Adapter |
| Output Voltage | 15V dc |
| Input Voltage | 80 → 264V ac |
| Output Current | 0 → 9.6A |
| Maximum Temperature | +70°C |
| Output Connector | DC Plug |
| Input Connector | IEC 320-C14 |
| Number of Outputs | 1 |
| Power Rating | 144W |
| Cable Length | 1200mm |
| Better World Verification | UL Energy Verified |
| MTBF | 236.4kh |
| Efficiency | 91% |
| Better World Product | Yes |
| Minimum Temperature | -30°C |
| Series | GST160A |
| Line Regulation Range | -1 → +1% |
| Energy Efficiency Level | VI |
| Depth | 35mm |
| Width | 72mm |
| Load Regulation | -5 → +5% |
| Length | 175mm |
