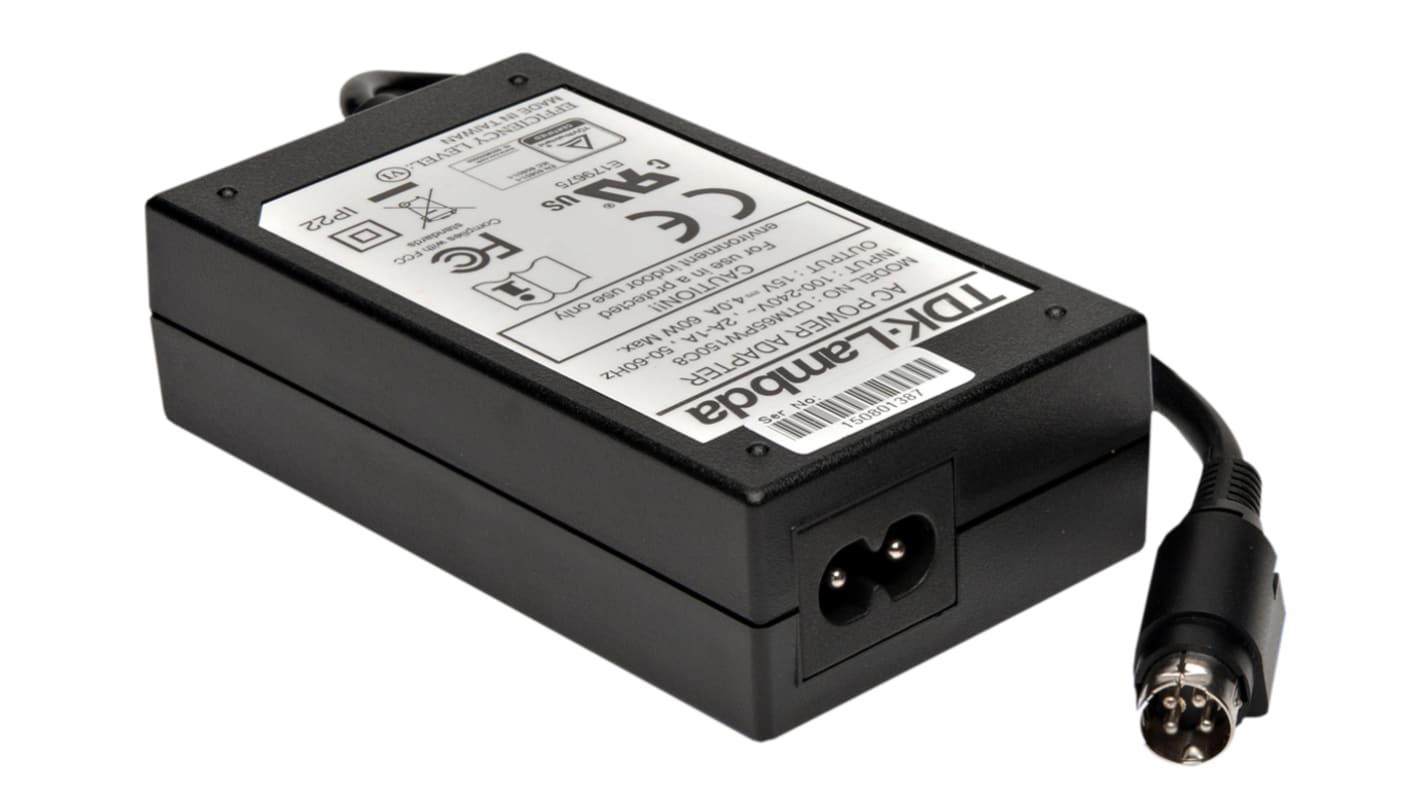

TDK-Lambda 65 W Power Adapter AC/DC Adapter C8 12V dc Output, 5 A
- RS Stock No.:
- 106-5933
- Mfr. Part No.:
- DTM-65PW-120-C8
- Brand:
- TDK-Lambda
Bulk discount available
Subtotal (1 unit)*
£78.33
(exc. VAT)
£94.00
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 24 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £78.33 |
| 5 - 9 | £75.96 |
| 10 - 24 | £73.62 |
| 25 - 49 | £71.28 |
| 50 + | £68.93 |
*price indicative
- RS Stock No.:
- 106-5933
- Mfr. Part No.:
- DTM-65PW-120-C8
- Brand:
- TDK-Lambda
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TDK-Lambda | |
| Sub Type | Power Adapter | |
| Product Type | AC/DC Adapter | |
| Plug Type | C8 | |
| Output Voltage | 12V dc | |
| Output Connector Type | KPPx-4P | |
| Power | 65W | |
| Cable Length | 1050mm | |
| Number of Outputs | 1 | |
| Minimum Operating Temperature | 0°C | |
| Input Connector Type | IEC 320-C8 | |
| Adapter Current | 5A | |
| Maximum Operating Temperature | 60°C | |
| Length | 106mm | |
| Depth | 31mm | |
| Standards/Approvals | CE, EN 60601-1, IEC 60601-1, UL 60601-1 | |
| Width | 60mm | |
| Efficiency | 88% | |
| Maximum Input Voltage | 264V ac | |
| Minimum Input Voltage | 85V ac | |
| Energy Efficiency Level | VI | |
| Load Regulation | ±5 % | |
| Series | DTM65-C8 | |
| Select all | ||
|---|---|---|
Brand TDK-Lambda | ||
Sub Type Power Adapter | ||
Product Type AC/DC Adapter | ||
Plug Type C8 | ||
Output Voltage 12V dc | ||
Output Connector Type KPPx-4P | ||
Power 65W | ||
Cable Length 1050mm | ||
Number of Outputs 1 | ||
Minimum Operating Temperature 0°C | ||
Input Connector Type IEC 320-C8 | ||
Adapter Current 5A | ||
Maximum Operating Temperature 60°C | ||
Length 106mm | ||
Depth 31mm | ||
Standards/Approvals CE, EN 60601-1, IEC 60601-1, UL 60601-1 | ||
Width 60mm | ||
Efficiency 88% | ||
Maximum Input Voltage 264V ac | ||
Minimum Input Voltage 85V ac | ||
Energy Efficiency Level VI | ||
Load Regulation ±5 % | ||
Series DTM65-C8 | ||
- COO (Country of Origin):
- TW
TDK Lambda DTM65-PW Series 40 W to 60 W Medical Approved Desktop Power Supply
The DTM65-C8 series has been designed to offer a rugged power supply for use in the medical industry. With a wide input voltage rating and a selection of output voltages, these units are versatile and extremely energy efficient. The 12 V and 24 V version both comply with the new level VI energy efficiency standards reducing energy consumption and helping to reduce operational costs.
These units also have Class II operation (no earthing cable) making them ideally suited for home healthcare applications. They are fitted with an industry standard 4-pin DIN Connector making them compatible with most systems.
Potential Applications
Medical
Industrial computing
Life sciences/laboratory
Features
CEC and EISA compliant
Easier system compliance
Wide range AC input
Global operation
87% average efficiency
Consumes less energy
Medical certifications
Switch Mode - TDK Lambda
