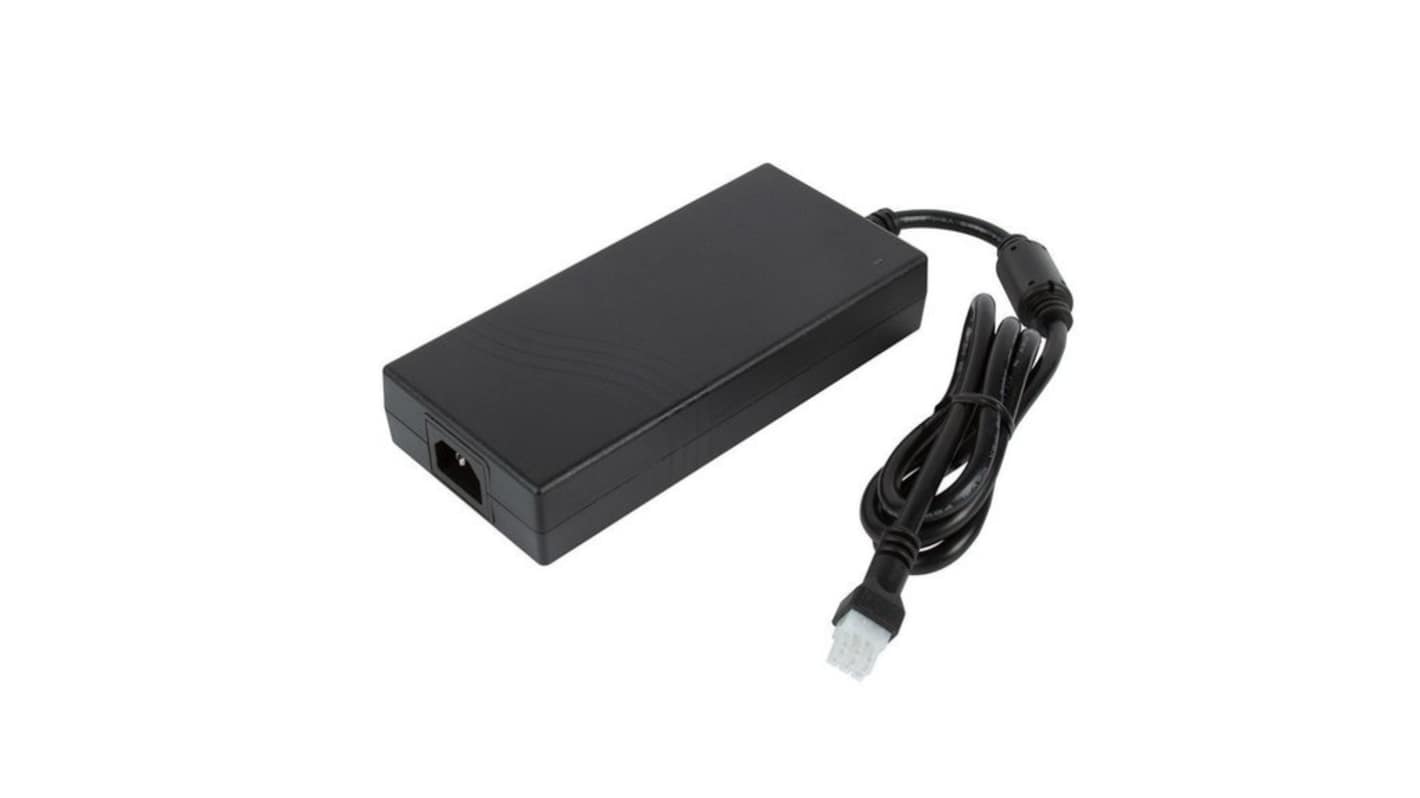

XP Power 300 W External Medical Power Supply AC/DC Adapter IEC 320 C14 48V Output, 3.5 A
- RS Stock No.:
- 516-802
- Mfr. Part No.:
- AQM300PS48C2
- Brand:
- XP Power
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 516-802
- Mfr. Part No.:
- AQM300PS48C2
- Brand:
- XP Power
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | XP Power | |
| Sub Type | External Medical Power Supply | |
| Product Type | AC/DC Adapter | |
| Plug Type | IEC 320 C14 | |
| Output Voltage | 48V | |
| Output Connector Type | 6 Pin Molex Mini Fit | |
| Power | 300W | |
| Cable Length | 1000mm | |
| Number of Outputs | 1 | |
| Input Connector Type | IEC 320-C18 | |
| Regulated/Unregulated | Regulated | |
| Minimum Operating Temperature | 0°C | |
| Adapter Current | 3.5A | |
| Maximum Operating Temperature | 60°C | |
| Width | 85mm | |
| Depth | 35mm | |
| Standards/Approvals | UL, UKCA, TUV, CSA, CE, CB (IEC60601111) | |
| Length | 183mm | |
| Efficiency | 0.938% | |
| Maximum Input Voltage | 264V ac | |
| Series | AQM300 | |
| Load Regulation | 5 % | |
| Energy Efficiency Level | VI | |
| Minimum Input Voltage | 85V ac | |
| Select all | ||
|---|---|---|
Brand XP Power | ||
Sub Type External Medical Power Supply | ||
Product Type AC/DC Adapter | ||
Plug Type IEC 320 C14 | ||
Output Voltage 48V | ||
Output Connector Type 6 Pin Molex Mini Fit | ||
Power 300W | ||
Cable Length 1000mm | ||
Number of Outputs 1 | ||
Input Connector Type IEC 320-C18 | ||
Regulated/Unregulated Regulated | ||
Minimum Operating Temperature 0°C | ||
Adapter Current 3.5A | ||
Maximum Operating Temperature 60°C | ||
Width 85mm | ||
Depth 35mm | ||
Standards/Approvals UL, UKCA, TUV, CSA, CE, CB (IEC60601111) | ||
Length 183mm | ||
Efficiency 0.938% | ||
Maximum Input Voltage 264V ac | ||
Series AQM300 | ||
Load Regulation 5 % | ||
Energy Efficiency Level VI | ||
Minimum Input Voltage 85V ac | ||
- COO (Country of Origin):
- CN
The XP Power Medical external power supplies offers extremely high power density and is fully approved to international medical safety standards. Designed for efficiency, it features very high energy conversion rates and low standby power consumption, ensuring compliance with the latest environmental regulations.
Medical Safety Approvals
Home Healthcare approval
