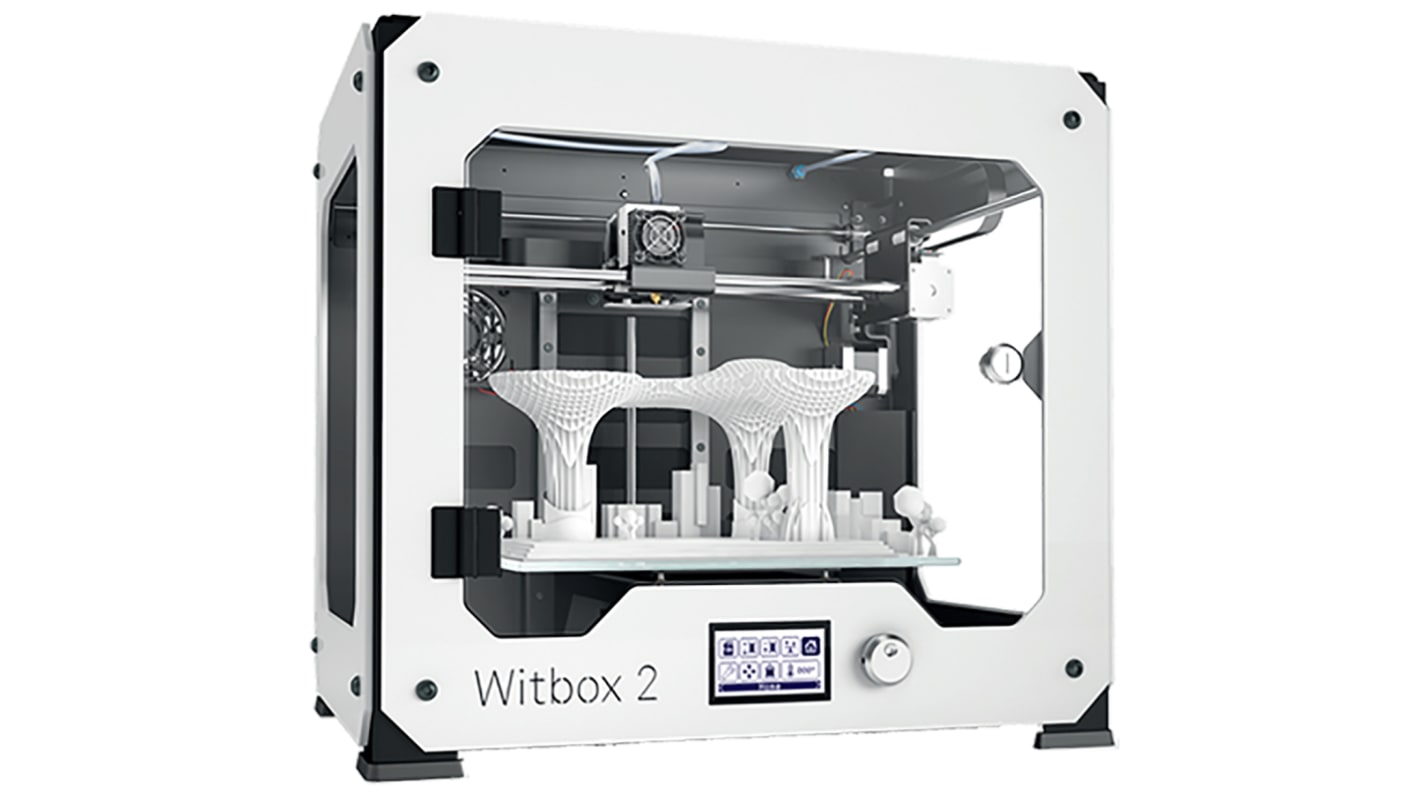

BQ Witbox 2 3D Printer

  • RS Stock No. 136-2732
  • Mfr. Part No. D000020
  • Brand BQ
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): ES
Product Details

bq Witbox 2 3D Printer

To create flawless results with the Witbox 2 the extruder must always work at a specific distance from the bed. The Witbox 2 3D printer includes a new inductive sensor that measures this distance with utmost precision. The sensor is made of an electric coil that generates a magnetic field. When the bed moves closer to the field, the sensor detects it at a certain distance away and advises you once it has reached the correct position via a small red LED

• In-house designed extruder with a Double Drive Gear traction system
• 100% BQ electronics
• Self-levelling via an inductive sensor
• Print volume: (X) 297 x (Y) x 210 (Z) 200 mm
• Stackable

The BQ Zum CNC is a new circuit board which has been designed for the Witbox 2 printer by the BQ hardware team. This component allows a more fluid movement of the motors and offers improved heat dissipation

GENERAL MECHANICS
Powder-coated steel frame
Hard chrome bars for the X and Y axes
Lineal ball bearings for the X and Y axes
4-thread ball screw with direct coupling to motor on the Z axis
Rails and ball runners on the Z axis
Powder-coated steel supports and moving parts
A4 glass cold bed (305 x 220 mm)
3-point print bed levelling system with shock absorber
Rapid system for changing the print bed using neodymium magnets

BQ has designed and developed a new extruder for the Witbox 2 incorporating a Double Drive Gear traction system that provides optimal grip of the filament: applying pressure, the two gearwheels flawlessly slide the filament to the end of the Hot-End

Supplied with

Witbox 2 3D printer
Quick Start Guide and Warranty
Cold print bed
One set of two keys
One top panel and two side panels
USB cable
Power cable
Reel of 1.75 mm diameter PLA filament
Reel-holder
SD card (with preloaded 3D models)
Printed test piece
Four support legs for the printer
Maintenance kit: 5 PTFE tubes, 2 cleaning needles, a spatula, a metal bristle brush and 4 Allen keys of 1.5, 2, 2.5 mm and 4 mm
Carriage immobiliser for transportation

BQ 3D Printers

The BQ 3D Printer is the latest printer to deliver flawless results with the Witbox 2 plus the extruder works at a specific distance from the bed. The Witbox 2 3D printer includes a new inductive sensor that measures the distance with precision. The sensor is made of an electric coil that generates a magnetic field, designed and developed a new extruder for Witbox 2 incorporating a double drive gear traction system. The system provides an optimal grip of the filament, applying pressure, the two gearwheels slide the filament to the end of the hot-end.

Features and Benefits

• 100% BQ electronics
• 3-point print bed levelling system with shock absorber
• 4-thread ball screw with direct coupling to motor on the Z-axis
• A4 glass cold bed (305 x 220mm)
• Hard chrome bars for the X and Y axes and linear ball bearings for the X and Y axes
• Resolution up to 20 microsecond
• Maximum printing speed up to 200mm/s
• In-house designed extruder with a double drive gear traction system
• It allows a more fluid movement of the motors and offers improved heat dissipation
• Powder-coated steel frame
• Powder-coated steel supports and moving parts
• Print volume is (X) 297 x (Y) x 210 (Z) 200mm
• Rails and ball runners on the Z-axis
• Rapid system for changing the print bed using neodymium magnets
• Self-levelling via an inductive sensor
• Stackable

Applications

• 3D printing
• Industrial use

Certifications

• CC certified
• CE certified

Warning

  • 3D Printers should not be left to print unattended.
Specifications
Attribute Value
Technology FDM
Build Volume 297 x 210 x 200mm
Multi Material Printing No
Minimum Layer Height 0.02mm
Number of Heads 1
Dimensions L x W x H 508.06 x 393.38 x 461mm
Filament Diameter 1.75mm
Connectivity SD Card, USB
Model Witbox 2
Plug Type Type C - European Plug
Weight 31.1kg
5 In stock for FREE next working day delivery
Price Each
£ 1,631.90
(exc. VAT)
£ 1,958.28
(inc. VAT)
Units
Per unit
1 +
£1,631.90
