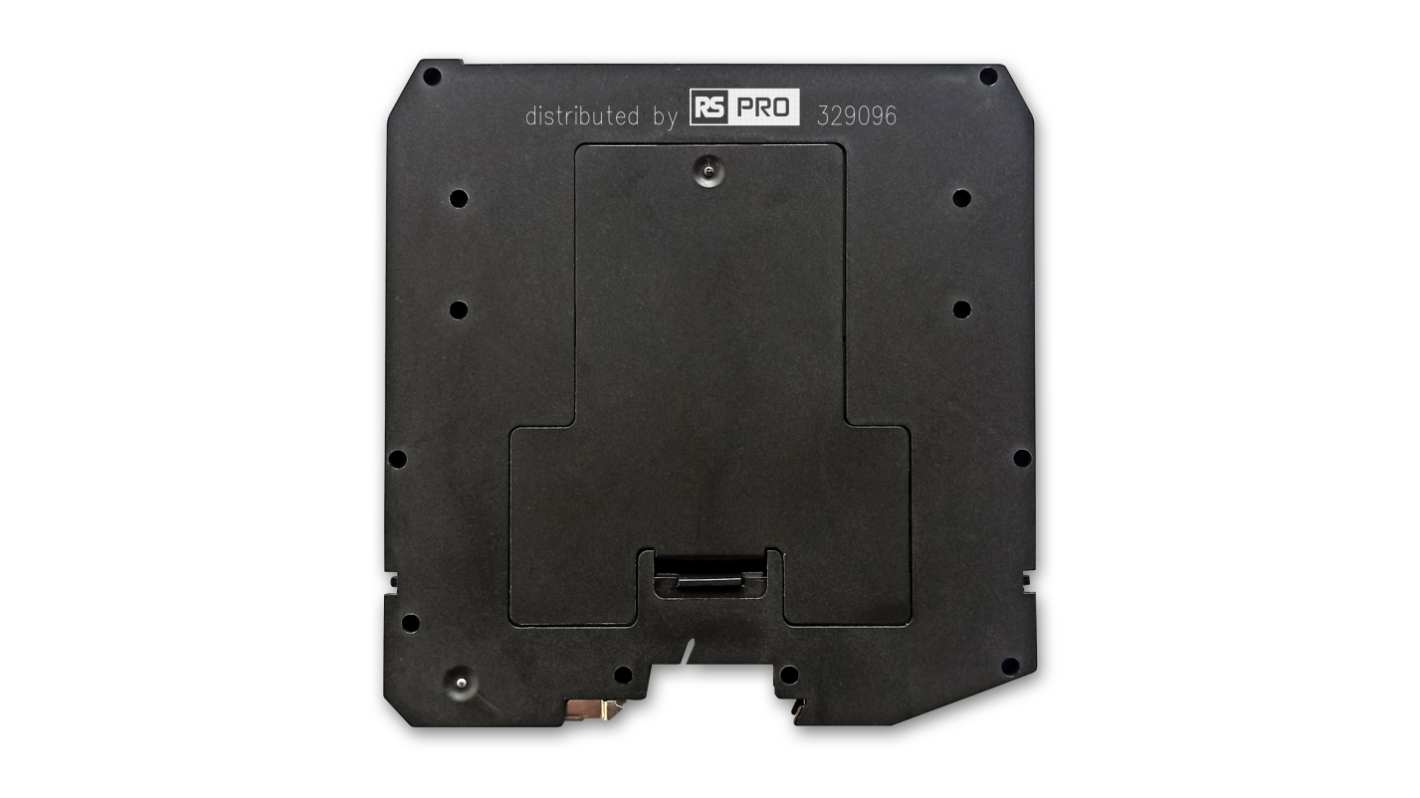

RS PRO 1 Channel Intrinsically Safe Isolator, Temperature Converter, Trip Amplifier, Temperature Input, Voltage Output,
- RS Stock No.:
- 329-096
- Brand:
- RS PRO
Subtotal (1 unit)*
£450.60
(exc. VAT)
£540.72
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 25 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £450.60 |
*price indicative
- RS Stock No.:
- 329-096
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Number of Channels | 1 | |
| Module Type | Temperature Converter, Trip Amplifier | |
| Barrier Type | Zener Barrier | |
| Output Signal Type | Voltage | |
| Maximum Voltage | 30V dc | |
| Interface | RS485 | |
| Hazardous Area Certification | SIL 2 | |
| Input Signal Type | Temperature | |
| Maximum Current | 72mA | |
| Maximum Operating Temperature | 70°C | |
| Minimum Operating Temperature | -40°C | |
| Supply Voltage | 24V dc | |
| Safety Current Maximum | 23mA | |
| Safety Voltage Maximum | 7.2V | |
| Operating Temperature Range | -40 → 70°C | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Number of Channels 1 | ||
Module Type Temperature Converter, Trip Amplifier | ||
Barrier Type Zener Barrier | ||
Output Signal Type Voltage | ||
Maximum Voltage 30V dc | ||
Interface RS485 | ||
Hazardous Area Certification SIL 2 | ||
Input Signal Type Temperature | ||
Maximum Current 72mA | ||
Maximum Operating Temperature 70°C | ||
Minimum Operating Temperature -40°C | ||
Supply Voltage 24V dc | ||
Safety Current Maximum 23mA | ||
Safety Voltage Maximum 7.2V | ||
Operating Temperature Range -40 → 70°C | ||
- COO (Country of Origin):
- IT
RS PRO Converter & Trip Amplifier, I.S. SIL2
The RS PRO Converter & Trip Amplifier is designed to accept low-level DC signals from millivolt, RTD, or potentiometer sensors located in hazardous areas. It converts these signals with isolation to drive a safe area load, making it ideal for high-risk industries requiring SIL 2 safety levels. The device supports both direct and reverse output signals and offers Modbus RTU RS-485 output for enhanced connectivity.
Features and Benefits
Two independent Trip Amplifiers: Provides reliable switching with SPDT relay contacts
Inversion/scaling/custom output: Offers flexibility in signal processing
Selectable CJC: Internal PT1000, external RTD, or fixed options for cold junction compensation
Burnout/internal/cjc/in sensor fault monitor: Ensures continuous operation and safety
Alarm output with user-settable trip points: Customisable alerts for critical conditions
Modbus RTU RS-485: Facilitates monitoring and configuration
Fully programmable operating parameters: Allows tailored operation to specific needs
High Accuracy, μP controlled A/D converter: Ensures precise signal conversion
Three port isolation: Enhances safety with Input/Output/Supply separation
Inversion/scaling/custom output: Offers flexibility in signal processing
Selectable CJC: Internal PT1000, external RTD, or fixed options for cold junction compensation
Burnout/internal/cjc/in sensor fault monitor: Ensures continuous operation and safety
Alarm output with user-settable trip points: Customisable alerts for critical conditions
Modbus RTU RS-485: Facilitates monitoring and configuration
Fully programmable operating parameters: Allows tailored operation to specific needs
High Accuracy, μP controlled A/D converter: Ensures precise signal conversion
Three port isolation: Enhances safety with Input/Output/Supply separation
Applications
High-risk industries
Safety-related systems
Hazardous area monitoring
Safety-related systems
Hazardous area monitoring
Additional Information
Hazardous Area Certification: Zone 2
