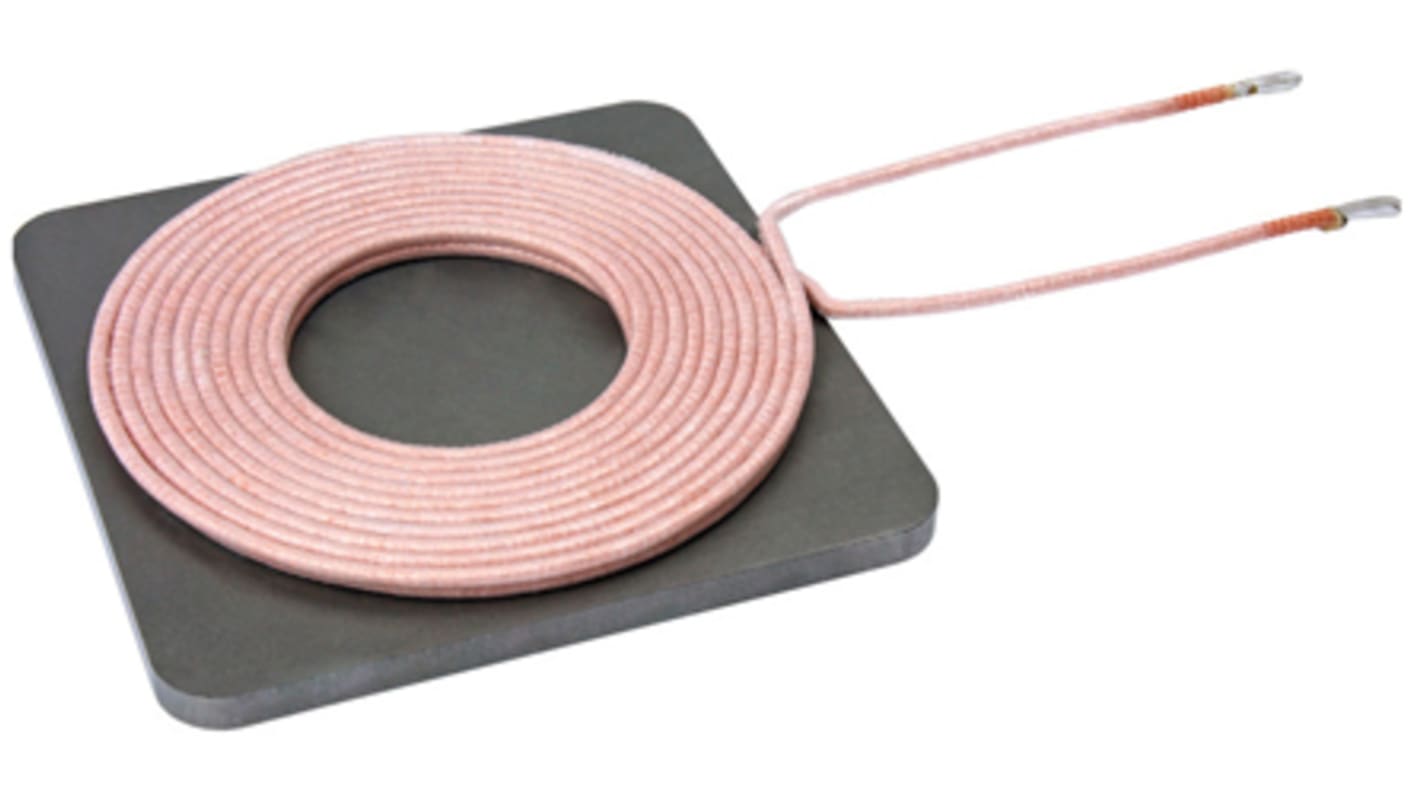

Vishay IWTX-4646BE-50 Wireless Charging Coil Transmitter 6A, 24 μH
- RS Stock No.:
- 173-1579
- Mfr. Part No.:
- IWTX4646BEEB240J50
- Brand:
- Vishay
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 173-1579
- Mfr. Part No.:
- IWTX4646BEEB240J50
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Inductance | 24 μH | |
| Function | Transmitter | |
| Maximum DC Current | 6A | |
| Maximum DC Resistance | 71mΩ | |
| Self Resonant Frequency | 7MHz | |
| Q Factor | 185 | |
| Series | IWTX-4646BE-50 | |
| Core Material | Ferrite Core | |
| Maximum Operating Temperature | +105°C | |
| Minimum Operating Temperature | -55°C | |
| Mounting Type | Radial | |
| Inductance Tolerance | ±5 % | |
| Dimensions | 46 x 46 x 5.26mm | |
| Height | 5.26mm | |
| Width | 46mm | |
| Length | 46mm | |
Select all | ||
|---|---|---|
Brand Vishay | ||
Inductance 24 μH | ||
Function Transmitter | ||
Maximum DC Current 6A | ||
Maximum DC Resistance 71mΩ | ||
Self Resonant Frequency 7MHz | ||
Q Factor 185 | ||
Series IWTX-4646BE-50 | ||
Core Material Ferrite Core | ||
Maximum Operating Temperature +105°C | ||
Minimum Operating Temperature -55°C | ||
Mounting Type Radial | ||
Inductance Tolerance ±5 % | ||
Dimensions 46 x 46 x 5.26mm | ||
Height 5.26mm | ||
Width 46mm | ||
Length 46mm | ||
- COO (Country of Origin):
- US
Vishay Wireless Charging Coil-IWTX Series
Vishay IWTX series wireless charging transmitter coils/ shields offer high permeability shielding for wireless charging. These wireless transmitters are of durable construction with high saturation powdered iron which is not affected by permanently located magnets.
Standards
AEC-Q200 qualified
RoHS compliant
RoHS compliant
