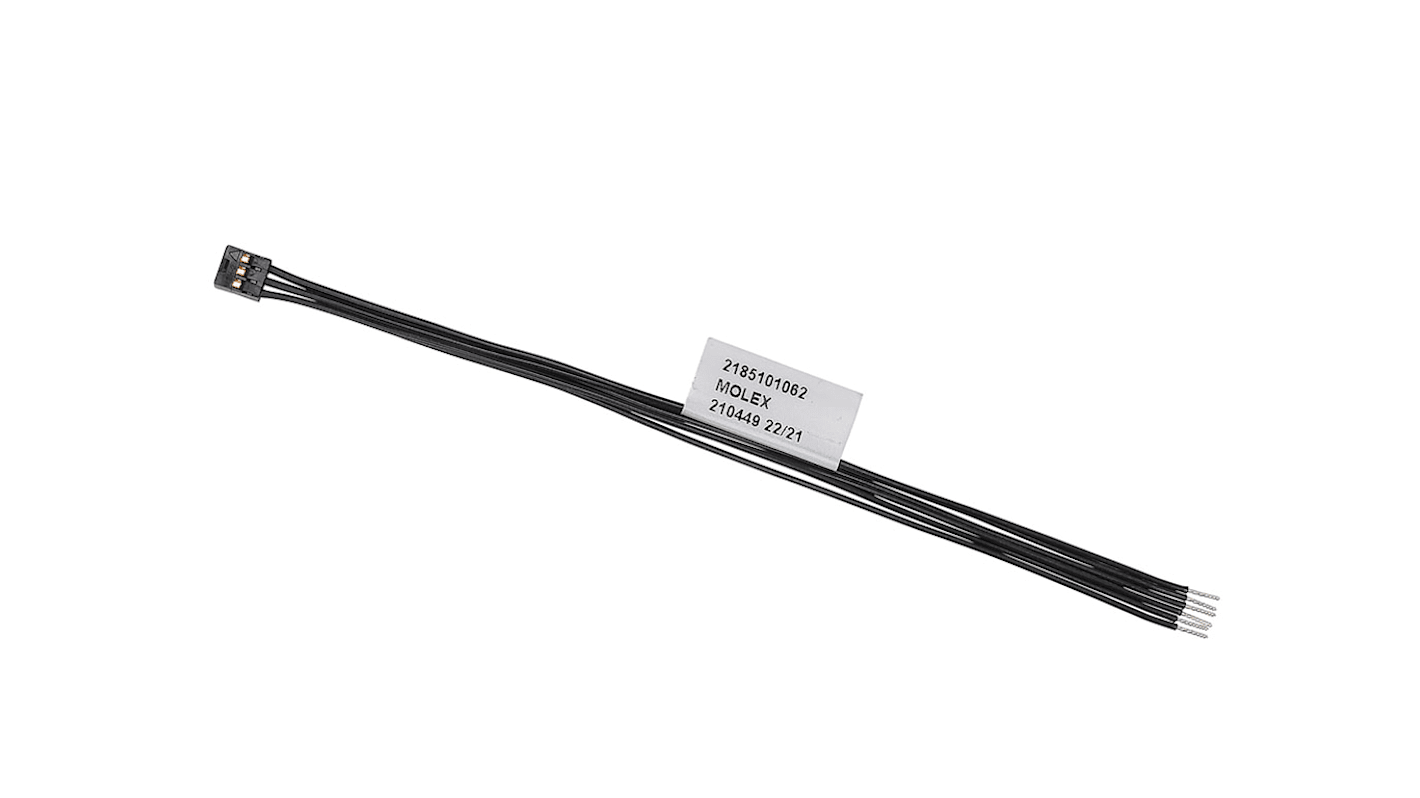

Molex 8 Way Female Milli-Grid Unterminated Wire to Board Cable, 50mm
- RS Stock No.:
- 235-6781
- Mfr. Part No.:
- 218510-1080
- Brand:
- Molex
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 235-6781
- Mfr. Part No.:
- 218510-1080
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Series | Milli-Grid | |
| Connector 1 | Milli-Grid | |
| Series Number | 218510 | |
| Connector 2 | Unterminated | |
| Connector 1 Gender | Female | |
| Connector 1 Number of Contacts | 8 | |
| Pitch | 2mm | |
| Sheath Colour | Black | |
| Cable Length | 50mm | |
| Voltage Rating | 125 V | |
| Current Rating | 2 A | |
| Cable Type | Round | |
| Connector 1 Number of Rows | 2 | |
| Contact Plating | Tin | |
| Operating Temperature Range | -10 → +105 °C | |
| Contact Material | Copper Alloy | |
Select all | ||
|---|---|---|
Brand Molex | ||
Series Milli-Grid | ||
Connector 1 Milli-Grid | ||
Series Number 218510 | ||
Connector 2 Unterminated | ||
Connector 1 Gender Female | ||
Connector 1 Number of Contacts 8 | ||
Pitch 2mm | ||
Sheath Colour Black | ||
Cable Length 50mm | ||
Voltage Rating 125 V | ||
Current Rating 2 A | ||
Cable Type Round | ||
Connector 1 Number of Rows 2 | ||
Contact Plating Tin | ||
Operating Temperature Range -10 → +105 °C | ||
Contact Material Copper Alloy | ||
- COO (Country of Origin):
- TH
The Molex Milli-Grid female to pigtail Off-the-shelf discrete wire assembly is connector systems based on a 2.00 by 2.00mm grid pattern and provide design flexibility for wire-to-board, board-to-board and cable-to-board applications. This wire assembly has 24 AWG cable with 1.40mm insulation diameter.
Cable length 50 mm
Housing polyester
Contact copper alloy
Plating matte tin
Locks to mating part
Termination Interface crimp or compression
Operating temperature from -10 to +105°C
Housing polyester
Contact copper alloy
Plating matte tin
Locks to mating part
Termination Interface crimp or compression
Operating temperature from -10 to +105°C
