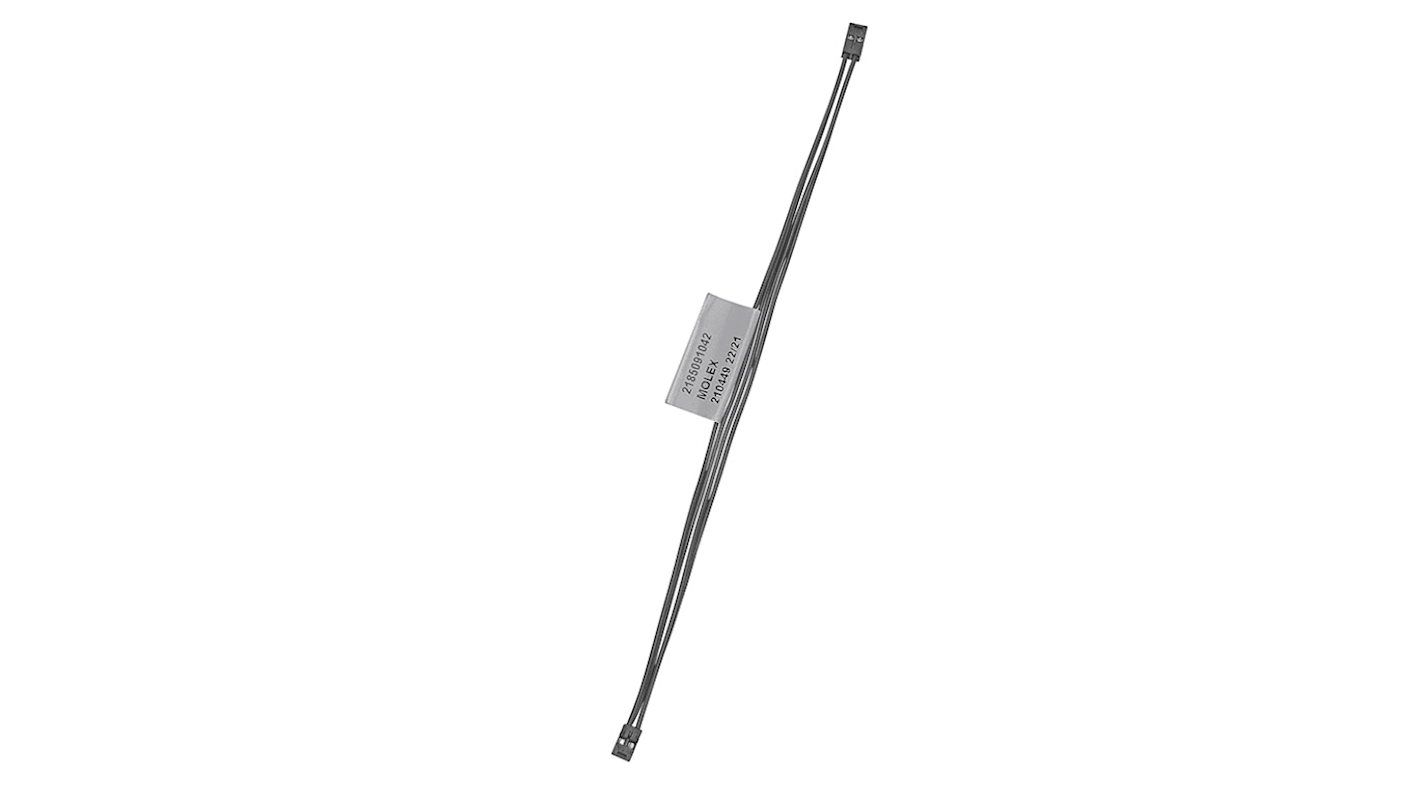

Molex 4 Way Female Milli-Grid to 4 Way Female Milli-Grid Wire to Board Cable, 600mm
- RS Stock No.:
- 235-6728
- Mfr. Part No.:
- 218509-1044
- Brand:
- Molex
Bulk discount available
Subtotal (1 bag of 25 units)*
£73.125
(exc. VAT)
£87.75
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 25 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 25 - 100 | £2.925 | £73.13 |
| 125 - 225 | £2.659 | £66.48 |
| 250 + | £2.436 | £60.90 |
*price indicative
- RS Stock No.:
- 235-6728
- Mfr. Part No.:
- 218509-1044
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Connector 1 | Milli-Grid | |
| Series | Milli-Grid | |
| Connector 2 | Milli-Grid | |
| Series Number | 218509 | |
| Connector 1 Gender | Female | |
| Connector 2 Gender | Female | |
| Connector 1 Number of Contacts | 4 | |
| Connector 2 Number of Contacts | 4 | |
| Pitch | 2mm | |
| Sheath Colour | Black | |
| Cable Length | 600mm | |
| Voltage Rating | 125 V | |
| Current Rating | 2 A | |
| Cable Type | Round | |
| Contact Material | Copper Alloy | |
| Operating Temperature Range | -10 → +105 °C | |
| Connector 1 Number of Rows | 2 | |
| Contact Plating | Tin | |
| Connector 2 Number of Rows | 2 | |
Select all | ||
|---|---|---|
Brand Molex | ||
Connector 1 Milli-Grid | ||
Series Milli-Grid | ||
Connector 2 Milli-Grid | ||
Series Number 218509 | ||
Connector 1 Gender Female | ||
Connector 2 Gender Female | ||
Connector 1 Number of Contacts 4 | ||
Connector 2 Number of Contacts 4 | ||
Pitch 2mm | ||
Sheath Colour Black | ||
Cable Length 600mm | ||
Voltage Rating 125 V | ||
Current Rating 2 A | ||
Cable Type Round | ||
Contact Material Copper Alloy | ||
Operating Temperature Range -10 → +105 °C | ||
Connector 1 Number of Rows 2 | ||
Contact Plating Tin | ||
Connector 2 Number of Rows 2 | ||
- COO (Country of Origin):
- TH
Molex Wire-to-Board Cable, 2A Current Rating, 2 Rows - Milli-Grid Series - 218509-1044
Make solid connections between devices and your PCB with this wire-to-board cable from Molex. Its standardised Milli-Grid connectors are highly compatible with housings, headers and other receptacles to make linking components a breeze. As the connectors lock to their mating part, you get a strong attachment. Copper-alloy contacts are on hand to deliver the strong signals needed for speedy performance. A voltage rating of 125V AC indicates this is the right fit for low-power systems.
Features & Benefits
• 2mm pitch makes wire installation easy
• 600mm cable length spans PCB boards to link components that are set apart
• Reliable in temperatures between -10°C and +105°C
• Matte tin contact plating resists corrosion for long-term performance in damp settings
• 600mm cable length spans PCB boards to link components that are set apart
• Reliable in temperatures between -10°C and +105°C
• Matte tin contact plating resists corrosion for long-term performance in damp settings
Applications
• Telecommunications networks
• Computer peripherals
• Server rooms
• Computer peripherals
• Server rooms
How heavy is this product?
Tipping the scales at only 5.948g, it's a lightweight choice that doesn't add excess strain to your setup.
