Molex 4 Way Female KK Plus 396 to 4 Way Female KK Plus 396 Wire to Board Cable, 75mm
- RS Stock No.:
- 191-8041
- Mfr. Part No.:
- 36921-0400
- Brand:
- Molex
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 191-8041
- Mfr. Part No.:
- 36921-0400
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Series | L1NK 396 | |
| Connector 1 | KK Plus 396 | |
| Connector 2 | KK Plus 396 | |
| Series Number | 36921 | |
| Connector 1 Gender | Female | |
| Connector 2 Gender | Female | |
| Connector 1 Number of Contacts | 4 | |
| Connector 2 Number of Contacts | 4 | |
| Connector 1 Housing Gender | Male | |
| Connector 2 Housing Gender | Male | |
| Pitch | 3.96mm | |
| Sheath Colour | Black | |
| Cable Length | 75mm | |
| Voltage Rating | 600 V dc | |
| Current Rating | 13 A | |
| Contact Plating | Tin | |
Select all | ||
|---|---|---|
Brand Molex | ||
Series L1NK 396 | ||
Connector 1 KK Plus 396 | ||
Connector 2 KK Plus 396 | ||
Series Number 36921 | ||
Connector 1 Gender Female | ||
Connector 2 Gender Female | ||
Connector 1 Number of Contacts 4 | ||
Connector 2 Number of Contacts 4 | ||
Connector 1 Housing Gender Male | ||
Connector 2 Housing Gender Male | ||
Pitch 3.96mm | ||
Sheath Colour Black | ||
Cable Length 75mm | ||
Voltage Rating 600 V dc | ||
Current Rating 13 A | ||
Contact Plating Tin | ||
- COO (Country of Origin):
- IN

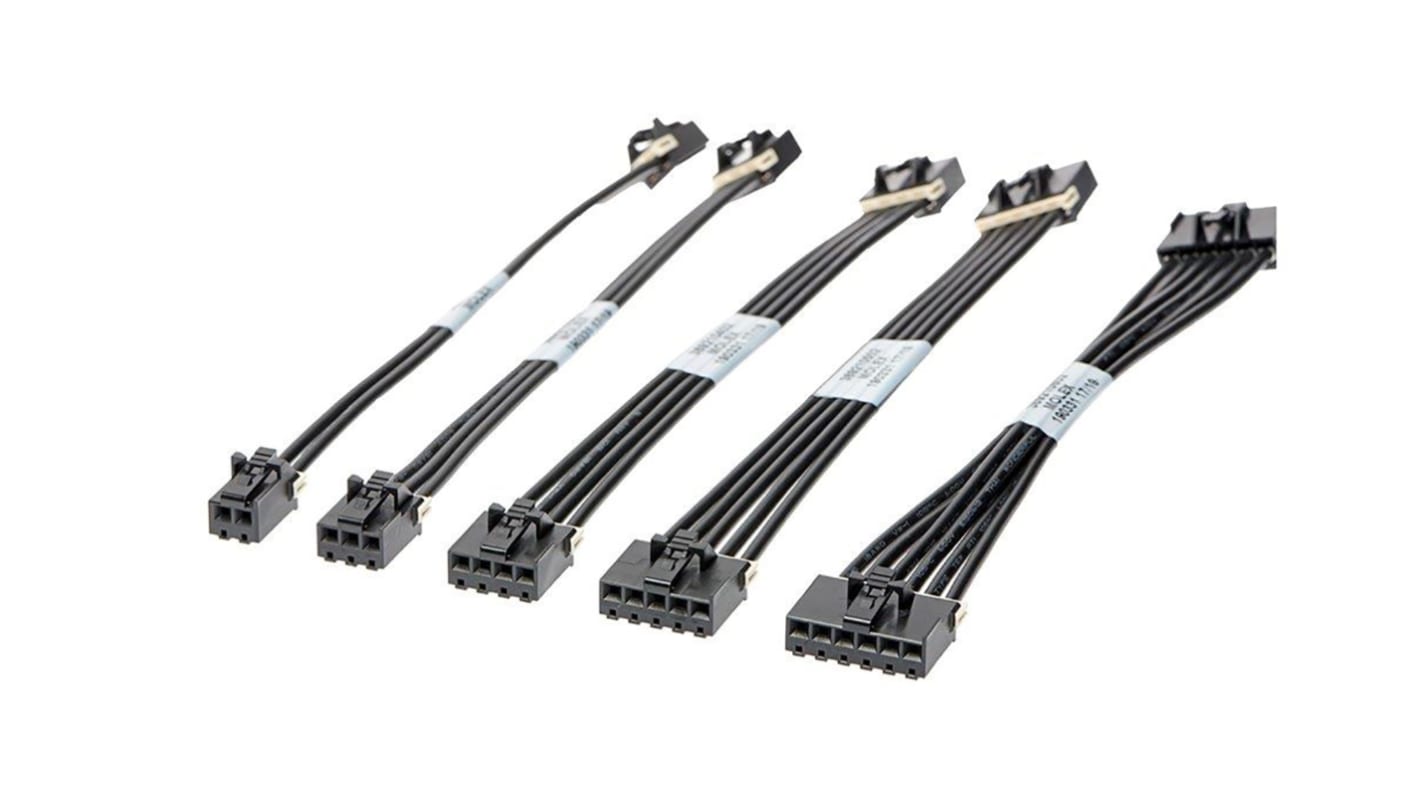

Molex Wire-to-Board Cable, 13A Maximum Current Per Contact, 3.96mm Pitch - KK Plus 396 Series - 36921-0400
Hook extra kit straight to your PCB with this wire-to-board cable from Molex. As a pre-built assembly, the connector's ready to slot into a header (187-9992) so you can fly through set-up. Thanks to its tin-plated copper alloy contacts, it resists corrosion to maintain reliable connections. An industry-standard 3.96mm pitch makes it widely compatible and maintains a safe distance between conductors. As it connects with a click, you can be sure that this cable is properly mated.
Features & Benefits
• Hard-wearing nylon body resists knocks and scrapes
• Cable length of just 75mm so it tucks into tight spots
• Four-way design lets you connect multiple circuits at once
• Crimped connectors for a reliable hold against heavy handling
• Cable length of just 75mm so it tucks into tight spots
• Four-way design lets you connect multiple circuits at once
• Crimped connectors for a reliable hold against heavy handling
Applications
• Consumer electronics
• Medical equipment
• Pharmaceutical industry
• Process control
• Medical equipment
• Pharmaceutical industry
• Process control
Can I use this cable in moving equipment?
Yes, this cord locks to its mating connector, so it holds its ground against movement.
