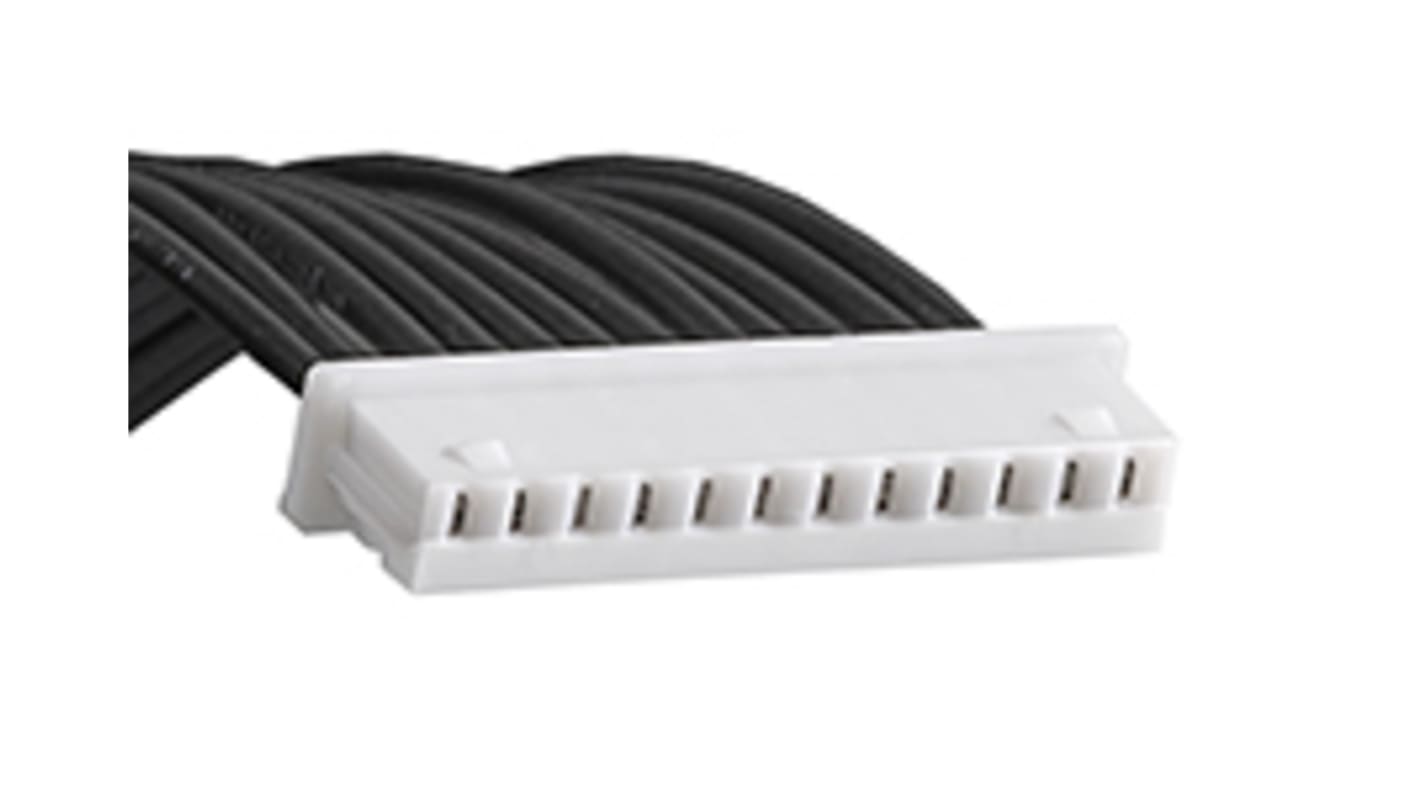

Molex 12 Way Female PicoBlade to 12 Way Female PicoBlade Wire to Board Cable, 100mm
- RS Stock No.:
- 172-0094
- Mfr. Part No.:
- 15134-1201
- Brand:
- Molex
Bulk discount available
Subtotal (1 bag of 50 units)*
£258.80
(exc. VAT)
£310.55
(inc. VAT)
Stock information currently inaccessible
Units | Per unit | Per Bag* |
|---|---|---|
| 50 - 200 | £5.176 | £258.80 |
| 250 - 450 | £4.071 | £203.55 |
| 500 + | £3.908 | £195.40 |
*price indicative
- RS Stock No.:
- 172-0094
- Mfr. Part No.:
- 15134-1201
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Connector 1 | PicoBlade | |
| Series | PicoBlade | |
| Series Number | 15134 | |
| Connector 2 | PicoBlade | |
| Connector 1 Gender | Female | |
| Connector 2 Gender | Female | |
| Connector 1 Number of Contacts | 12 | |
| Connector 2 Number of Contacts | 12 | |
| Connector 1 Housing Gender | Male | |
| Connector 2 Housing Gender | Male | |
| Pitch | 1.25mm | |
| Sheath Colour | Black | |
| Cable Length | 100mm | |
| Voltage Rating | 125 V | |
| Current Rating | 1 A | |
| Contact Plating | Tin | |
| Operating Temperature Range | -40 → +85 °C | |
Select all | ||
|---|---|---|
Brand Molex | ||
Connector 1 PicoBlade | ||
Series PicoBlade | ||
Series Number 15134 | ||
Connector 2 PicoBlade | ||
Connector 1 Gender Female | ||
Connector 2 Gender Female | ||
Connector 1 Number of Contacts 12 | ||
Connector 2 Number of Contacts 12 | ||
Connector 1 Housing Gender Male | ||
Connector 2 Housing Gender Male | ||
Pitch 1.25mm | ||
Sheath Colour Black | ||
Cable Length 100mm | ||
Voltage Rating 125 V | ||
Current Rating 1 A | ||
Contact Plating Tin | ||
Operating Temperature Range -40 → +85 °C | ||
- COO (Country of Origin):
- CN
Standard Discrete Cable Assemblies deliver off-the-shelf solutions with a broad offering of Molex connectors and a variety of cable lengths to facilitate both prototyping and global production
