- RS Stock No.:
- 161-7483
- Mfr. Part No.:
- 15134-0205
- Brand:
- Molex
200 In stock - FREE next working day delivery available
Price Each (In a Bag of 500)
£2.091
(exc. VAT)
£2.509
(inc. VAT)
Units | Per unit | Per Bag* |
---|---|---|
500 + | £2.091 | £1,045.50 |
*price indicative
- RS Stock No.:
- 161-7483
- Mfr. Part No.:
- 15134-0205
- Brand:
- Molex
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

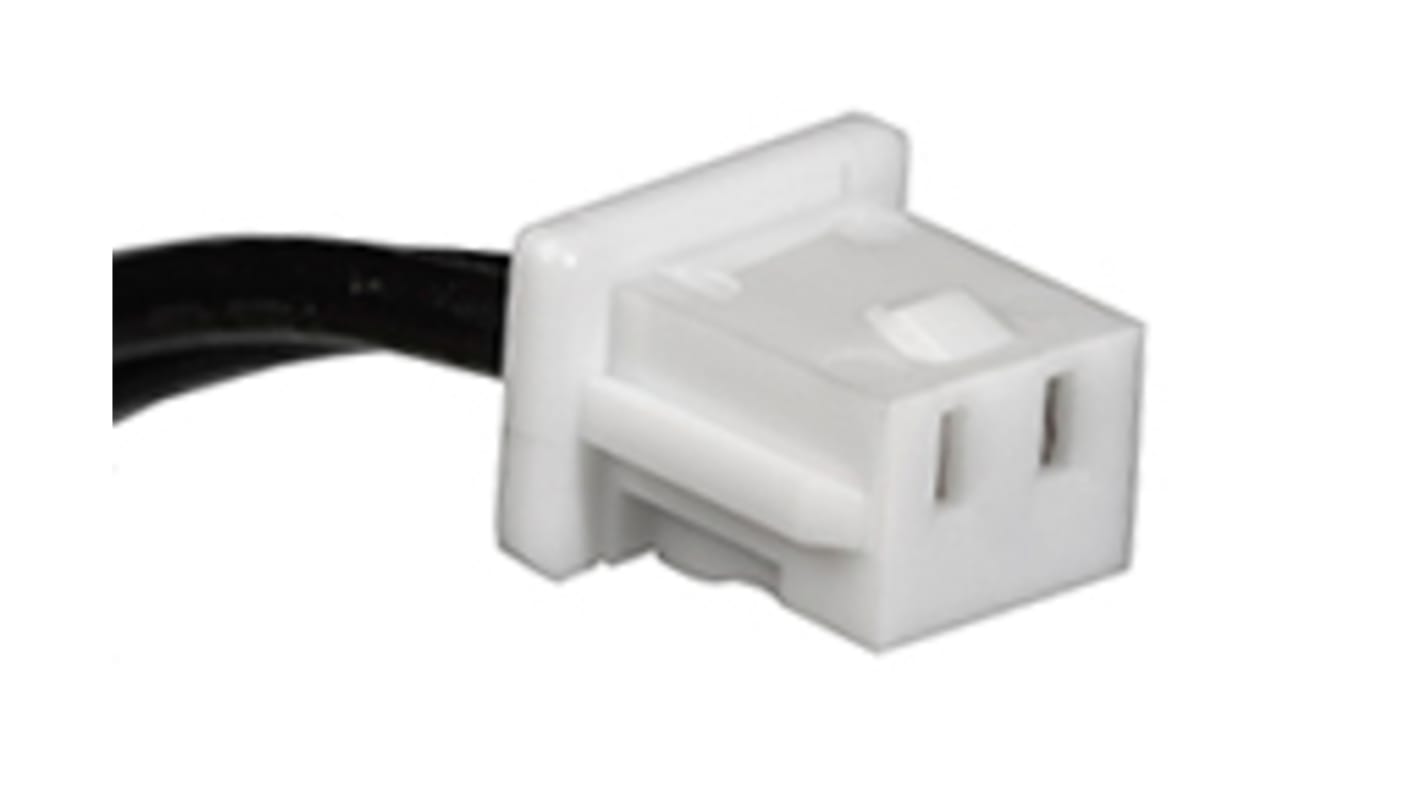

Molex Wire-to-Board Cable, 1A Current Rating, Black Sheath - PicoBlade 15134 Series - 15134-0205
When it comes to connecting circuits in your PCB setup, this wire-to-board cable from Molex is the missing link. Tin contact plating provides good electrical conductivity, minimising signal loss and maximising efficiency. The unit's phosphor bronze wiring protects against corrosion to enhance durability. Thanks to a high temperature tolerance of up to +85°C, this cable is a safe bet for use in challenging industrial conditions.
Features & Benefits
• Tips the scales at 1.8g so adds minimal weight to your system
• Voltage rating of 125V makes it compatible with commonly used equipment
• 28AWG to make the best use of available PCB space
• Voltage rating of 125V makes it compatible with commonly used equipment
• 28AWG to make the best use of available PCB space
Applications
• Consumer electronics
• Medical devices
• Telecommunications equipment
• Medical devices
• Telecommunications equipment
How long is this wire-to-board cable?
It's 450mm long, offering plenty of reach for use in larger-scale settings.
Specifications
Attribute | Value |
---|---|
Series | PicoBlade |
Connector 1 | PicoBlade |
Series Number | 15134 |
Connector 2 | PicoBlade |
Connector 1 Gender | Female |
Connector 2 Gender | Female |
Connector 1 Number of Contacts | 2 |
Connector 2 Number of Contacts | 2 |
Connector 1 Housing Gender | Female |
Connector 2 Housing Gender | Female |
Pitch | 1.25mm |
Sheath Colour | Black |
Cable Length | 450mm |
Voltage Rating | 125 V |
Current Rating | 1 A |
Operating Temperature Range | -40 → +85 °C |
Contact Plating | Tin |
