PicoBlade wire-to-board cable assemblies in a range of cable lengths terminated either end with a PicoBlade receptacle connector. These PicoBlade connector cable assemblies are constructed using UL1061 discrete wires to help make design, prototyping and production easier. The pin to pin single map configuration allows each signal to be assigned to a pin without having to design the cable layout. The PicoBlade receptacles have a single row, compact space saving design with a small 1.25 mm pitch. A friction lock on the connector ensures that the cable assembly is securely attached to the mating header preventing accidental unmating due to vibration or mishandling. These PicoBlade cable assemblies are designed for use with Series 53261, 53047, 53398 and 53048 PicoBlade wire to board PCB headers

• Constructed using UL1061 discrete wires for ease of design
• Pin to pin map configurations reduce the need for cable layout design
• Compact space saving connector design with a small 1.25 mm pitch
• Friction locks on connector housings for secure mating connection to header
• Available in a Range of cable lengths

Constructed using UL1061 discrete wires for ease of design
Pin to pin map configurations reduce the need for cable layout design
Compact space saving connector design with a small 1.25 mm pitch
Friction locks on connector housings for secure mating connection to header
Available in a Range of cable lengths

These PicoBlade wire-to-board cable assemblies are ideal for use in Prototype design and global application. Applications include home entertainment, home appliances and mobile devices, commercial vehicles, industrial process controls and medical.

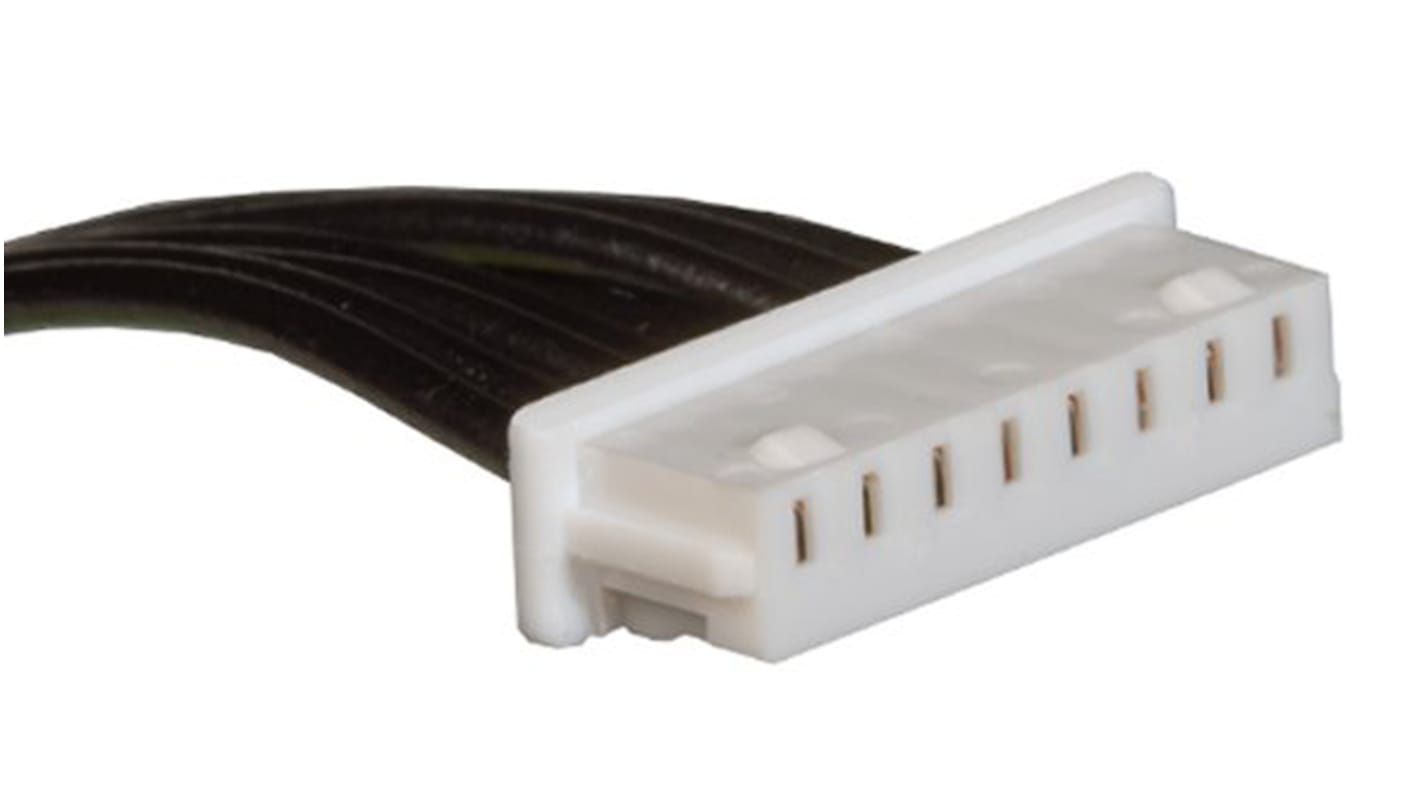

This wire to board cable by Molex features 8 pins and part of the popular PicoBlade series, offers high-quality connectivity solutions for a range of applications. With a tin-plated connector and high-temperature capabilities, this cable is designed to meet your electrical needs efficiently and reliably.

• Reliable connectivity with 8-pin wire to board cable
• Tin-plated for enhanced durability and conductivity
• High-temperature resistance for versatility in various environments
• 1.25mm pitch for precise and secure connections
• Molex black sheath for added protection and aesthetics
• 125V voltage rating for safe and efficient operation

• Ideal for use in home entertainment systems
• Suitable for home appliances and gaming consoles
• Can be used for mobile devices and commercial vehicles
• Essential for process controls and medical equipment

Yes, it's designed for industrial environments with robust construction and reliable performance.

Yes, it's engineered to be compatible with various mobile devices for versatility.

Yes, the cable length can be tailored to fit specific application requirements.

It ensures secure connections through a reliable locking mechanism for peace of mind.

The key benefits include reliability in harsh conditions, durability, and ease of installation.

1.25mm Wire to Board - Molex PicoBlade™
