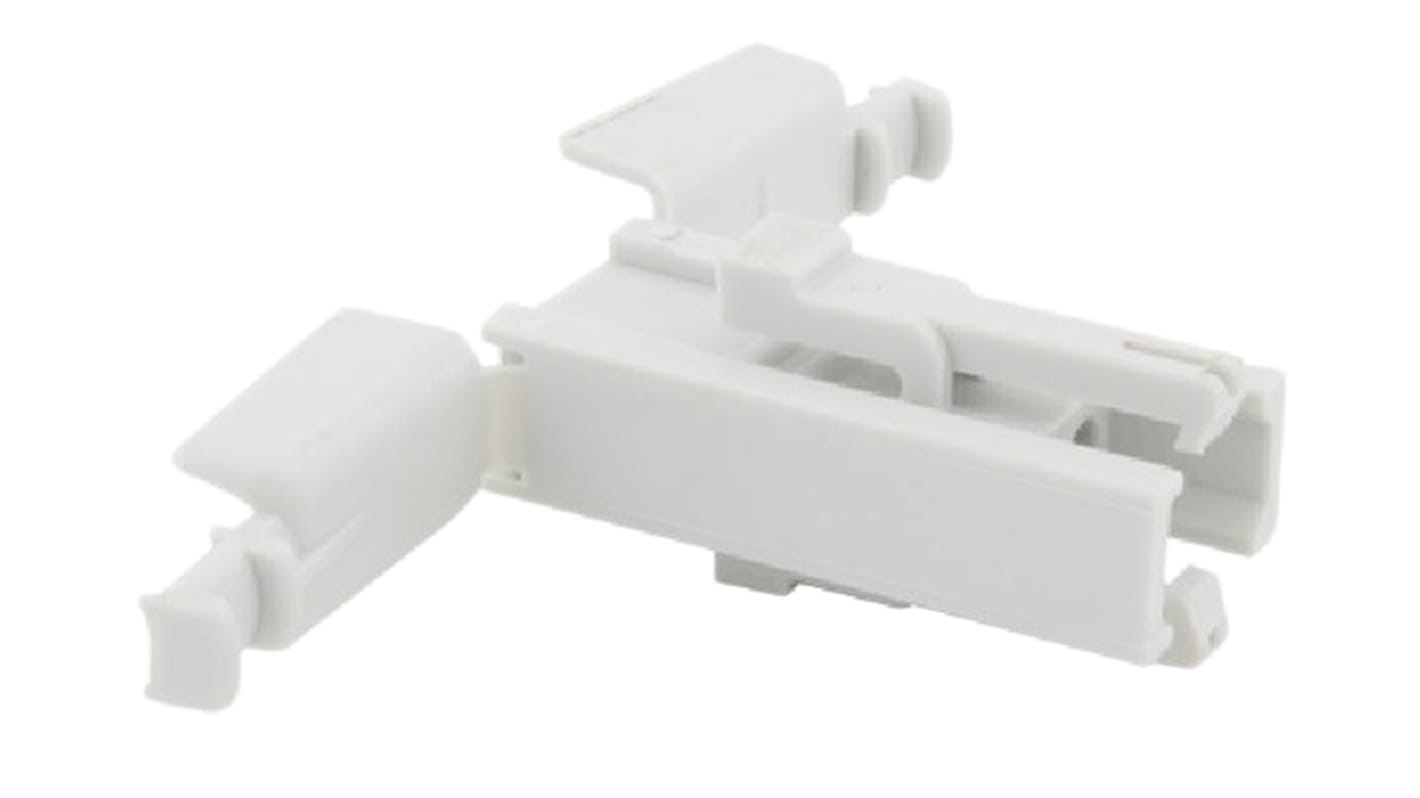

Souriau Sunbank by Eaton, SMS Male Connector Housing, 2 Way, 1 Row
- RS Stock No.:
- 908-3313
- Mfr. Part No.:
- SMS2PDH3
- Brand:
- Souriau Sunbank by Eaton
Bulk discount available
Subtotal (1 pack of 5 units)*
£16.56
(exc. VAT)
£19.87
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 195 unit(s) ready to ship
- Plus 300 unit(s) shipping from 11 November 2025
- Plus 100 unit(s) shipping from 18 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
5 - 45 | £3.312 | £16.56 |
50 - 245 | £3.054 | £15.27 |
250 - 495 | £2.76 | £13.80 |
500 - 745 | £2.54 | £12.70 |
750 + | £2.474 | £12.37 |
*price indicative
- RS Stock No.:
- 908-3313
- Mfr. Part No.:
- SMS2PDH3
- Brand:
- Souriau Sunbank by Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Souriau Sunbank by Eaton | |
Number of Contacts | 2 | |
Number of Rows | 1 | |
Gender | Male | |
Mounting Type | Cable Mount | |
Series | SMS | |
For Use With | Quick Mating PCB Connector | |
Body Orientation | Straight | |
Length | 64.8mm | |
Width | 57.1mm | |
Housing Material | Polyamide | |
Select all | ||
---|---|---|
Brand Souriau Sunbank by Eaton | ||
Number of Contacts 2 | ||
Number of Rows 1 | ||
Gender Male | ||
Mounting Type Cable Mount | ||
Series SMS | ||
For Use With Quick Mating PCB Connector | ||
Body Orientation Straight | ||
Length 64.8mm | ||
Width 57.1mm | ||
Housing Material Polyamide | ||
- COO (Country of Origin):
- BE
Souriau SMS Series Flame Retardant Quick Mating Cable Mount Plug Housings
SMS series quick mating flame retardant cable mount wire to board / wire to wire plug housings with a compact design and a 'push to mate' and 'press & release to unmate' interconnection system that enables quick assembly and installation without the need for any additional hardware. These SMS series quick mating flame retardant cable mount plug connectors have polyamide PA 6 UL94-V0 housings which are fire and smoke resistant for railway indoor applications and are compliant to railway standards I3/F2 in accordance with NFF16101 & NFF16102 (fire and smoke standards). Additional features of these SMS series quick mating cable plug connectors include retaining latches for positive locking, pin protection skirts to prevent damage to the contacts and positive polarization keys to prevent mismating. Versions of these SMS cable mount plug housings are also available with discrimination cavities in beween the contact cavities and integrated strain relief hoods that can accept a wide range of cables.
SMSxxPDH3 are cable plugs with a strain relief hood & discrimination cavities
SMSxxPD3 are cable plugs without a strain relief hood & with discrimination cavities
Available from 2 position to 24 position, these SMS series quick mating cable connectors use size 16 TRIM TRIO 1.6mm diameter snap-lock pin and socket contacts which need to be purchased separately (see stock number 687-6364 typically)
For mating connectors see SMS series quick mating flame retardant cable and panel mount receptacle housings and SMS series quick mating flame retardant PCB mount connectors
SMSxxPDH3 are cable plugs with a strain relief hood & discrimination cavities
SMSxxPD3 are cable plugs without a strain relief hood & with discrimination cavities
Available from 2 position to 24 position, these SMS series quick mating cable connectors use size 16 TRIM TRIO 1.6mm diameter snap-lock pin and socket contacts which need to be purchased separately (see stock number 687-6364 typically)
For mating connectors see SMS series quick mating flame retardant cable and panel mount receptacle housings and SMS series quick mating flame retardant PCB mount connectors
Standards
I3F2/I2F3 according to the NFF16101 & NFF16102 (fire and fume standard for the French rail market)
HL3/R23 following EN45545 (2009)
HL3/R23 following EN45545 (2009)
Souriau SMS Series Quick Mating Wire to Board Connectors
