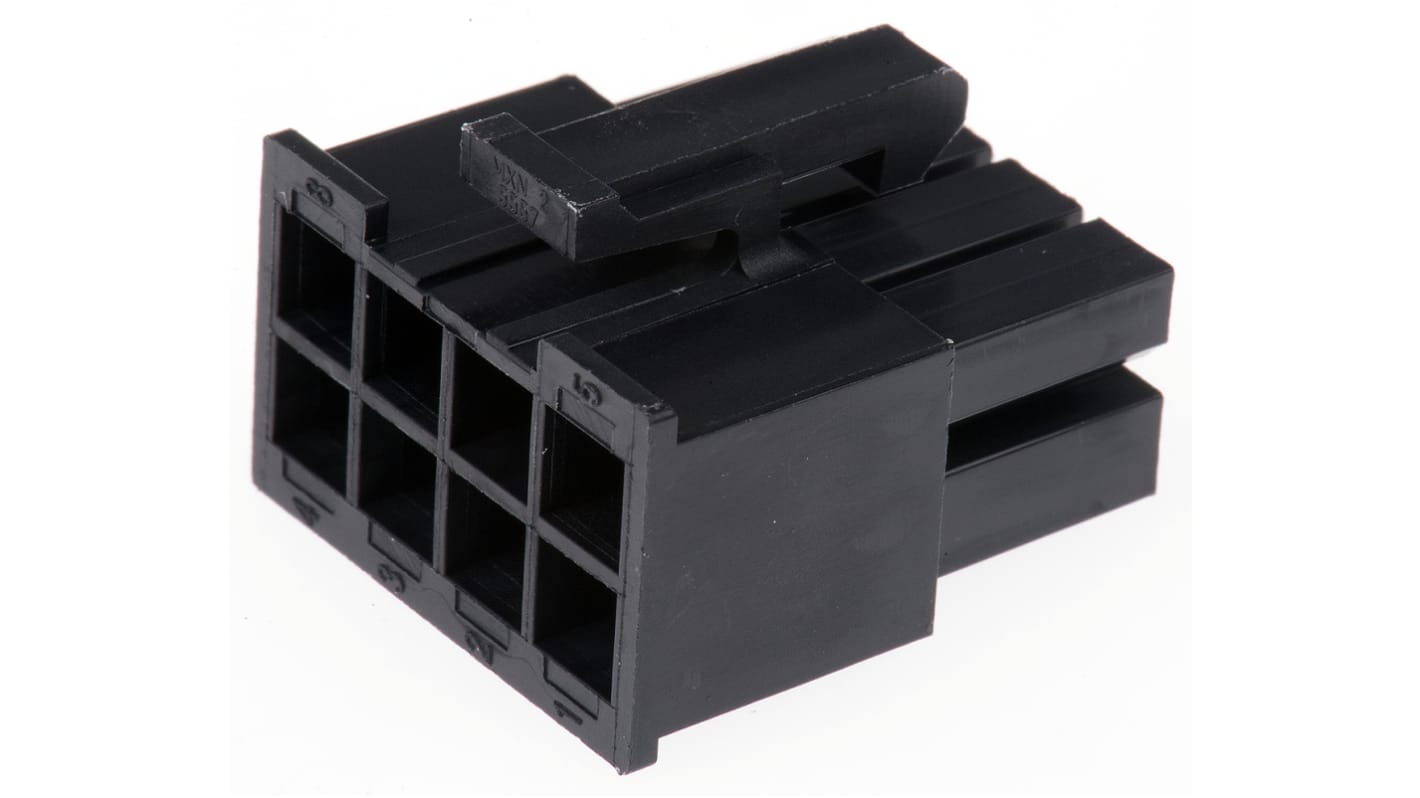

Molex, Mini-Fit Jr Female Connector Housing, 4.2mm Pitch, 8 Way, 2 Row
- RS Stock No.:
- 842-8197
- Mfr. Part No.:
- 39-03-9082
- Brand:
- Molex
Bulk discount available
Subtotal (1 pack of 10 units)*
£6.27
(exc. VAT)
£7.52
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 180 unit(s) ready to ship
- Plus 120 unit(s) ready to ship from another location
- Plus 5,350 unit(s) shipping from 30 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 190 | £0.627 | £6.27 |
| 200 - 740 | £0.488 | £4.88 |
| 750 - 2990 | £0.469 | £4.69 |
| 3000 - 5990 | £0.383 | £3.83 |
| 6000 + | £0.367 | £3.67 |
*price indicative
- RS Stock No.:
- 842-8197
- Mfr. Part No.:
- 39-03-9082
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Number of Contacts | 8 | |
| Number of Rows | 2 | |
| Pitch | 4.2mm | |
| Gender | Female | |
| Mounting Type | Cable Mount | |
| Series | Mini-Fit Jr | |
| For Use With | Female Terminal 5556 | |
| Body Orientation | Straight | |
| Length | 18mm | |
| Width | 11.6mm | |
| Housing Material | Nylon | |
Select all | ||
|---|---|---|
Brand Molex | ||
Number of Contacts 8 | ||
Number of Rows 2 | ||
Pitch 4.2mm | ||
Gender Female | ||
Mounting Type Cable Mount | ||
Series Mini-Fit Jr | ||
For Use With Female Terminal 5556 | ||
Body Orientation Straight | ||
Length 18mm | ||
Width 11.6mm | ||
Housing Material Nylon | ||
Molex Mini-Fit Junior Crimp Receptacle and Plug Housings
Mini-Fit Junior 4.2 mm pitch connector housings form part of the Mini-Fit Junior power connector’s interconnection system. Molex connector housings can be used in applications that require design flexibility. These types of fittings are an essential component that offer protection for the connection it is housing.
Features and Benefits
• Handle Up to 13A current per circuit, a great solution for high current connectors
• Fully isolated terminals for protection against debris and damage caused by mishandling
• Polarization and keying to prevent mismating ad misalignment
• Positive locking mechanism for secure mating connection prevents accidental unmating caused by excessive shock or vibration
• Audible click for mating confirmation
• Available with a flame retardant UL94V-0 or UL94V-2 housing material
• Accepts standard Mini-Fit and Mini-Fit Plus crimp terminals
• Wire to wire and wire to board applications
• Fully isolated terminals for protection against debris and damage caused by mishandling
• Polarization and keying to prevent mismating ad misalignment
• Positive locking mechanism for secure mating connection prevents accidental unmating caused by excessive shock or vibration
• Audible click for mating confirmation
• Available with a flame retardant UL94V-0 or UL94V-2 housing material
• Accepts standard Mini-Fit and Mini-Fit Plus crimp terminals
• Wire to wire and wire to board applications
Molex Female Connector Housing, 8 Way, 2 Rows - Mini-Fit Jr Series - 39-03-9082
Prevent disruption to your cable systems with this connector housing from Molex. It holds female connectors in place to keep circuits secured against jostling and vibrations. With eight contacts arranged across two levels, the housing supports up to eight isolated electrical connections and keeps your wiring clearly organised. Its simple crimp installation method means that your system's electrical connections are gas-tight, reducing the risk of corrosion from air and moisture.
• Insulated with nylon housing material to prevent current leakage for a safe workplace
• Narrow pitch of 4.2mm saves space in your wiring set-ups
• Supports currents up to 13A per contact for high-power applications
• Operating temperature range between -40°C and +105°C means it's suitable for harsh environments
• Designed to click when a connection is made to give you confidence in the security of your connections
• Narrow pitch of 4.2mm saves space in your wiring set-ups
• Supports currents up to 13A per contact for high-power applications
• Operating temperature range between -40°C and +105°C means it's suitable for harsh environments
• Designed to click when a connection is made to give you confidence in the security of your connections
Applications
• Consumer electronics
• Automation applications
• Telecommunications industry
• Automation applications
• Telecommunications industry
Can I use this connector housing with a PCB?
Yes. This connector housing serves both wire-to-wire and wire-to-board applications, making it suitable for use with a PCB.
Molex Minifit Jr.™ Series
