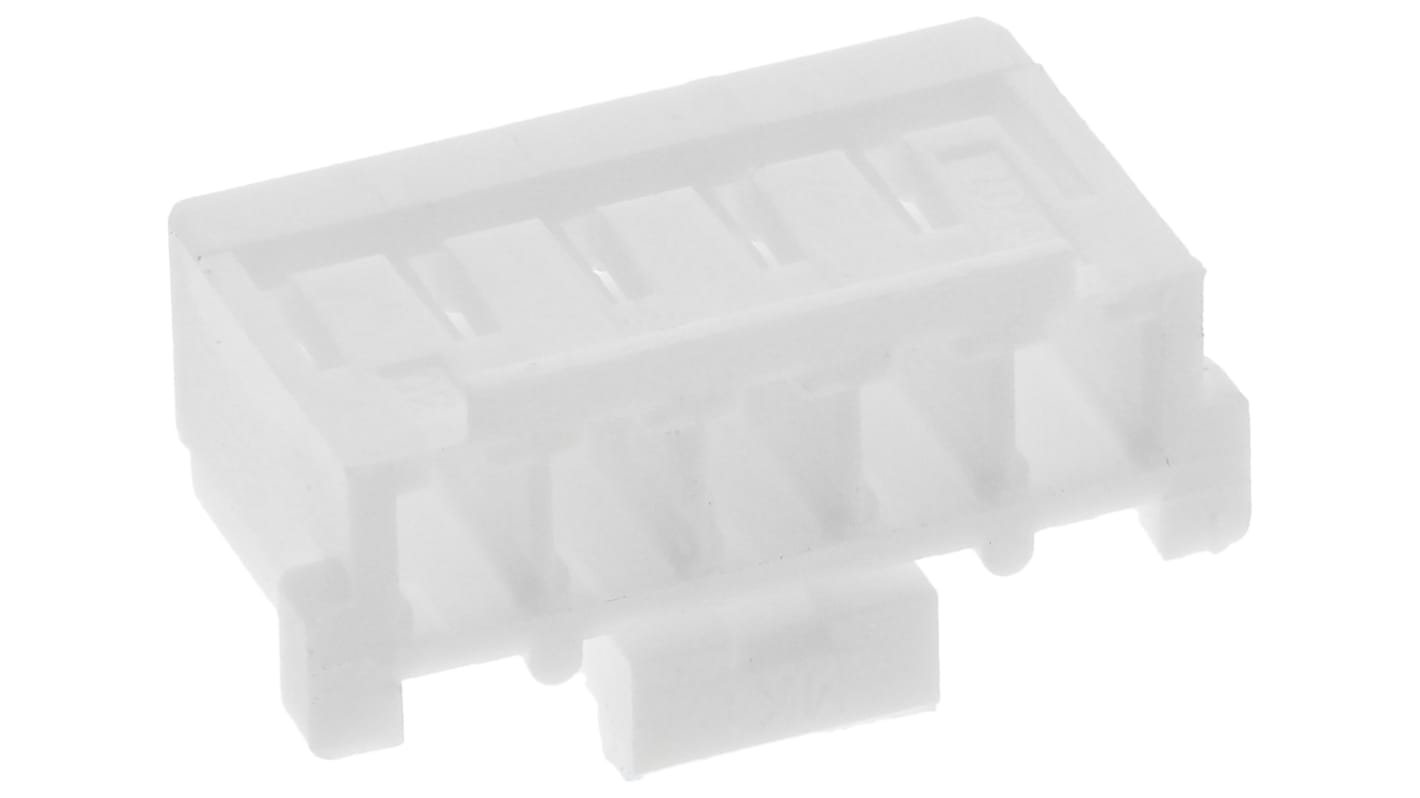

Molex, Sherlock Female Connector Housing, 2mm Pitch, 5 Way, 1 Row
- RS Stock No.:
- 797-9130
- Mfr. Part No.:
- 35507-0500
- Brand:
- Molex
870 In stock - FREE next working day delivery available
130 available from Europe for delivery within 2 working day(s).
Price Each (In a Pack of 10)
£0.111
(exc. VAT)
£0.133
(inc. VAT)
Units | Per unit | Per Pack* |
|---|---|---|
| 10 + | £0.111 | £1.11 |
*price indicative
- RS Stock No.:
- 797-9130
- Mfr. Part No.:
- 35507-0500
- Brand:
- Molex
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Product Details
2.0mm Sherlock Connector System Crimp Housings - 35507 Series
The Sherlock Connector System from Molex is for use in applications where secure mating is an important consideration. The design of the Sherlock Connector System includes polarizing ribs, a wide latch area providing secure mating retention and produces an audible click on assembly. These Sherlock Crimp Housings take standard 50212 Series contact terminals, see Stock Number 679-4691 typical.
2.0mm Wire to Board - Molex
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 5 |
| Number of Rows | 1 |
| Pitch | 2mm |
| Gender | Female |
| Mounting Type | Cable Mount |
| Series | Sherlock |
| For Use With | 2mm Pitch Crimp Terminal 50212 |
| Body Orientation | Straight |
| Length | 12.3mm |
| Width | 6.3mm |
| Housing Material | PET |
