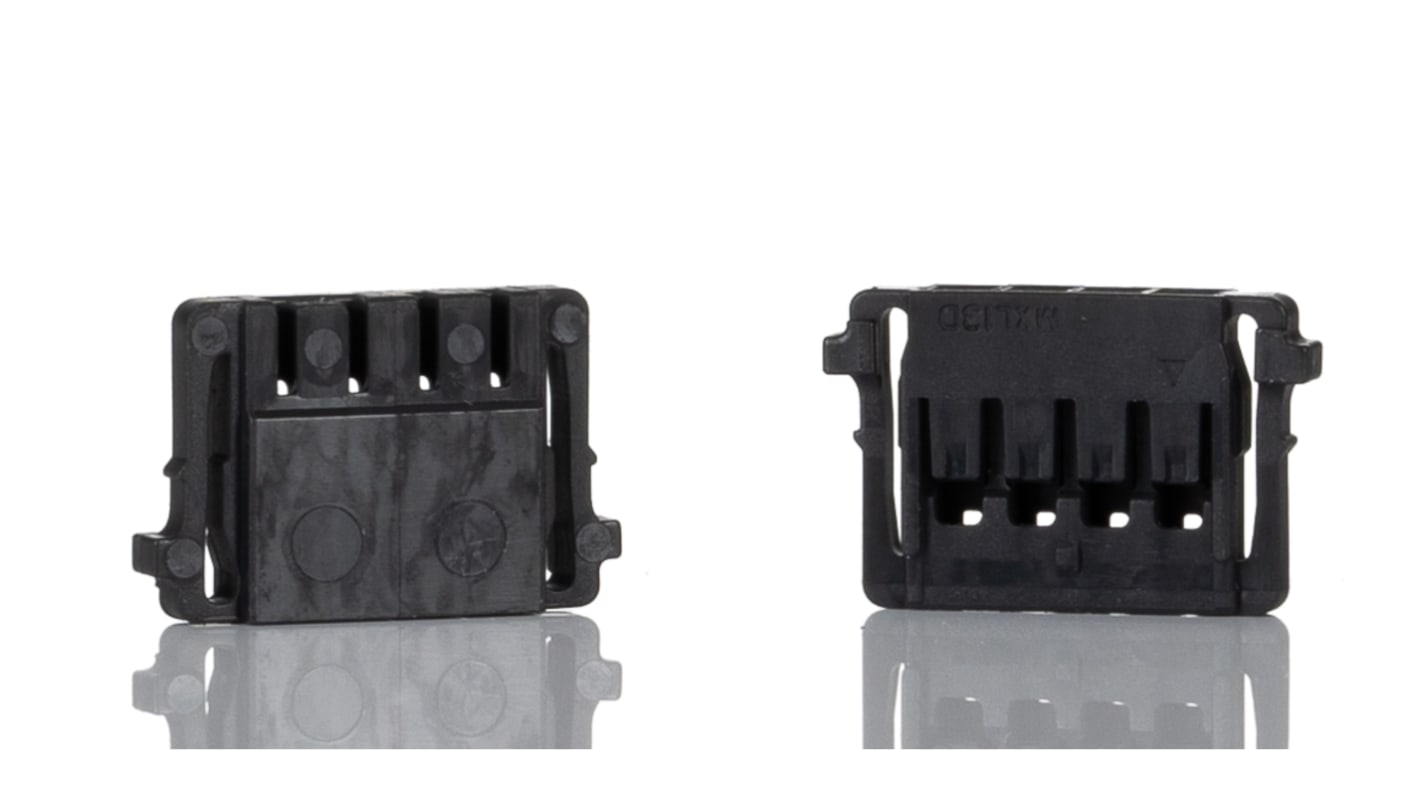

Molex, Pico-Lock Female Connector Housing, 1.5mm Pitch, 4 Way, 1 Row

Save 48% when you buy 2500 units

Subtotal (1 pack of 5 units)*

£1.72

(exc. VAT)

£2.065

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 380 unit(s) ready to ship from another location
  • Plus 4,045 unit(s) shipping from 09 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
5 - 120£0.344£1.72
125 - 495£0.192£0.96
500 - 995£0.186£0.93
1000 - 2495£0.182£0.91
2500 +£0.178£0.89

*price indicative

Packaging Options:
RS Stock No.:
789-8368
Mfr. Part No.:
504051-0401
Brand:
Molex
Find similar products by selecting one or more attributes.
Select all

Brand

Molex

Number of Contacts

4

Number of Rows

1

Pitch

1.5mm

Gender

Female

Mounting Type

Cable Mount

Series

Pico-Lock

For Use With

SMT Wire-to-Board Header

Body Orientation

Straight

Length

9.95mm

Width

1.92mm

Housing Material

Thermoplastic

COO (Country of Origin):
MY

1.50 mm Pitch Pico-Lock Crimp Housings - 504051 Series


The Molex 1.50 mm Pitch Pico-Lock 504051 Series Crimp Housing material is UL94V-0 rated. The design of the Molex 1.50 mm Pitch Pico-Lock 504051 Series Crimp Housing includes polarisation ribs and slots to provide fool-proof mating.

Note

For use with Molex 1.50 mm Pitch Pico-Lock 504052 Series Crimp Terminal stock number 789-8378 typical.
For mating Molex 1.50 mm Pitch Pico-Lock 504050 Series Crimp SMT Right Angle Headers see stock number 789-8359 typical.

Molex Connector Housing, High-Temperature Thermoplastic Material, -25°C to +85°C Operating Temperature Range - 504051 Series - 504051-0401


To achieve a robust PCB assembly, slot your crimped terminals into this connector housing from Molex. It's designed for use with an SMT wire-to-board header and completely encloses sensitive electrical links to keep out contaminants. The integrated lock-to-mating feature maintains a solid grip on the connector so you can be sure of a stable hold, even in vibrating conditions.

Features & Benefits


• Safe to use in challenging conditions, thanks to an operating temperature range of -25°C to +85°C
• Polarized-to-mating design cuts out the risk of damage caused by misalignment
• Single-row layout with 4 contacts offers a simple and neat way to manage multiple circuits

Applications


• HVAC systems
• Robotics systems
• Electrical engineering

What size is this housing?


It has compact external dimensions of 9.95 (L) x 1.92 (W) x 6.4mm (D), so it's a space-saving option for miniature assemblies.


1.5mm Wire to Board - Molex Pico-Lock


The Molex 1.50 mm Pitch SMT Pico-Lock Wire-to-Board system provides positive locking with high current capacity and a very low profile on the PCB. The unique side positive lock design of the Molex 1.50 mm Pitch SMT Pico-Lock Wire-to-Board system give this connector its ultra low profile with a mated height of 2 mm. Additional mating assurance of the Molex 1.50 mm Pitch SMT Pico-Lock Wire-to-Board system is provided via top friction locks, visual mating confirmation and by the header having a wide solder tab that is shaped to pass over the top of the housing providing additional mechanical stability. Operator handling is aided by the Molex 1.50 mm Pitch SMT Pico-Lock Wire-to-Board systems mating guide rib design which also provides polarization. The materials used for the Molex 1.50 mm Pitch Pico-Lock Wire-to-Board system are RoHS and Low-Halogen compliant.
