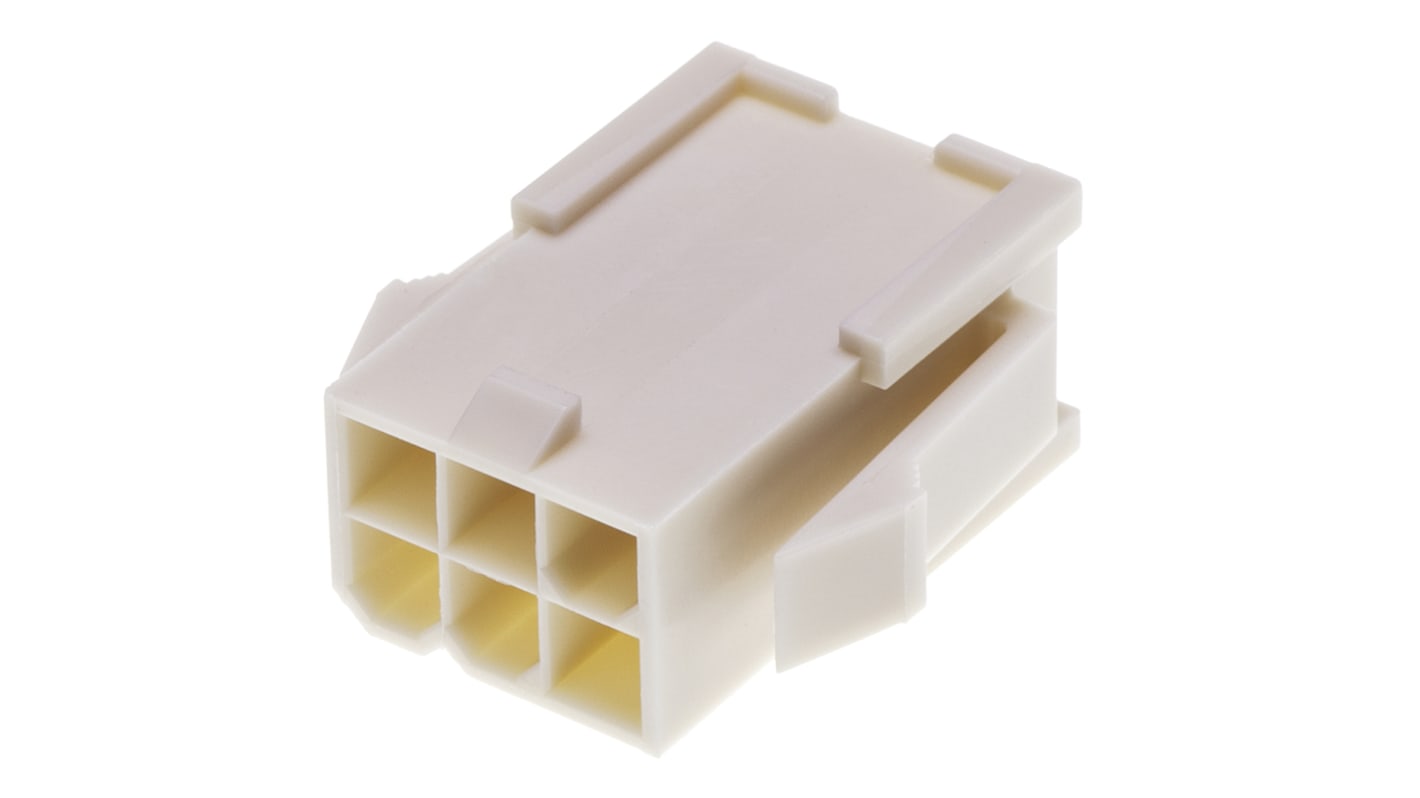

Molex, Mini-Fit Jr Male Connector Housing, 4.2mm Pitch, 6 Way, 2 Row
- RS Stock No.:
- 679-5782
- Mfr. Part No.:
- 39-01-2066
- Brand:
- Molex
Save 47% when you buy 3000 units
Subtotal (1 pack of 5 units)*
£3.66
(exc. VAT)
£4.39
(inc. VAT)
FREE delivery for orders over £50.00
Limited stock
- 2,070 left, ready to ship
- Plus 410 left, ready to ship from another location
- Plus 4,100 left, shipping from 08 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 95 | £0.732 | £3.66 |
| 100 - 370 | £0.498 | £2.49 |
| 375 - 1495 | £0.478 | £2.39 |
| 1500 - 2995 | £0.402 | £2.01 |
| 3000 + | £0.386 | £1.93 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (In a Pack of 10)
£0.257
(exc. VAT)
£0.308
(inc. VAT)
- RS Stock No.:
- 679-5782
- Mfr. Part No.:
- 39-01-2066
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Number of Contacts | 6 | |
| Number of Rows | 2 | |
| Pitch | 4.2mm | |
| Gender | Male | |
| Mounting Type | Cable Mount | |
| Series | Mini-Fit Jr | |
| For Use With | Mini-Fit Jr. Plug | |
| Body Orientation | Straight | |
| Width | 11.6mm | |
| Housing Material | Nylon | |
Select all | ||
|---|---|---|
Brand Molex | ||
Number of Contacts 6 | ||
Number of Rows 2 | ||
Pitch 4.2mm | ||
Gender Male | ||
Mounting Type Cable Mount | ||
Series Mini-Fit Jr | ||
For Use With Mini-Fit Jr. Plug | ||
Body Orientation Straight | ||
Width 11.6mm | ||
Housing Material Nylon | ||
- COO (Country of Origin):
- CN
Molex Mini-Fit Junior Crimp Receptacle and Plug Housings
Mini-Fit Junior 4.2 mm pitch connector housings form part of the Mini-Fit Junior power connector’s interconnection system. Molex connector housings can be used in applications that require design flexibility. These types of fittings are an essential component that offer protection for the connection it is housing.
Features and Benefits
• Handle Up to 13A current per circuit, a great solution for high current connectors
• Fully isolated terminals for protection against debris and damage caused by mishandling
• Polarization and keying to prevent mismating ad misalignment
• Positive locking mechanism for secure mating connection prevents accidental unmating caused by excessive shock or vibration
• Audible click for mating confirmation
• Available with a flame retardant UL94V-0 or UL94V-2 housing material
• Accepts standard Mini-Fit and Mini-Fit Plus crimp terminals
• Wire to wire and wire to board applications
• Fully isolated terminals for protection against debris and damage caused by mishandling
• Polarization and keying to prevent mismating ad misalignment
• Positive locking mechanism for secure mating connection prevents accidental unmating caused by excessive shock or vibration
• Audible click for mating confirmation
• Available with a flame retardant UL94V-0 or UL94V-2 housing material
• Accepts standard Mini-Fit and Mini-Fit Plus crimp terminals
• Wire to wire and wire to board applications
Molex Male Connector Housing, 4.2mm Pitch, 6 Way - Mini-Fit Jr Series - 39-01-2066
Safely contain your high current connectors in this six-way plug housing from Molex. It handles maximum currents of 13A per circuit for use in demanding consumer and industrial applications such as vehicle control modules, gaming machines and robotics. You'll know the crimp connectors are correctly slotted into a segment thanks to an audible clicking noise, and a positive locking mechanism prevents disconnection. The unit is segmented to keep crimp connectors separated and it's made from non-conductive nylon to isolate each terminal. This thermoplastic case material is resistant to wear, making for a durable component.
• Panel mounting ears for easy and secure clip-in fitting
• Wide operating temperature range between -40°C and +105°C for use in extreme cold and hot conditions
• Polarized mating section to minimise circuit assembly errors
• Labelled segments for quick circuit identification
• Wide operating temperature range between -40°C and +105°C for use in extreme cold and hot conditions
• Polarized mating section to minimise circuit assembly errors
• Labelled segments for quick circuit identification
Applications
• Commercial vehicles
• Industrial automation equipment
• Consumer appliances
• Medical technology
• Industrial automation equipment
• Consumer appliances
• Medical technology
Which crimp terminals is this connector housing compatible with?
This connector housing accepts standard Mini-Fit and Mini-Fit Plus crimp terminals to give you flexibility over contact materials and wire sizes for your circuit.
Molex Minifit Jr.™ Series
