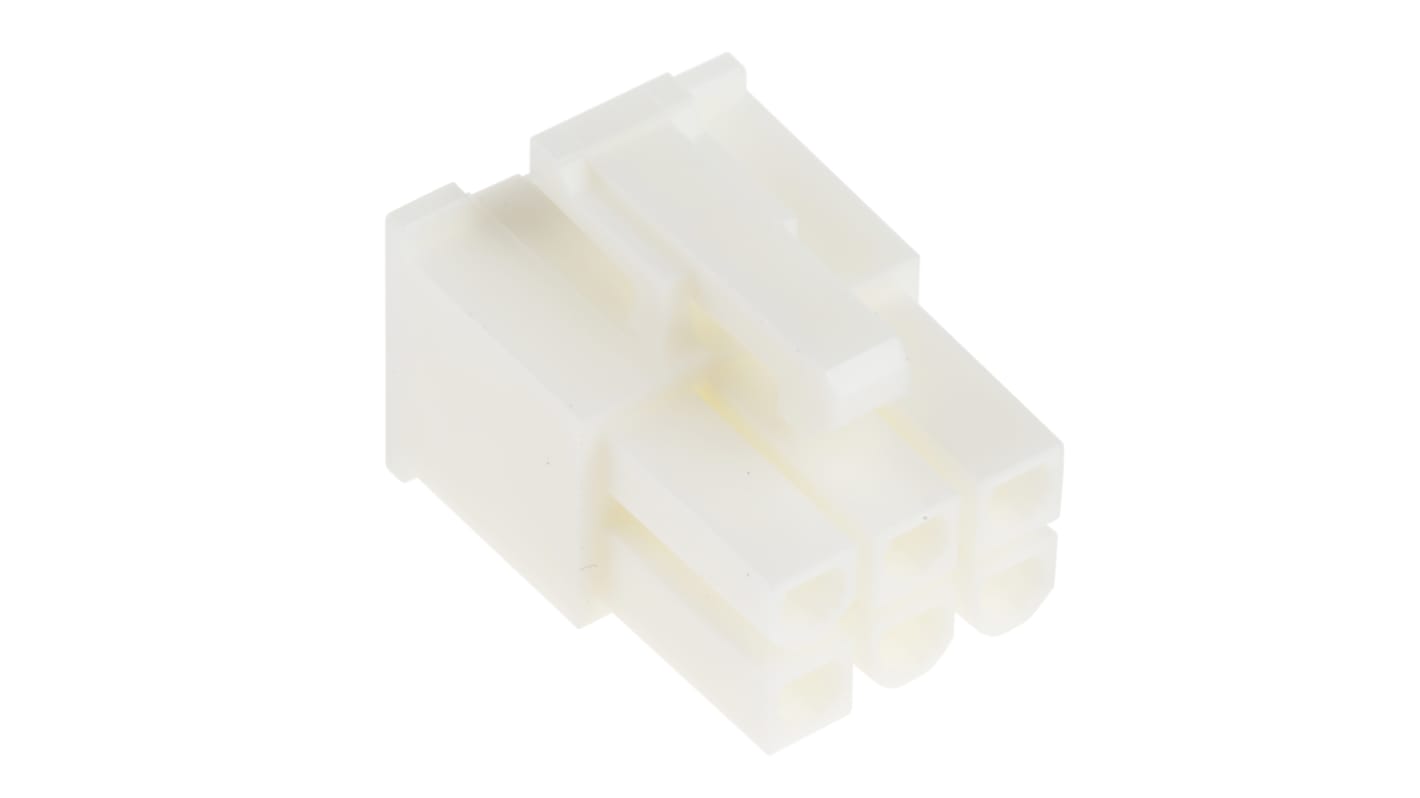

Molex, Mini-Fit Jr Female Connector Housing, 4.2mm Pitch, 6 Way, 2 Row
- RS Stock No.:
- 679-5773P
- Mfr. Part No.:
- 39-01-2065
- Brand:
- Molex
Save 24% when you buy 3000 units
Subtotal 100 units (supplied in a bag)*
£41.20
(exc. VAT)
£49.40
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 21,495 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 100 - 370 | £0.412 |
| 375 - 1495 | £0.396 |
| 1500 - 2995 | £0.322 |
| 3000 + | £0.31 |
*price indicative
- RS Stock No.:
- 679-5773P
- Mfr. Part No.:
- 39-01-2065
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Number of Contacts | 6 | |
| Number of Rows | 2 | |
| Pitch | 4.2mm | |
| Gender | Female | |
| Mounting Type | Cable Mount | |
| Series | Mini-Fit Jr | |
| For Use With | Mini-Fit Jr. Receptacle | |
| Body Orientation | Straight | |
| Length | 13.8mm | |
| Width | 15.1mm | |
| Housing Material | Nylon | |
Select all | ||
|---|---|---|
Brand Molex | ||
Number of Contacts 6 | ||
Number of Rows 2 | ||
Pitch 4.2mm | ||
Gender Female | ||
Mounting Type Cable Mount | ||
Series Mini-Fit Jr | ||
For Use With Mini-Fit Jr. Receptacle | ||
Body Orientation Straight | ||
Length 13.8mm | ||
Width 15.1mm | ||
Housing Material Nylon | ||
Molex Mini-Fit Junior Crimp Receptacle and Plug Housings
Mini-Fit Junior 4.2 mm pitch connector housings form part of the Mini-Fit Junior power connector’s interconnection system. Molex connector housings can be used in applications that require design flexibility. These types of fittings are an essential component that offer protection for the connection it is housing.
Features and Benefits
• Handle Up to 13A current per circuit, a great solution for high current connectors
• Fully isolated terminals for protection against debris and damage caused by mishandling
• Polarization and keying to prevent mismating ad misalignment
• Positive locking mechanism for secure mating connection prevents accidental unmating caused by excessive shock or vibration
• Audible click for mating confirmation
• Available with a flame retardant UL94V-0 or UL94V-2 housing material
• Accepts standard Mini-Fit and Mini-Fit Plus crimp terminals
• Wire to wire and wire to board applications
• Fully isolated terminals for protection against debris and damage caused by mishandling
• Polarization and keying to prevent mismating ad misalignment
• Positive locking mechanism for secure mating connection prevents accidental unmating caused by excessive shock or vibration
• Audible click for mating confirmation
• Available with a flame retardant UL94V-0 or UL94V-2 housing material
• Accepts standard Mini-Fit and Mini-Fit Plus crimp terminals
• Wire to wire and wire to board applications
Molex Mini-Fit Jr Female Connector Housing, 6 Way, 4.2mm Pitch - 5557 Series - 39-01-2065
Securely fasten your wire-to-wire or wire to printed circuit board (PCB) connections with this Molex connector housing. It contains six circuit connection terminals arranged in two rows and is designed to fit small 4.2mm pitch interfaces. This makes it ideal for saving space on your PCB. The crimp termination method makes it simple to install and ensures a secure, reliable connection. The durable nylon housing material provides good electrical insulation for safety in demanding electrical applications.
• Versatile product that works with other product series such as Mini-Fit and Mini-Fit Plus
• Maximum current of 13A per contact for use in high-current applications
• Operates across a broad temperature range of -40°C to +105°C for use in demanding work environments
• Polarised mating terminals to prevent installation errors
• Maximum current of 13A per contact for use in high-current applications
• Operates across a broad temperature range of -40°C to +105°C for use in demanding work environments
• Polarised mating terminals to prevent installation errors
Applications
• Information technology applications
• Transportation modules
• Industrial machinery
• Domestic appliances
• Transportation modules
• Industrial machinery
• Domestic appliances
What's the purpose of a connector housing?
This type of component serves as a receptacle to hold your connectors when they're mounted to a printed circuit board. It keeps them securely in place to ensure reliable connections when joining multiple PCBs or when linking a PCB to a device.
Molex Minifit Jr.™ Series
