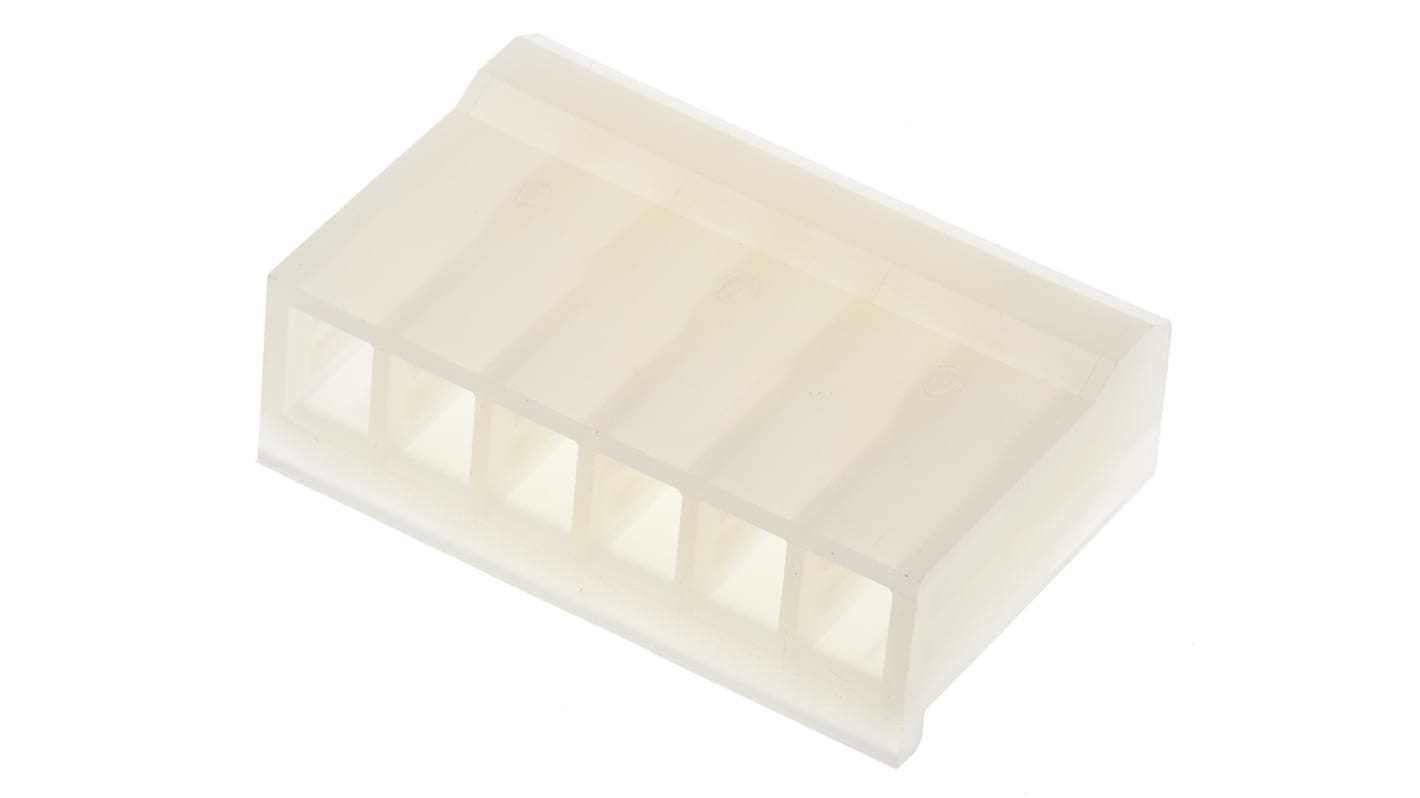

Molex, SPOX Female Connector Housing, 3.96mm Pitch, 6 Way, 1 Row

RS Stock No.:: 670-5183
Mfr. Part No.:: 09-50-1061
Brand:: Molex

Molex, SPOX Female Connector Housing, 3.96mm Pitch, 6 Way, 1 Row

1340 In stock - FREE next working day delivery available

360 available from Europe for delivery within 1 working day(s).

Price Each (In a Pack of 10)

£0.369

(exc. VAT)

£0.443

(inc. VAT)

Units	Per unit	Per Pack*
10 - 190	£0.369	£3.69
200 - 740	£0.286	£2.86
750 - 2990	£0.272	£2.72
3000 - 5990	£0.225	£2.25
6000 +	£0.216	£2.16

*price indicative

RS Stock No.:: 670-5183
Mfr. Part No.:: 09-50-1061
Brand:: Molex

Technical Reference

Legislation and Compliance

COO (Country of Origin):: CN

Product Details

Receptacle Housings, 5195 Series

Mates with 5273 Series headers typical stock number 670-5231
Uses 5194 Series terminals typical stock number 670-5234

Molex SPOX Series Connector Housing, Nylon Housing, 16X24.9X8.85mm - 09-50-1061

This connector housing by Molex is a straight, female connector from the 5195 series, with reliable technical specifications. It offers high-quality performance with a focus on durability and reliability.

Features & Benefits

• Straight orientation for easy installation
• Female gender for compatibility with various applications
• Nylon housing material for enhanced durability
• 6-pin connector with a 3.96mm pitch
• Cable mount style for versatile use

Applications

• Specifically designed for use with SPOX connectors
• Ideal for signal and wire-to-board applications in the electronics industry
• Suitable for both commercial and industrial settings

Can it be used with SPOX connectors?

Yes, it is designed for seamless integration with SPOX connectors.

Will it work for wire-to-board applications?

Yes, this connector housing is reliable for wire-to-board setups.

Is it compatible with a 6-pin configuration?

Yes, it features 6 pins for a secure connection.

Can it withstand different environmental conditions?

Yes, this connector housing is designed to operate in temperatures ranging from -40°C to +105°C.

Does it require specialised tools for installation?

No, it can be easily installed with standard tools available in the market.

3.96mm Molex SPOX Range

The SPOX range has a terminal which is like a "spring box". This design enables multiple points of contact which protects the mating interface area and also prevents fish-hooking from wires during handling.

Specifications

Attribute	Value
Number of Contacts	6
Number of Rows	1
Pitch	3.96mm
Gender	Female
Mounting Type	Cable Mount
Series	SPOX
For Use With	SPOX Connector
Body Orientation	Straight
Length	24.9mm
Width	8.85mm
Housing Material	Nylon
