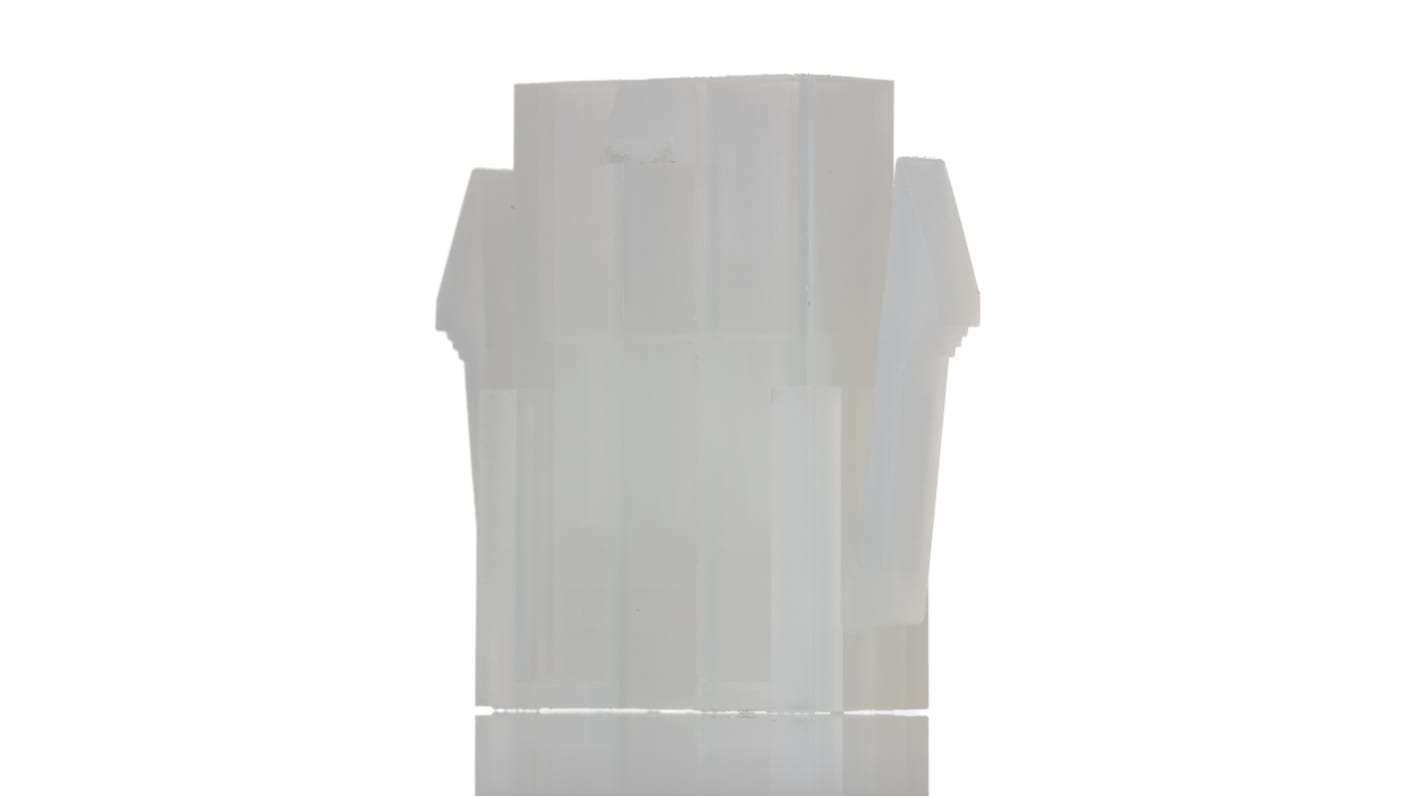

Molex, Mini-Fit Jr Male Connector Housing, 4.2mm Pitch, 3 Way, 1 Row

Currently unavailable
Sorry, we don't know when this will be back in stock.
Packaging Options:
RS Stock No.:
670-4587P
Mfr. Part No.:
39-01-4032
Brand:
Molex
Find similar products by selecting one or more attributes.
Select all

Brand

Molex

Number of Contacts

3

Number of Rows

1

Pitch

4.2mm

Gender

Male

Mounting Type

Panel Mount

Series

Mini-Fit Jr

For Use With

Mini-Fit Jr. Plug

Body Orientation

Straight

Length

19.2mm

Width

7.4mm

Housing Material

Nylon

COO (Country of Origin):
US

Molex Mini-Fit Junior Crimp Receptacle and Plug Housings


Mini-Fit Junior 4.2 mm pitch connector housings form part of the Mini-Fit Junior power connector’s interconnection system. Molex connector housings can be used in applications that require design flexibility. These types of fittings are an essential component that offer protection for the connection it is housing.

Features and Benefits


• Handle Up to 13A current per circuit, a great solution for high current connectors
• Fully isolated terminals for protection against debris and damage caused by mishandling
• Polarization and keying to prevent mismating ad misalignment
• Positive locking mechanism for secure mating connection prevents accidental unmating caused by excessive shock or vibration
• Audible click for mating confirmation
• Available with a flame retardant UL94V-0 or UL94V-2 housing material
• Accepts standard Mini-Fit and Mini-Fit Plus crimp terminals
• Wire to wire and wire to board applications

Molex Connector Housing, Panel Mounting, Pack of 10 - Mini-Fit Jr Series - 39-01-4032


Cover your conductors in tough conditions with this connector housing from Molex. Its strong nylon body stands up to impacts, cutting out damage caused by bumps. Thanks to handy side ears, it's easy to mount the unit to a standard panel and you can be sure of a secure fit. There are three contacts arranged in a single row, so you have easy access to make connections. By locking to a compatible connector, this housing holds steady against disruptive movement. An audible click lets you know mating is complete and successful.

Features & Benefits


• 4.2mm pitch to fit with standard connectors
• Polarised design prevents potentially damaging misalignment
• Handles current up to 13A to take on intense loads

Applications


• Electronic manufacturing
• Office equipment
• Industrial automation

How do I fit contacts into the housing?


This unit accepts crimp terminals (such as 670-6316), so you get quick and secure links without the hassle of soldering.
