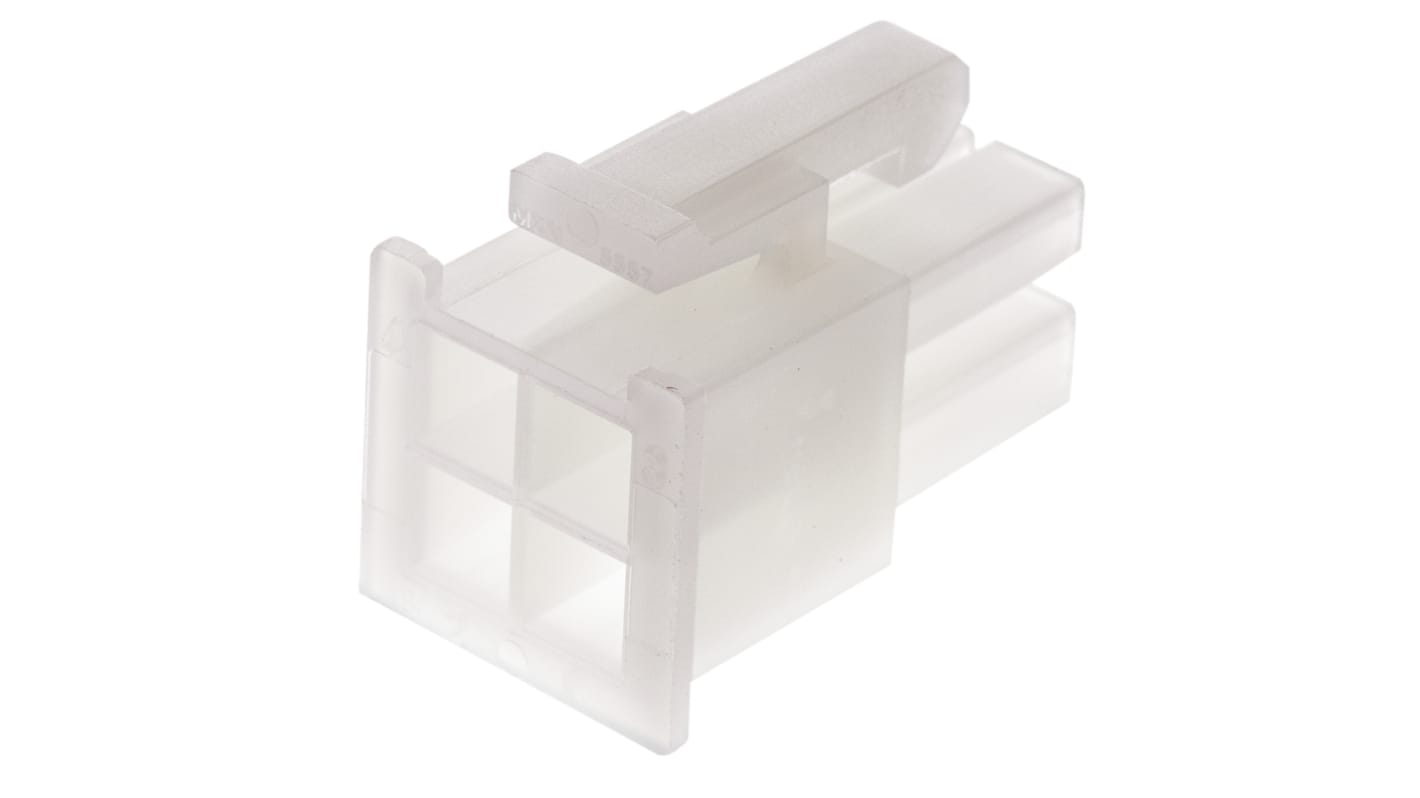

Molex, Mini-Fit Jr Female Connector Housing, 4.2mm Pitch, 4 Way, 2 Row
- RS Stock No.:
- 670-4571
- Mfr. Part No.:
- 39-01-3042
- Brand:
- Molex
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 670-4571
- Mfr. Part No.:
- 39-01-3042
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Number of Contacts | 4 | |
| Number of Rows | 2 | |
| Pitch | 4.2mm | |
| Gender | Female | |
| Mounting Type | Cable Mount | |
| Series | Mini-Fit Jr | |
| For Use With | Mini-Fit Jr. Receptacle | |
| Body Orientation | Straight | |
| Length | 11.6mm | |
| Housing Material | Nylon | |
Select all | ||
|---|---|---|
Brand Molex | ||
Number of Contacts 4 | ||
Number of Rows 2 | ||
Pitch 4.2mm | ||
Gender Female | ||
Mounting Type Cable Mount | ||
Series Mini-Fit Jr | ||
For Use With Mini-Fit Jr. Receptacle | ||
Body Orientation Straight | ||
Length 11.6mm | ||
Housing Material Nylon | ||
- COO (Country of Origin):
- US
Molex Connector Housing, Straight Body, 13A Maximum Current Per Contact - Mini-Fit Jr Series - 39-01-3042
Need to make secure electrical connections to your PCB? Turn to this female connector housing from Molex. The versatile unit has four circuits, so you can use it to house multiple wires at the same time. It also helps protects your cables from moisture and dirt to prolong their service life. A maximum current rating of 13A per contact means you can safely use it in your high-power systems.
Features & Benefits
• Straight body orientation for easy front-facing mounting
• Wide operating temperature range between -40°C and +105°C to withstand harsh environments
• Durable nylon housing offers insulation protection to minimise the risk of electrical hazards
• Wide operating temperature range between -40°C and +105°C to withstand harsh environments
• Durable nylon housing offers insulation protection to minimise the risk of electrical hazards
Applications
• Control panels
• Security systems
• Communications and networking equipment
• Security systems
• Communications and networking equipment
How can I tell if this connector housing is secured to the board?
This connector housing is designed to emit an audible click when it's attached to the board, so you can easily confirm that the connection is secure.
Molex Minifit Jr.™ Series
