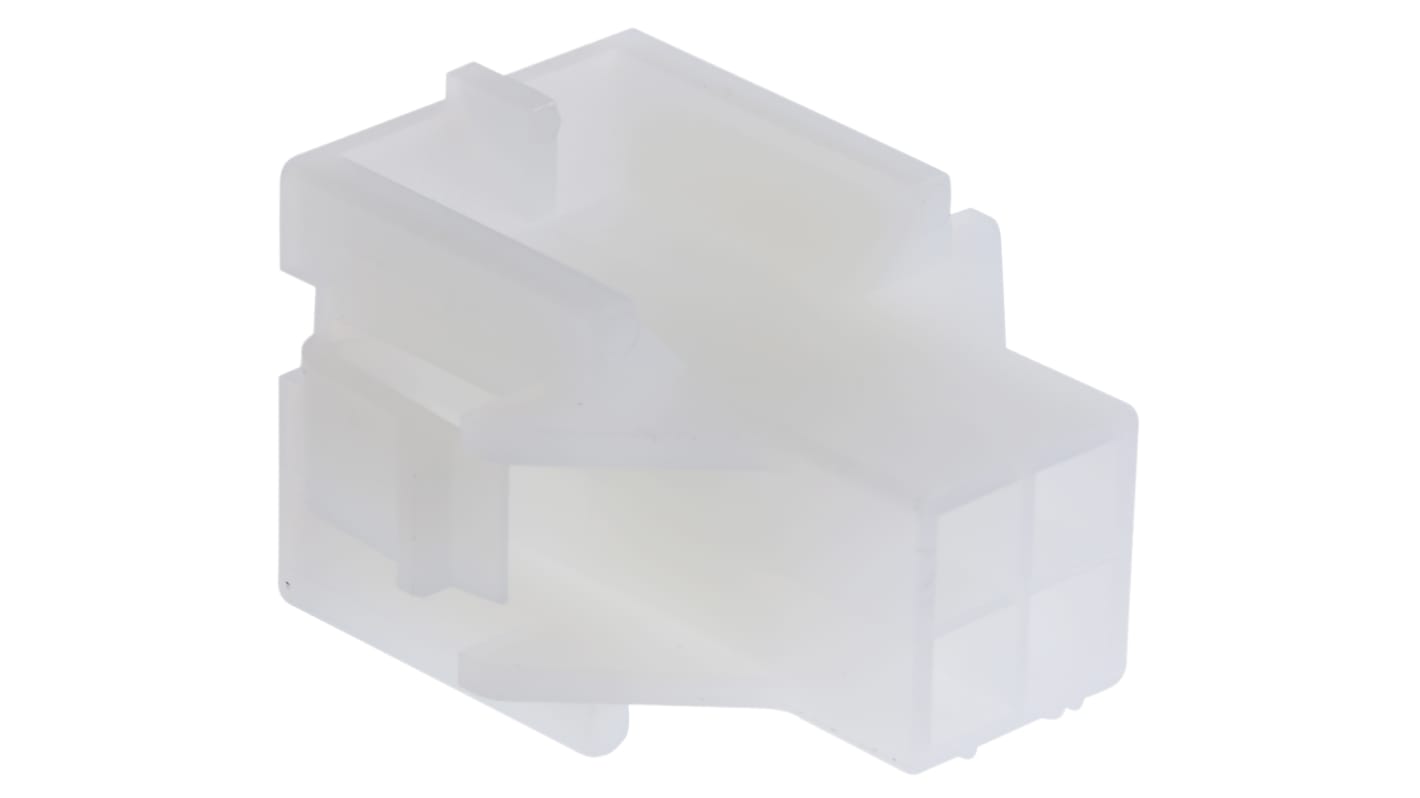

Molex, Mini-Fit BMI Male Connector Housing, 4.2mm Pitch, 4 Way, 2 Row
- RS Stock No.:
- 670-4509
- Mfr. Part No.:
- 15-06-0045
- Brand:
- Molex
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 670-4509
- Mfr. Part No.:
- 15-06-0045
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Number of Contacts | 4 | |
| Number of Rows | 2 | |
| Pitch | 4.2mm | |
| Gender | Male | |
| Mounting Type | Panel Mount | |
| Series | Mini-Fit BMI | |
| For Use With | Mini-Fit BMI Plug | |
| Body Orientation | Straight | |
| Length | 15.8mm | |
| Width | 16.8mm | |
| Housing Material | Nylon | |
Select all | ||
|---|---|---|
Brand Molex | ||
Number of Contacts 4 | ||
Number of Rows 2 | ||
Pitch 4.2mm | ||
Gender Male | ||
Mounting Type Panel Mount | ||
Series Mini-Fit BMI | ||
For Use With Mini-Fit BMI Plug | ||
Body Orientation Straight | ||
Length 15.8mm | ||
Width 16.8mm | ||
Housing Material Nylon | ||
- COO (Country of Origin):
- US
Receptacle and Plug Housings, 42474 and 42475 Series
Blind Mating Interface panel mount housings
Receptacle housings 42474 Series mate with Plug housings 42475 Series
Receptacle housings 42474 Series also mate with Crimp Terminal Receptacles 5557 Series typical stock numbers 484-1748
Receptacle housings use 5556 Series terminals typical stock number 215-5887
Plug housings use 5558 Series terminals typical stock number 215-5893
Receptacle housings 42474 Series mate with Plug housings 42475 Series
Receptacle housings 42474 Series also mate with Crimp Terminal Receptacles 5557 Series typical stock numbers 484-1748
Receptacle housings use 5556 Series terminals typical stock number 215-5887
Plug housings use 5558 Series terminals typical stock number 215-5893
Molex Mini-Fit BMI Series
