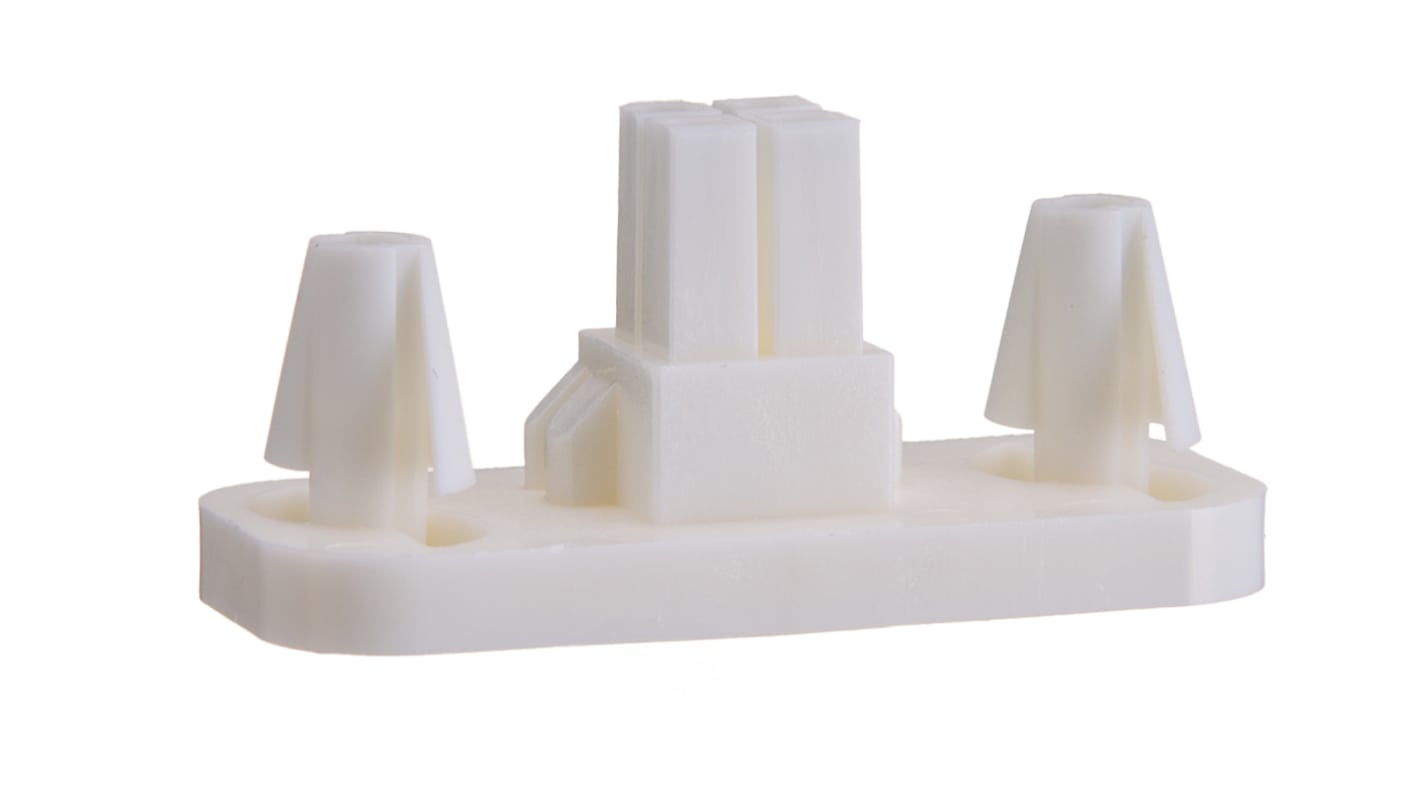

Molex, Mini-Fit BMI Female Connector Housing, 4.2mm Pitch, 4 Way, 2 Row

Blind Mating Interface panel mount housings
Receptacle housings 42474 Series mate with Plug housings 42475 Series
Receptacle housings 42474 Series also mate with Crimp Terminal Receptacles 5557 Series typical stock numbers 484-1748
Receptacle housings use 5556 Series terminals typical stock number 215-5887
Plug housings use 5558 Series terminals typical stock number 215-5893

This connector housing is designed for the Mini-Fit BMI series, featuring a straight body orientation and a 4.2mm pitch. Measuring 40.2mm in length and 17.3mm in width, it provides a reliable connection for various electrical applications. Constructed from durable nylon, this female connector housing is ideal for panel mounting and ensures secure attachment.

• Fully isolated terminals protect against handling damage
• Polarised mating prevents mismating of headers and receptacles
• Positive locking housings ensure secure connections with thumb latches
• Crimp terminals fabricated from a high-current alloy enhance conductivity
• Self-aligning interface simplifies mating in confined spaces
• Terminal position assurance reduces assembly errors to prevent failure

• Used with Mini-Fit BMI receptacles for secure connections
• Ideal for automation and industrial control systems
• Suitable for electronic control modules and medical devices
• Utilised in gaming machines and vending equipment
• Applicable in telecommunications and data communications systems

They are rated for 13.0A per circuit, suitable for high-current applications, ensuring effective performance across various electronic devices.

The blind-mating interface facilitates alignment despite potential misalignment, allowing operation in hard-to-reach areas and promoting long-term dependability.

The connector housing is made from nylon, providing durability and resistance to environmental stresses, suitable for various industrial applications.
