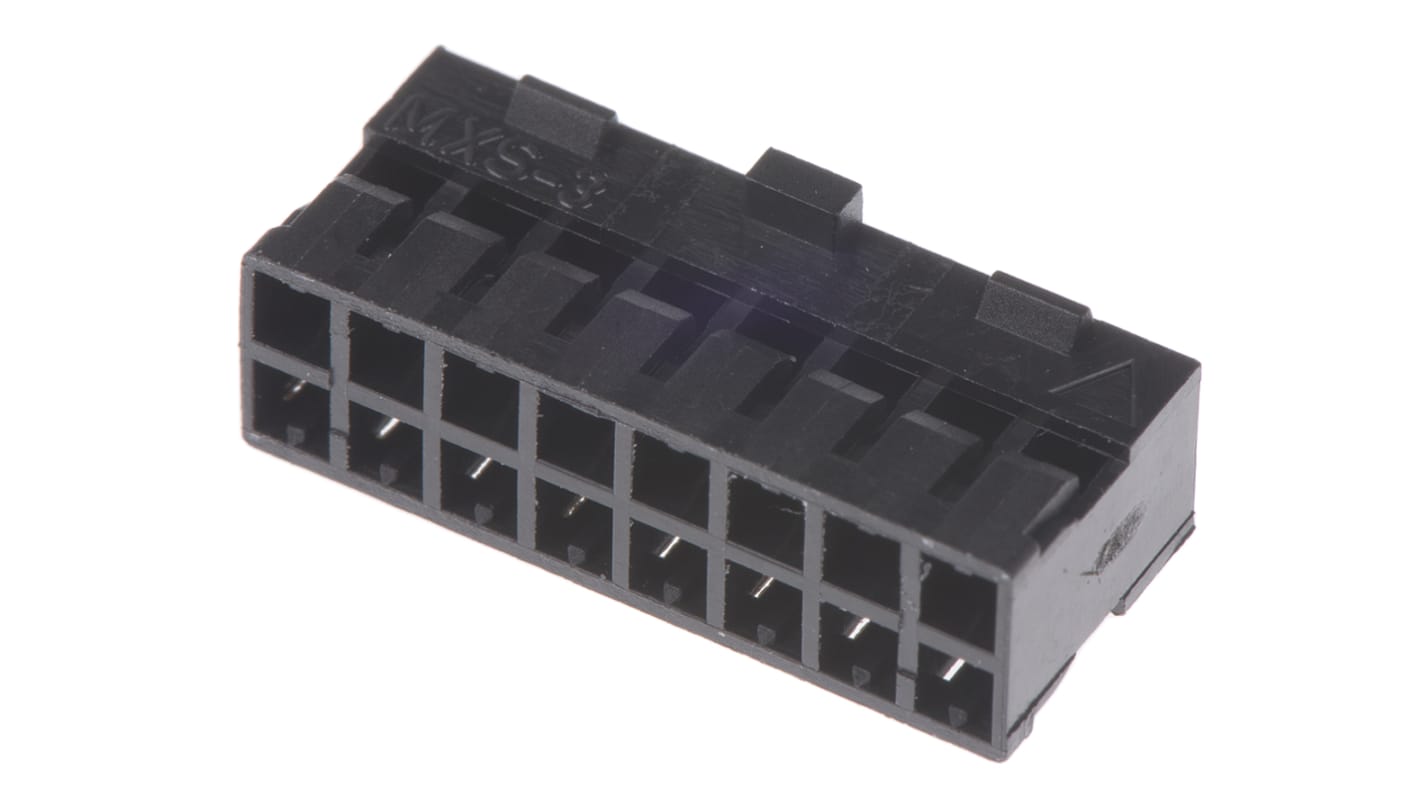

Molex, Milli-Grid Female Connector Housing, 2mm Pitch, 16 Way, 2 Row

51110 series dual row Milli-Grid high density receptacle crimp housings with a 2.00 x 2.00 mm grid pattern for design flexibility. The shrouded design of these 2.00 mm Milli-Grid crimp housings protects the contacts from damage. These Milli-Grid connector housings are available with a centre polarization key that engages with a centre polarisation slot on the mating header to prevent mismating. Versions of these crimp housings are also available with a centre locking ramp and/or side latches for a secure mating connection to the header
Part numbers 51110-xx50 have a plain design
Part numbers 51110-xx51 ((14-32 position) have a centre polarization key and side latches
Part numbers 51110-xx51 (8-12 position) have a centre polarization key
Part numbers 51110-xx60 have a centre locking ramp

• High density 2.00 x 2.00 mm grid design
• Shrouded for contact protection
• Centre polarization key to prevent mismating
• Centre locking ramps and side latches for secure mating connection

These Milli-Grid connectors are suitable for a wide range of wire to board signal applications. Typical applications include printers, fax machines and copiers, servers, routers and switches, automotive audio and GPS, security systems and alarms, set-top boxes and digital media players

This connector housing by Molex is designed for high-density applications where a reliable connection is crucial. With a 2mm pitch and 16 pins, this female connector housing is reliable for wire-to-board setups. The PET housing material ensures durability while maintaining a lightweight design.

• Straight orientation for easy cable mounting
• Centre polarisation key for proper alignment
• Locking ramp for secure connection
• Lead-free construction for environmentally friendly use
• Suitable for 24 to 30 AWG wire range

• Ideal for signal applications in automation systems
• Can be used for wire-to-board connections in electronics industry

Yes, this connector housing is compatible with a wire range of 24 to 30 AWG.

Yes, the locking ramp feature ensures a stable and reliable connection.

Yes, this connector housing is designed for high-density setups in the mechanical industry.

Molex 2.0 mm Milli-Grid Interconnection System

The Milli-Grid connector system is a high density connector system based on a 2 x 2 mm grid pattern offering design flexibility for board to board and cable to board applications. The Milli-Grid family of connectors consists of shrouded and unshrouded headers, single and dual row receptacles, connector housings and crimp terminals
