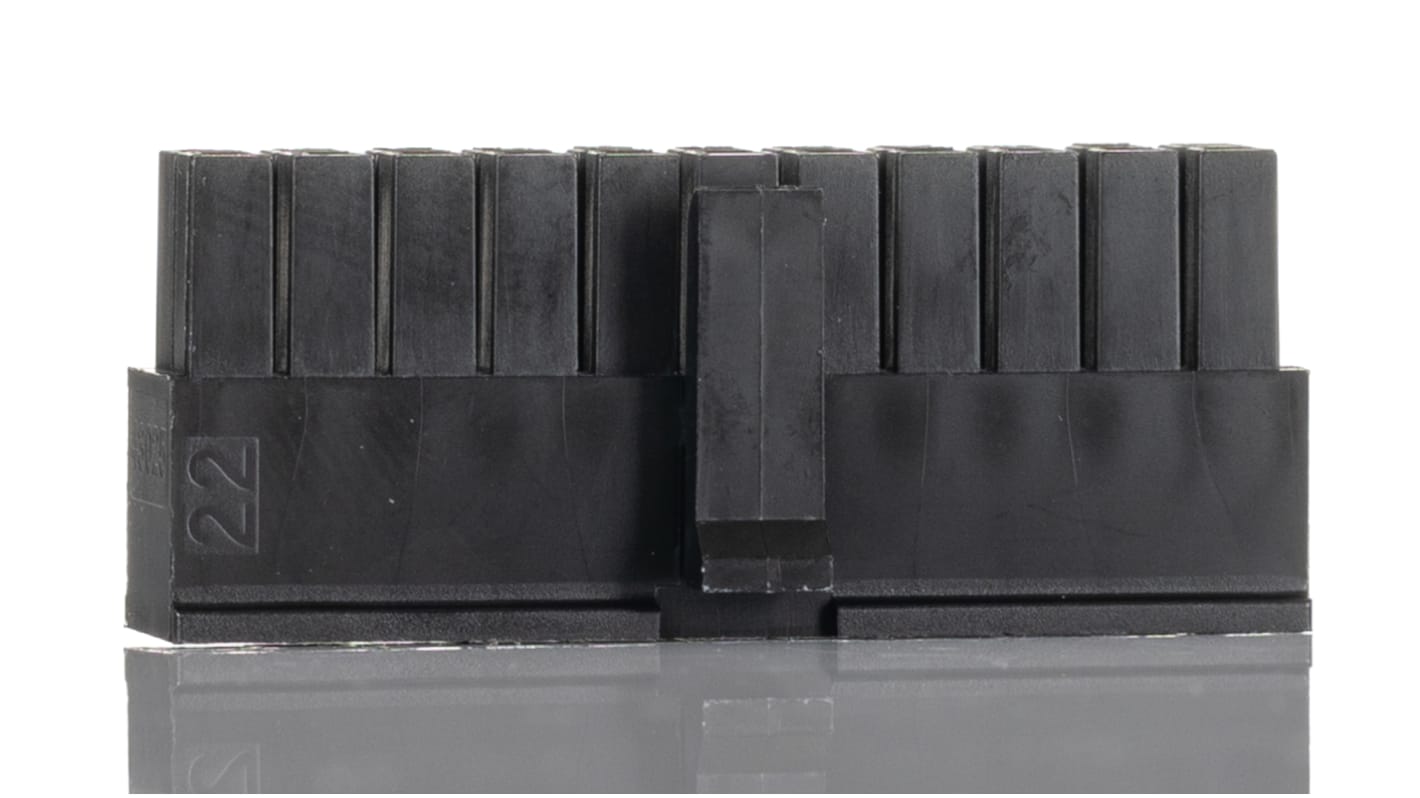

Molex, Micro-Fit 3.0 Female Connector Housing, 3mm Pitch, 22 Way, 2 Row
- RS Stock No.:
- 511-0988
- Mfr. Part No.:
- 43025-2200
- Brand:
- Molex
Bulk discount available
Subtotal (1 pack of 5 units)*
£8.11
(exc. VAT)
£9.73
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 500 unit(s) ready to ship
- Plus 270 unit(s) ready to ship from another location
- Plus 6,505 unit(s) shipping from 19 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 95 | £1.622 | £8.11 |
| 100 - 370 | £1.14 | £5.70 |
| 375 - 1495 | £1.094 | £5.47 |
| 1500 + | £0.90 | £4.50 |
*price indicative
- RS Stock No.:
- 511-0988
- Mfr. Part No.:
- 43025-2200
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Number of Contacts | 22 | |
| Number of Rows | 2 | |
| Pitch | 3mm | |
| Gender | Female | |
| Mounting Type | Cable Mount | |
| Series | Micro-Fit 3.0 | |
| For Use With | Micro-Fit 3.0 Receptacle | |
| Body Orientation | Straight | |
| Length | 33.85mm | |
| Width | 11.56mm | |
| Housing Material | PET | |
| Termination Method | Crimp | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Number of Contacts 22 | ||
Number of Rows 2 | ||
Pitch 3mm | ||
Gender Female | ||
Mounting Type Cable Mount | ||
Series Micro-Fit 3.0 | ||
For Use With Micro-Fit 3.0 Receptacle | ||
Body Orientation Straight | ||
Length 33.85mm | ||
Width 11.56mm | ||
Housing Material PET | ||
Termination Method Crimp | ||
Molex Micro-Fit Connector Housings – Series 43025 & 43020
The 4305 and 43020 series from Molex features 3.0 mm pitch connector housings, they form part of the unique, compact Micro- Fit connector system. A typical application for a connector housing is to provide a receptacle for connectors when they are mounted to a printed circuit board. These types of fittings are an essential component that offer protection for the connector and connection it is housing.
Features and Benefits
• Housings are black in colour
• Positive locking for a secure connection
• Fully polarised which prevents mismating and misalignment
• Some products within the 43020 series feature mounting ears which enable them to be used in panel mount applications
• Dual Row
• Low Halogen
• Wire to wire and wire to board
• Positive locking for a secure connection
• Fully polarised which prevents mismating and misalignment
• Some products within the 43020 series feature mounting ears which enable them to be used in panel mount applications
• Dual Row
• Low Halogen
• Wire to wire and wire to board
Molex Micro-Fit 3.0 Series
