The 4305 and 43020 series from Molex features 3.0 mm pitch connector housings, they form part of the unique, compact Micro- Fit connector system. A typical application for a connector housing is to provide a receptacle for connectors when they are mounted to a printed circuit board. These types of fittings are an essential component that offer protection for the connector and connection it is housing.

• Housings are black in colour
• Positive locking for a secure connection
• Fully polarised which prevents mismating and misalignment
• Some products within the 43020 series feature mounting ears which enable them to be used in panel mount applications
• Dual Row
• Low Halogen
• Wire to wire and wire to board

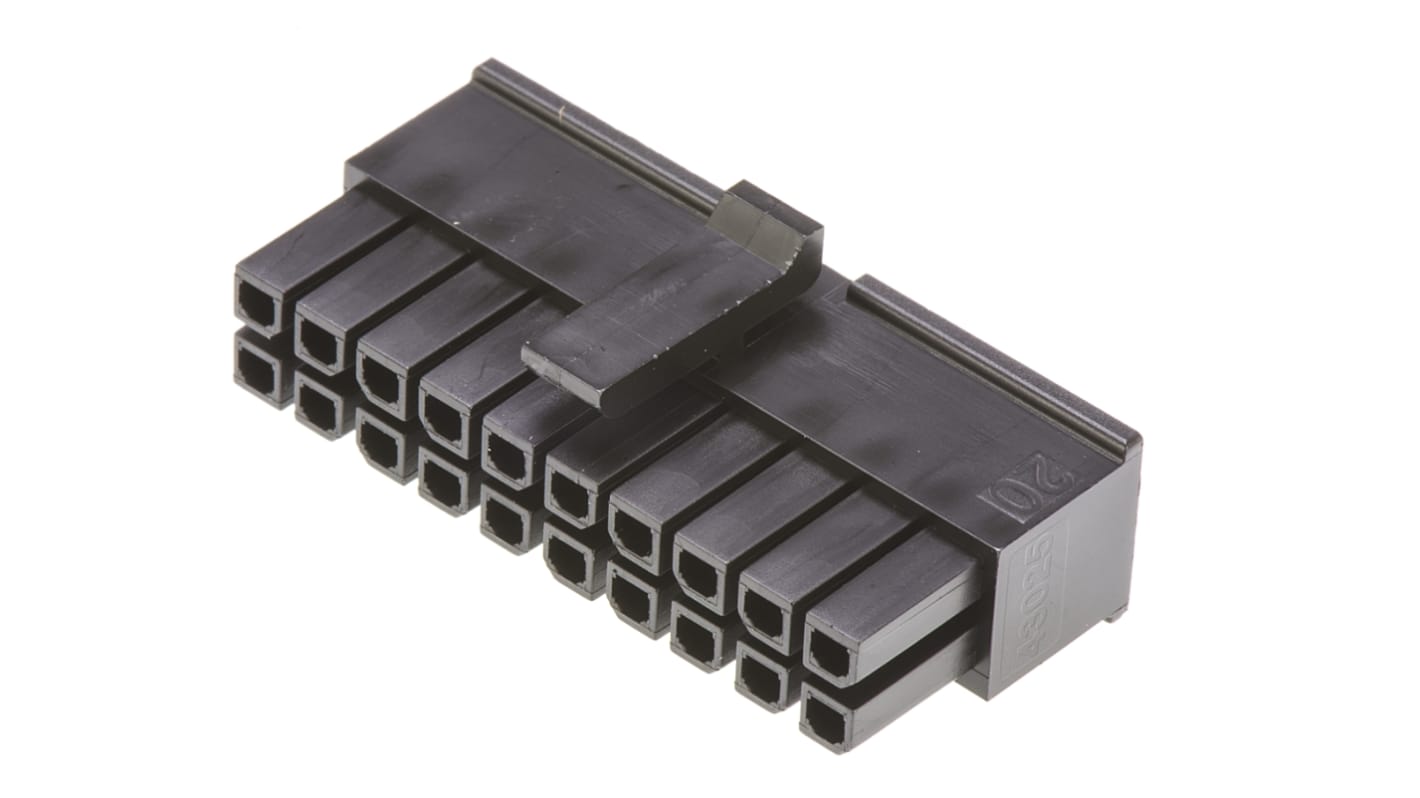

House up to 20 terminal connectors in this double-stacked receptacle from Molex. It's an ideal way to safeguard multiple wire-to-PCB (printed circuit board) connections against dust and debris and can also accommodate wire-to-wire connections. The housing features a positive locking system that secures the terminal into position so it won't come loose or disconnect if your equipment vibrates. You can mount the unit straight to the cable for quick placement – the terminals slide directly into the straight body of the housing for an easy connection.

• Made from tough polyester for long-lasting durability
• Operating temperature range from -40°C to +105°C for safe industrial use
• Low halogen level reduces the risk of toxic gases in case of fire

• Industrial processing
• Automotive manufacturing
• Data communications
• Computer systems

This unit is part of Molex's Micro-Fit 3.0 series and can accommodate terminals in that series. The 11.56mm width and 14mm depth of the connector housing provides a snug fit so the locking mechanism can secure the terminal in place.

Molex Micro-Fit 3.0 Series
