Molex MX150L industrial sealed MX150L receptacle connectors with IP67 environmental sealing and crimp and poke contact application. These MX150L IP67 receptacle connectors have an integrated interface seal and an integrated silicone based mat wire seal which has individual wire openings and a seal cap to protect and provide strain relief to the seal. Additional features of these MX150L receptacles include TPA (terminal position assurance), CPA (connector position assurance) and tactile and audible feedback when mating. Typical applications for these MX150L IP67 receptacles include marine applications and off-road construction equipment.
For MX150L 19420 Series female Contacts see stock number 511-0067 typically
For mating connectors see Molex MX150L 19419 series industrial sealed plug connectors (stock number 511-0219 typically)

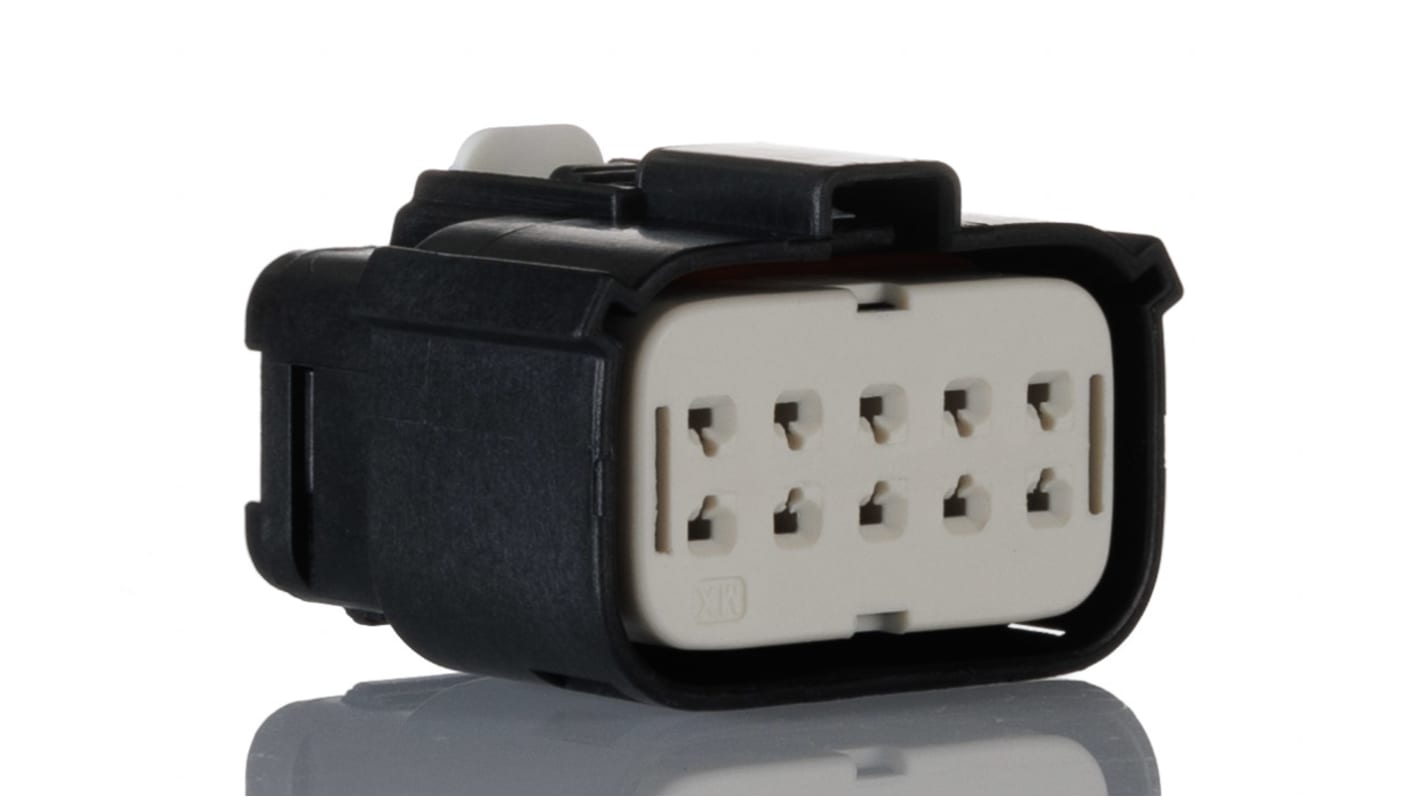

This connector housing is designed for the MX150L series and accommodates up to 10 contacts in 2 rows. Made from durable PBT material and flammability rated 94V-0, it measures 39.67mm in length and 28.86mm in width, ensuring resilience and compatibility in various applications.

• Designed for cable mounting to simplify installation
• Features a 5.84mm pitch for reliable contact alignment
• Straight orientation allows for easy routing and management

• Connecting electrical circuits in automation systems
• Wire-to-board connections in industrial settings
• Applications requiring female terminals for a secure fit

Yes, it is IP67 rated for protection against dust and water.

No, it is not intended for automotive specifications.

Yes, it is compatible with 18-22AWG wire sizes.

Molex MX150L Sealed Connector System

Rugged, environmentally sealed connector system tested to IEC IP 67 that supports both low level signal and power applications up to 18 amps. Applications include: automotive, industrial control, video surveillance, outdoor lighting and machine tools.

Connector housings and seals pre-assembled
2 to 10 Circuit
IP67 rated
Integral Locking Latch
14-16 and 18-22 AWG options
