- RS Stock No.:
- 447-6704
- Mfr. Part No.:
- 43640-0400
- Brand:
- Molex
895 In stock - FREE next working day delivery available
140 available from Europe for delivery within 1 working day(s).
Added
Price Each (In a Pack of 5)
£0.354
(exc. VAT)
£0.425
(inc. VAT)
Units | Per unit | Per Pack* |
5 - 95 | £0.354 | £1.77 |
100 - 370 | £0.232 | £1.16 |
375 - 1495 | £0.222 | £1.11 |
1500 - 2995 | £0.18 | £0.90 |
3000 + | £0.174 | £0.87 |
*price indicative |
- RS Stock No.:
- 447-6704
- Mfr. Part No.:
- 43640-0400
- Brand:
- Molex
Legislation and Compliance
- COO (Country of Origin):
- SG
Product Details
Molex Micro-Fit Connector Housings – Series 43645 & 43640
The 43645 and 43640 series from Molex feature 3.0 mm pitch connector housings, they form part of the compact Micro-Fit connector system. They are typically used for wire to wire or wire to board connections and are ideal for use in a number of applications including Automotive, Electronics, Medical, Communications and Telecommunications.
Features and Benefits
• 3.0 mm pitch
• Housings are black in colour
• Positive locking for a secure connection
• Polarisation to ensure accurate mating
• Panel mounting plugs fitted with ears, enabling them to be used in cable mounting applications
• Single Row
• UL 94V-0 flammability rating
• Housings are black in colour
• Positive locking for a secure connection
• Polarisation to ensure accurate mating
• Panel mounting plugs fitted with ears, enabling them to be used in cable mounting applications
• Single Row
• UL 94V-0 flammability rating
Note
Receptacle accepts female contacts and plug accepts male contacts.
Manufactures Part Numbers 43645-xx08 are Glow Wire Capable.
Manufactures Part Numbers 43645-xx08 are Glow Wire Capable.

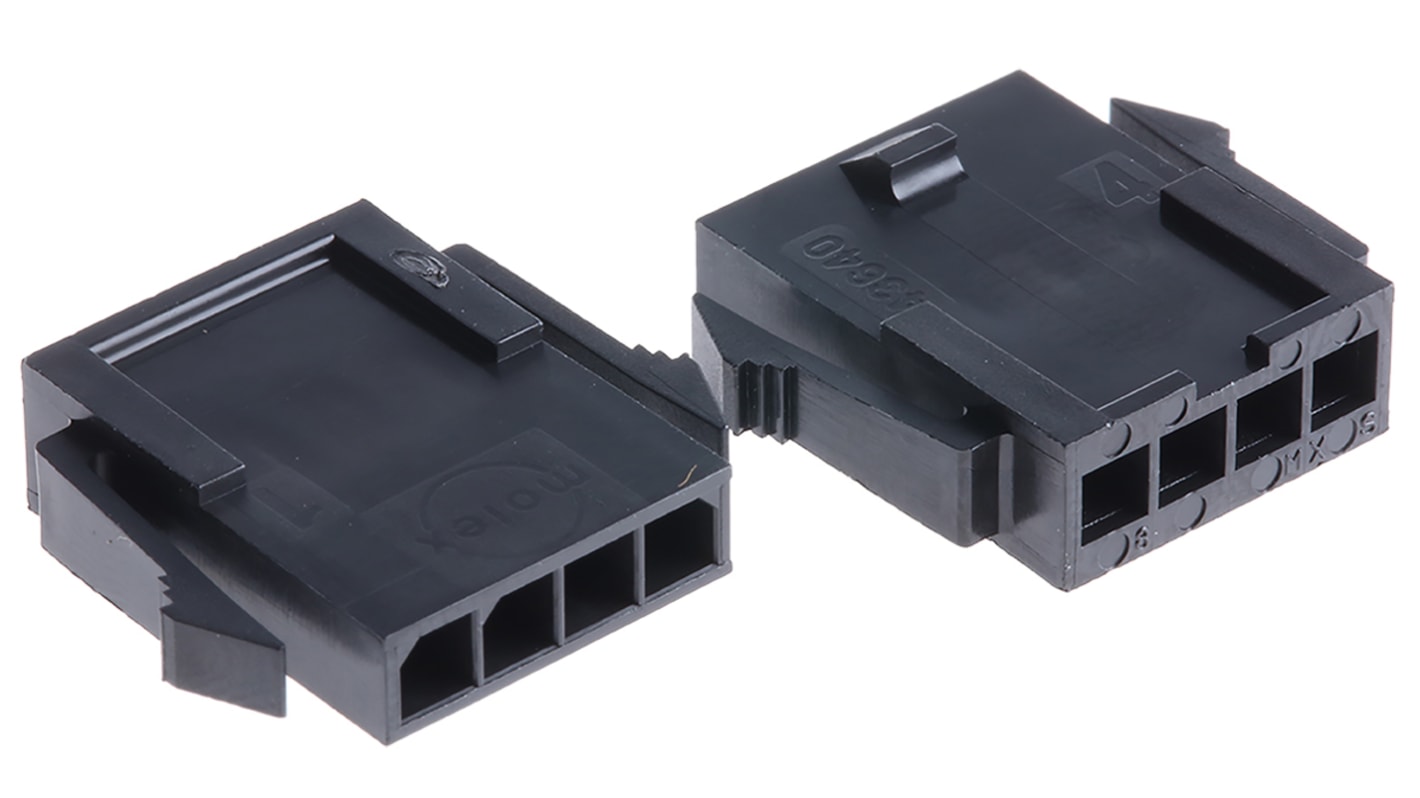

Molex Connector Housing, PET Material, -40°C to +105°C Operating Temperature Range - 43640 Series - 43640-0400
Hold wiring to your PCB firmly in its place with this connector housing from Molex. It's a single-row unit with four contacts, giving you enough room to assemble multiple cables on your board. Lay the foundation by inserting connectors from the Micro-Fit 3.0 range into the housing. The integrated lock-to-mating feature makes sure it maintains a steady hold on conductors, even in vibrating conditions.
Features & Benefits
• Serves as a protective shield to shut contaminants out of connections
• Compact pitch size of 3mm to fit small conductors
• Performs reliably in extreme conditions, as it has an operating temperature range between -40°C and +105°C
• Compact pitch size of 3mm to fit small conductors
• Performs reliably in extreme conditions, as it has an operating temperature range between -40°C and +105°C
Applications
• HVAC systems
• PLCs
• Medical equipment
• Consumer electronics
• Measuring instruments
• PLCs
• Medical equipment
• Consumer electronics
• Measuring instruments
How safe from electrical hazards is this housing?
The housing is made of insulating PET material to reduce the risk of electric shock and short-circuits.
Molex Micro-Fit 3.0 Series
Specifications
Attribute | Value |
---|---|
Number of Contacts | 4 |
Number of Rows | 1 |
Pitch | 3mm |
Gender | Male |
Mounting Type | Panel Mount |
Series | 43640 |
For Use With | Micro-Fit 3.0 Plug |
Body Orientation | Straight |
Length | 12.85mm |
Width | 16.89mm |
Housing Material | Nylon |
