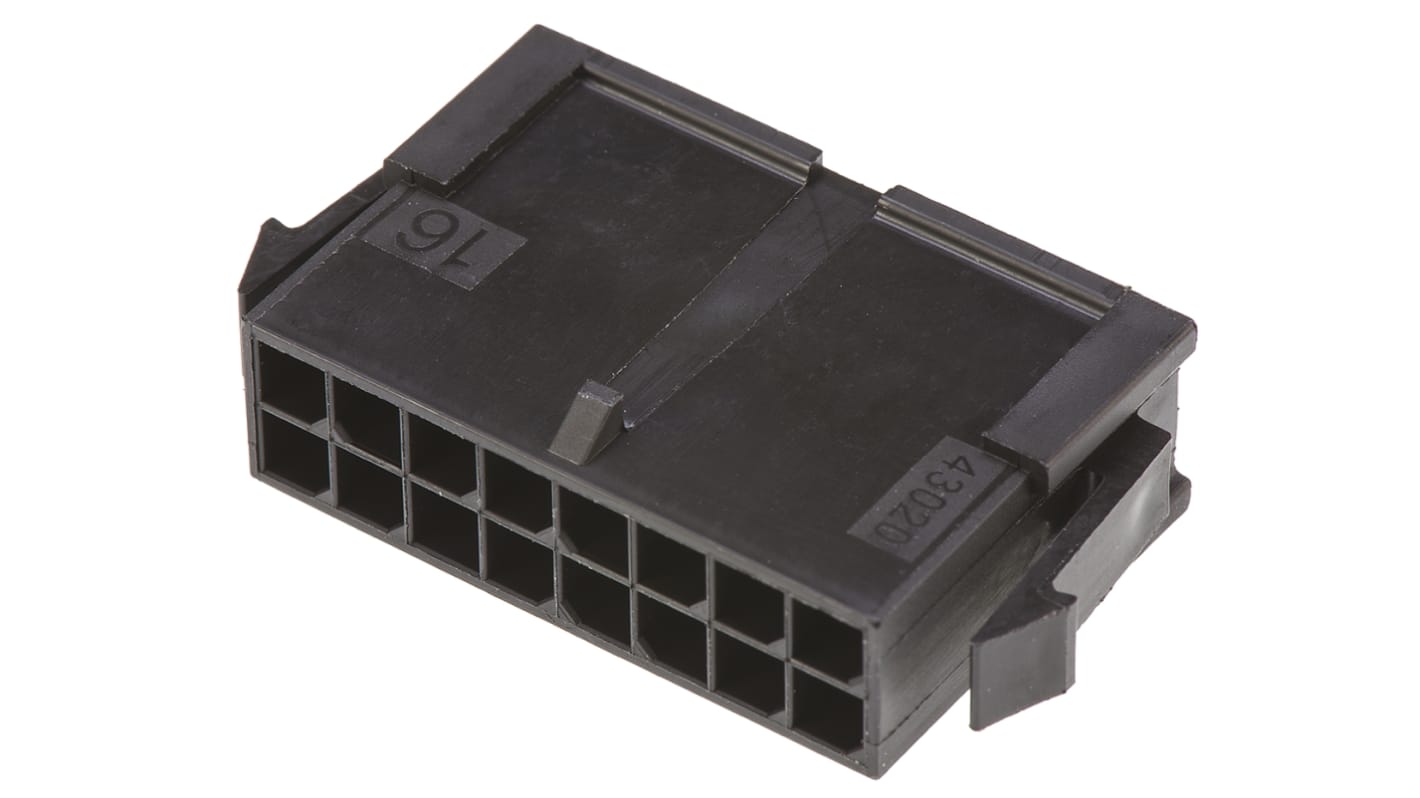

Molex, Micro-Fit 3.0 Male Connector Housing, 3mm Pitch, 16 Way, 2 Row
- RS Stock No.:
- 422-7417
- Mfr. Part No.:
- 43020-1600
- Brand:
- Molex
Bulk discount available
Subtotal (1 pack of 5 units)*
£5.71
(exc. VAT)
£6.85
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 160 unit(s) ready to ship from another location
- Plus 130 unit(s) shipping from 30 October 2025
- Plus 1,400 unit(s) shipping from 17 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 95 | £1.142 | £5.71 |
| 100 - 370 | £0.94 | £4.70 |
| 375 - 1495 | £0.912 | £4.56 |
| 1500 + | £0.89 | £4.45 |
*price indicative
- RS Stock No.:
- 422-7417
- Mfr. Part No.:
- 43020-1600
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Number of Contacts | 16 | |
| Number of Rows | 2 | |
| Pitch | 3mm | |
| Gender | Male | |
| Mounting Type | Panel Mount | |
| Series | Micro-Fit 3.0 | |
| For Use With | Crimp Terminal | |
| Body Orientation | Straight | |
| Length | 24.85mm | |
| Width | 6.85mm | |
| Housing Material | PET | |
Select all | ||
|---|---|---|
Brand Molex | ||
Number of Contacts 16 | ||
Number of Rows 2 | ||
Pitch 3mm | ||
Gender Male | ||
Mounting Type Panel Mount | ||
Series Micro-Fit 3.0 | ||
For Use With Crimp Terminal | ||
Body Orientation Straight | ||
Length 24.85mm | ||
Width 6.85mm | ||
Housing Material PET | ||
- COO (Country of Origin):
- CN
Molex Micro-Fit Connector Housings – Series 43025 & 43020
The 4305 and 43020 series from Molex features 3.0 mm pitch connector housings, they form part of the unique, compact Micro- Fit connector system. A typical application for a connector housing is to provide a receptacle for connectors when they are mounted to a printed circuit board. These types of fittings are an essential component that offer protection for the connector and connection it is housing.
Features and Benefits
• Housings are black in colour
• Positive locking for a secure connection
• Fully polarised which prevents mismating and misalignment
• Some products within the 43020 series feature mounting ears which enable them to be used in panel mount applications
• Dual Row
• Low Halogen
• Wire to wire and wire to board
• Positive locking for a secure connection
• Fully polarised which prevents mismating and misalignment
• Some products within the 43020 series feature mounting ears which enable them to be used in panel mount applications
• Dual Row
• Low Halogen
• Wire to wire and wire to board
Molex Connector Housing, Panel Mounting, 2.231g Weight - Micro-Fit 3.0 Series - 43020-1600
Add multiple crimp connections to your PCB with this connector housing from Molex. Its double-row design accommodates up to 16 wires, so it gives you a solid base when you have multiple circuits to handle. Panel-mount ears make installation simple and you get a secure fix, even in setups where vibration and jostling are expected.
Features & Benefits
• Compact dimensions of 24.85 (L) x 6.85 (W) x 24.77mm (D) for easy handling and space efficiency
• PET housing resists corrosion and shrugs off impact
• Straight body orientation for a neat fit on your PCB and easy access to contacts
• Standard 3mm pitch for easy compatibility
• PET housing resists corrosion and shrugs off impact
• Straight body orientation for a neat fit on your PCB and easy access to contacts
• Standard 3mm pitch for easy compatibility
Applications
• Factory automation
• Electronics manufacturing
• Industrial power supplies
• Electronics manufacturing
• Industrial power supplies
Does this housing have any fire-safety features?
Yes, this connector housing is made from flame-retardant material, so it self-extinguishes in under 10 seconds to boost workplace safety.
