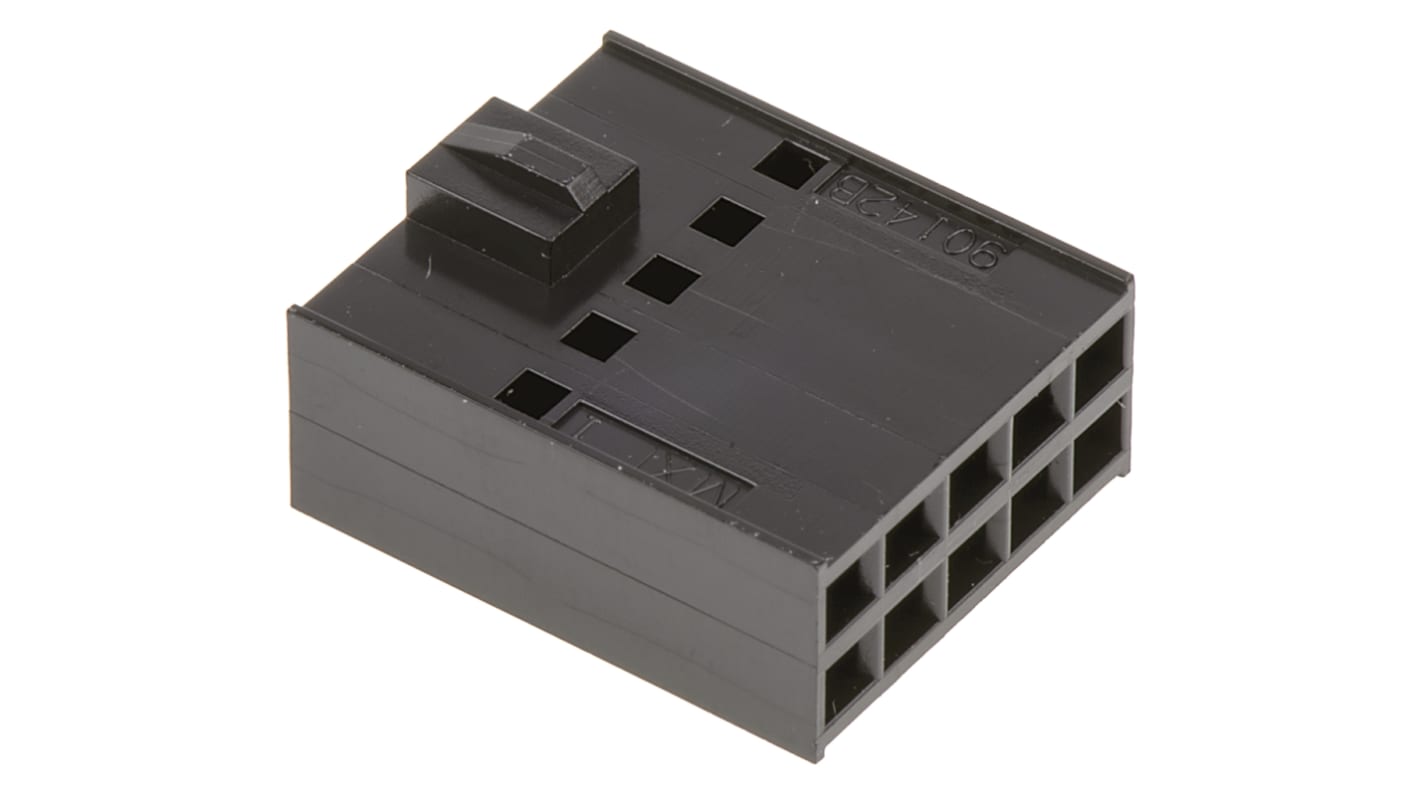

    Molex, C-Grid III Female Connector Housing, 2.54mm Pitch, 10 Way, 2 Row

    RS Stock No.:
    360-6229
    Mfr. Part No.:
    90142-0010
    Brand:
    Molex
    Molex
    View all Wire Housings & Plugs
    7750 In stock - FREE next working day delivery available
    650 available from Europe for delivery within 1 working day(s).
    Add to Basket
    Units

    Added

    Price Each (In a Pack of 5)

    £0.862

    (exc. VAT)

    £1.034

    (inc. VAT)

    UnitsPer unitPer Pack*
    5 - 95£0.862£4.31
    100 - 370£0.652£3.26
    375 - 1495£0.618£3.09
    1500 - 2995£0.474£2.37
    3000 +£0.432£2.16
    *price indicative
    Packaging Options:
    RS Stock No.:
    360-6229
    Mfr. Part No.:
    90142-0010
    Brand:
    Molex

    Legislation and Compliance


    Product Details

    Molex C-Grid III Interconnection System Connector Housings


    This range of Connector Housings feature a 2.54 mm pitch and form part of the C-Grid III interconnection system from Molex. This system offers post and receptacle interconnection, with design flexibility and modular components that provide a wide range of interconnection packaging alternatives within the electronic markets. Ideal for use with a wide range of commercial and consumer applications.


    Features and Benefits


    • 2.54 mm pitch
    • 1 to 80 Circuits
    • Dual and single row housing
    • Black in colour
    • Wire to board configurations and fittings
    • Uniform locking system in place on all contacts
    • Interchangeable housing styles


    Molex Female Connector Housing, 10 Way, 2 Rows - C-Grid III Series - 90142-0010


    Protect your wire-to-PCB (printed circuit board) connections with this connector housing from Molex. The housing is made of a polyphenylene oxide (PPO) material that provides good electrical insulation and is highly resistant to heat distortion, making it a reliable choice for demanding electrical applications. The material also protects the connection from weathering by keeping your wires shielded from moisture and dust.


    Features & Benefits


    • Wide operating temperature range of -55°C to +105°C for use in extreme industrial environments
    • 10 contacts arranged in two rows to save space and keep connections organised
    • Compact dimensions of 12.7 (length) x 7.72 (width) x 15.24mm (depth) for use on PCBs where space is limited
    • Light weight of 0.72g to prevent additional bulk or strain on your equipment
    • Compatible with Molex's C-Grid III series of connectors for ease of assembly


    Applications


    • Sound systems
    • Automotive industry
    • Office equipment


    How do I connect cables to the housing?


    The housing uses a locking system that makes it simple to insert your cables and install them securely. The contacts are fully polarised to prevent accidental mismating or damage to the cable during installation.


    Standards

    DIN 41651; HE13/14


    2.54mm Molex C-Grid III Range


    Specifications

    AttributeValue
    Number of Contacts10
    Number of Rows2
    Pitch2.54mm
    GenderFemale
    Mounting TypeCable Mount
    SeriesC-Grid III
    For Use WithC-Grid III Connector
    Body OrientationStraight
    Length12.7mm
    Width7.72mm
    Housing MaterialPPO
