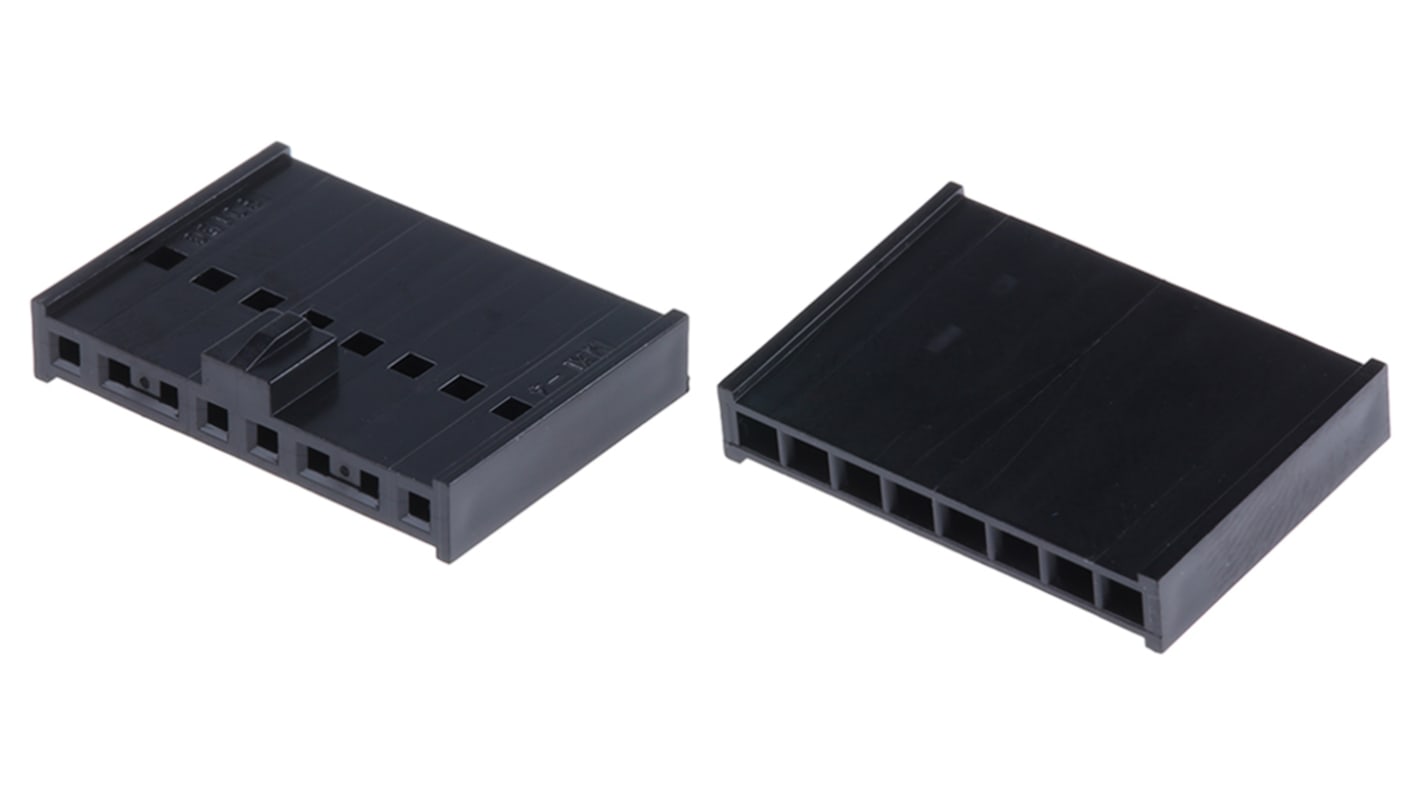

Molex, C-Grid III Female Connector Housing, 2.54mm Pitch, 8 Way, 1 Row
- RS Stock No.:
- 360-6106
- Mfr. Part No.:
- 90156-0148
- Brand:
- Molex
1030 In stock - FREE next working day delivery available
25 available from Europe for delivery within 1 working day(s).
Added
Price Each (In a Pack of 5)
£0.664
(exc. VAT)
£0.797
(inc. VAT)
| Units | Per unit | Per Pack* |
| 5 - 45 | £0.664 | £3.32 |
| 50 - 120 | £0.476 | £2.38 |
| 125 - 245 | £0.448 | £2.24 |
| 250 - 495 | £0.43 | £2.15 |
| 500 + | £0.412 | £2.06 |
| *price indicative | ||
- RS Stock No.:
- 360-6106
- Mfr. Part No.:
- 90156-0148
- Brand:
- Molex
Technical Reference
Legislation and Compliance
Product Details
Molex C-Grid III Interconnection System Connector Housings
This range of Connector Housings feature a 2.54 mm pitch and form part of the C-Grid III interconnection system from Molex. This system offers post and receptacle interconnection, with design flexibility and modular components that provide a wide range of interconnection packaging alternatives within the electronic markets. Ideal for use with a wide range of commercial and consumer applications.
Features and Benefits
• 2.54 mm pitch
• 1 to 80 Circuits
• Dual and single row housing
• Black in colour
• Wire to board configurations and fittings
• Uniform locking system in place on all contacts
• Interchangeable housing styles
• 1 to 80 Circuits
• Dual and single row housing
• Black in colour
• Wire to board configurations and fittings
• Uniform locking system in place on all contacts
• Interchangeable housing styles
Standards
DIN 41651; HE13/14
2.54mm Molex C-Grid III Range
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 8 |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Gender | Female |
| Series | C-Grid III |
| For Use With | C-Grid III Connector |
| Body Orientation | Straight |
| Length | 21.38mm |
| Width | 5.35mm |
| Housing Material | PPO |
- RS Stock No.:
- 360-6106
- Mfr. Part No.:
- 90156-0148
- Brand:
- Molex
