Phoenix Contact, KGG-MSTB 2.5 Terminal Block Housing, 4 Way
- RS Stock No.:
- 292-9436
- Mfr. Part No.:
- 1803882
- Brand:
- Phoenix Contact
Bulk discount available
Subtotal (1 unit)*
£4.08
(exc. VAT)
£4.90
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 106 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 24 | £4.08 |
| 25 - 74 | £3.68 |
| 75 - 199 | £3.27 |
| 200 - 399 | £3.10 |
| 400 + | £2.96 |
*price indicative
- RS Stock No.:
- 292-9436
- Mfr. Part No.:
- 1803882
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Number of Contacts | 4 | |
| Mounting Type | Cable Mount | |
| Series | KGG-MSTB 2.5 | |
| Length | 20mm | |
| Width | 19.8mm | |
Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Number of Contacts 4 | ||
Mounting Type Cable Mount | ||
Series KGG-MSTB 2.5 | ||
Length 20mm | ||
Width 19.8mm | ||
Phoenix Contact KGG-MSTB Cable Housings
A range of green, ABS plug-in cable housings that consist of two snap-locking half-shells that can be manually fitted together
Features and Benefits
• Straight cable outlet for sequencing several cable housings
• Easier plug-in and disconnection processes
• Strain relief for the cables provided by cable binder or a clamp
• Full latching of both half shells of the cable housing
• UL94-HB Flammability
• Easier plug-in and disconnection processes
• Strain relief for the cables provided by cable binder or a clamp
• Full latching of both half shells of the cable housing
• UL94-HB Flammability

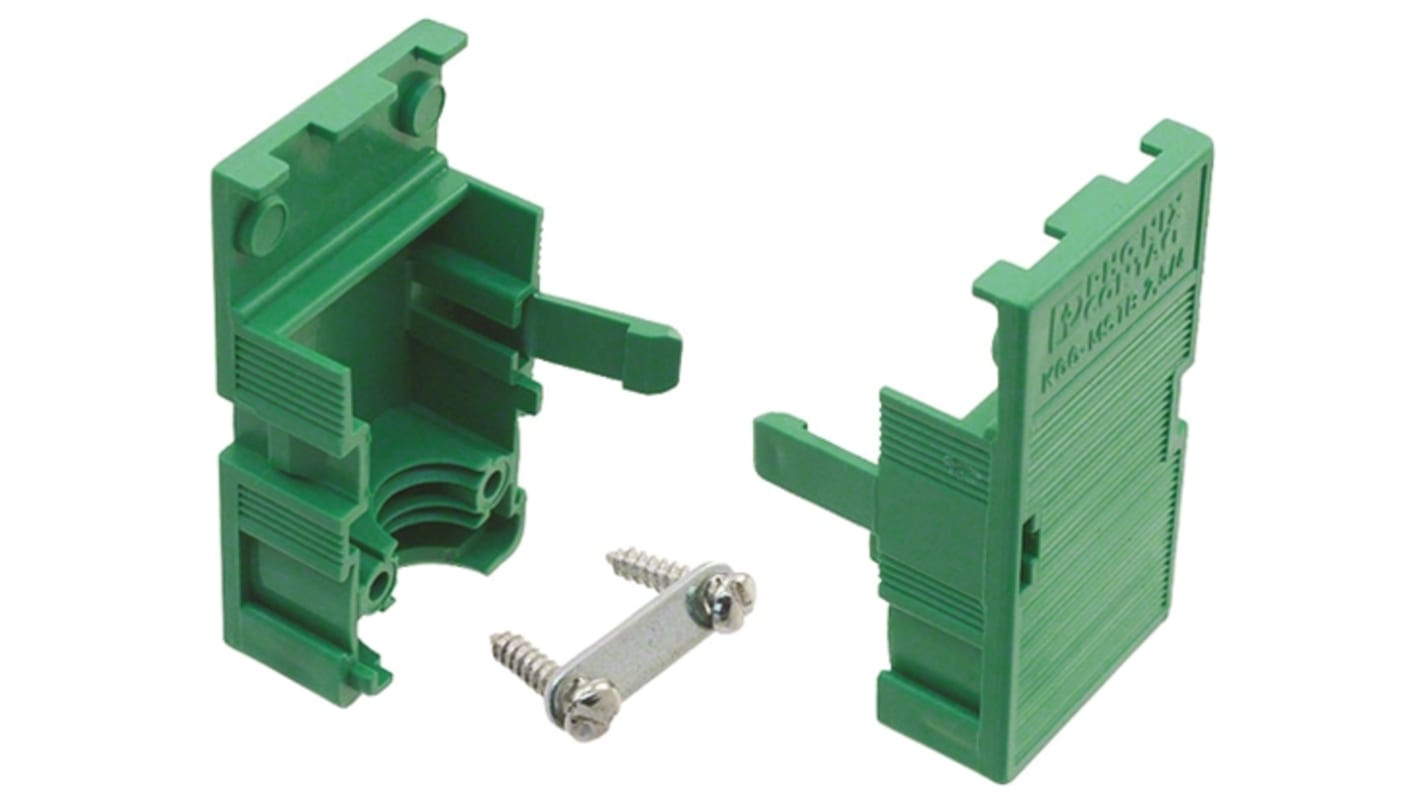

Phoenix Contact Terminal Block Housing, 4 Way, Cable Mount - KGG-MSTB 2,5/ 4 - 1803882
Protect your cable connectors with this terminal block housing from Phoenix Contact. As it has four contact positions, it's a safe way to terminate up to four circuits at once, for efficient system protection. The device's robust ABS body protects your wiring against impacts to minimise disruption caused by moving machinery. With its compact dimensions of 19 (width) x 37 (height) x 20mm (depth), the unit simply fits in busy set-ups for versatile installation.
As this block comes as two half-shells that simply snap together, assembly is fast. Its joining points include built-in latches to lock the half-shells together when assembled to prevent separation from jostling. The casing's straight orientation means it's easy to connect your cables and makes for convenient wiring adjustment. By including space to label your wiring, the housing supports fast connection identification and effective troubleshooting.
As this block comes as two half-shells that simply snap together, assembly is fast. Its joining points include built-in latches to lock the half-shells together when assembled to prevent separation from jostling. The casing's straight orientation means it's easy to connect your cables and makes for convenient wiring adjustment. By including space to label your wiring, the housing supports fast connection identification and effective troubleshooting.
• Certified UL 94 with an inflammability rating of HB for flame resistance
• EAC-approved to indicate electrical reliability
• Screw terminals secure wiring against vibrations to eliminate disruption from shocks
• Distinctive green colour for immediate identification in complex systems
• EAC-approved to indicate electrical reliability
• Screw terminals secure wiring against vibrations to eliminate disruption from shocks
• Distinctive green colour for immediate identification in complex systems
