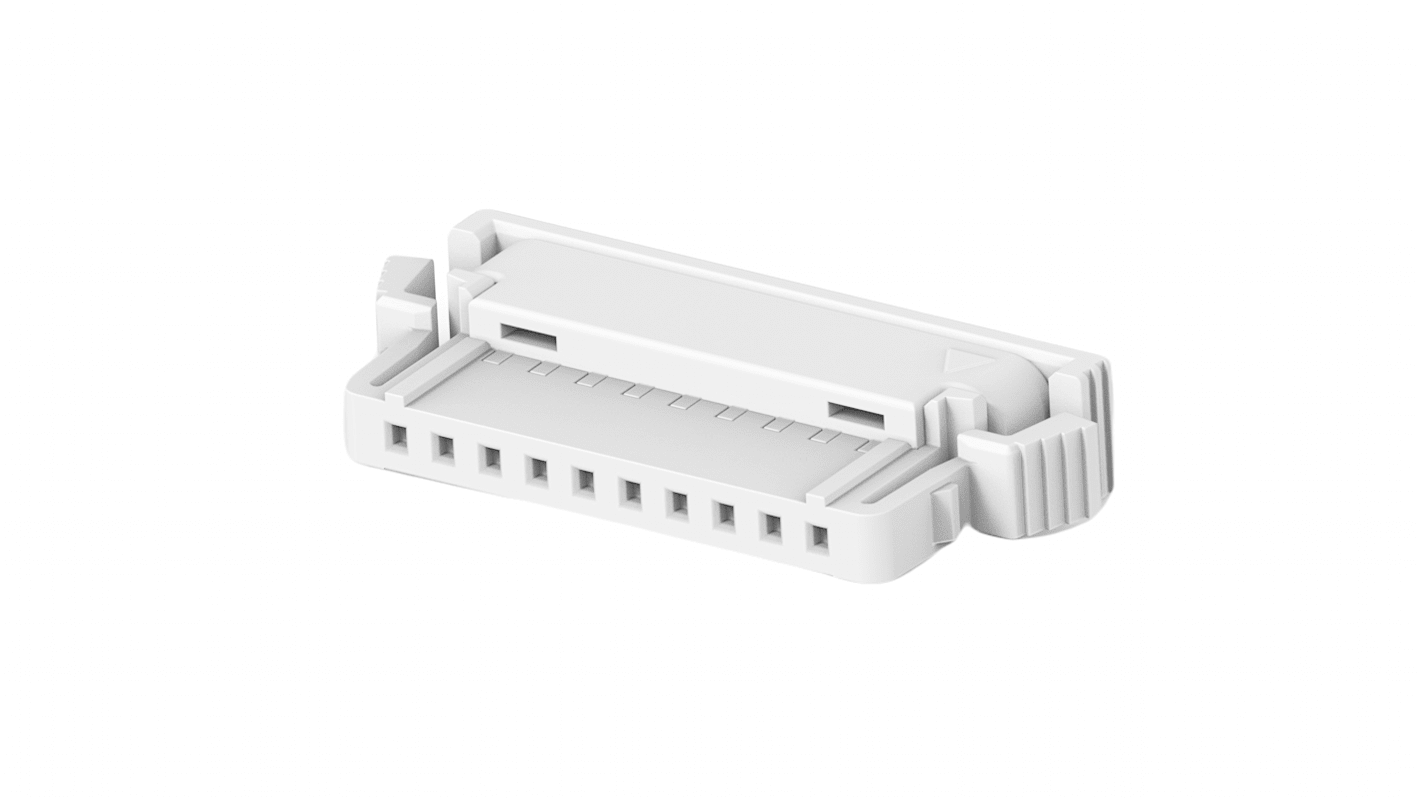

ERNI, 11997 Female Connector Housing, 2mm Pitch, 10 Way, 1 Row
- RS Stock No.:
- 287-4258
- Mfr. Part No.:
- 119977-E
- Brand:
- ERNI
Bulk discount available
Subtotal (1 bag of 500 units)*
£366.50
(exc. VAT)
£440.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
---|---|---|
500 - 500 | £0.733 | £366.50 |
1000 + | £0.707 | £353.50 |
*price indicative
- RS Stock No.:
- 287-4258
- Mfr. Part No.:
- 119977-E
- Brand:
- ERNI
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | ERNI | |
Number of Contacts | 10 | |
Number of Rows | 1 | |
Pitch | 2mm | |
Gender | Female | |
Mounting Type | Surface Mount | |
Series | 11997 | |
For Use With | Cable To Board Connector | |
Body Orientation | Straight | |
Length | 26.5mm | |
Width | 12.5mm | |
Housing Material | Polyamide | |
Termination Method | DIP Solder | |
Select all | ||
---|---|---|
Brand ERNI | ||
Number of Contacts 10 | ||
Number of Rows 1 | ||
Pitch 2mm | ||
Gender Female | ||
Mounting Type Surface Mount | ||
Series 11997 | ||
For Use With Cable To Board Connector | ||
Body Orientation Straight | ||
Length 26.5mm | ||
Width 12.5mm | ||
Housing Material Polyamide | ||
Termination Method DIP Solder | ||
- COO (Country of Origin):
- TH
The ERNI iBridge ultra cable to board connector offers a reliable and robust connection system, ideal for applications requiring durability. Featuring a Terminal Position Assurance (TPA) retainer, it serves as a secondary lock for female contacts within the housing, ensuring resistance against strong vibrations, notably in automotive settings. However, its versatility extends beyond automotive use, making it suitable for industrial automation, telecommunications, and healthcare applications. With a compact design, iBridge Ultra supports various applications between control units and local components like sensors, motors, switches, fans, heating elements, fuses, or LEDs.
Temperature range from -40 to +100 °C
Secondary locking of the crimp contacts in the housing
Polarity reversal protection design
Double-sided interlocking
Secondary locking of the crimp contacts in the housing
Polarity reversal protection design
Double-sided interlocking
