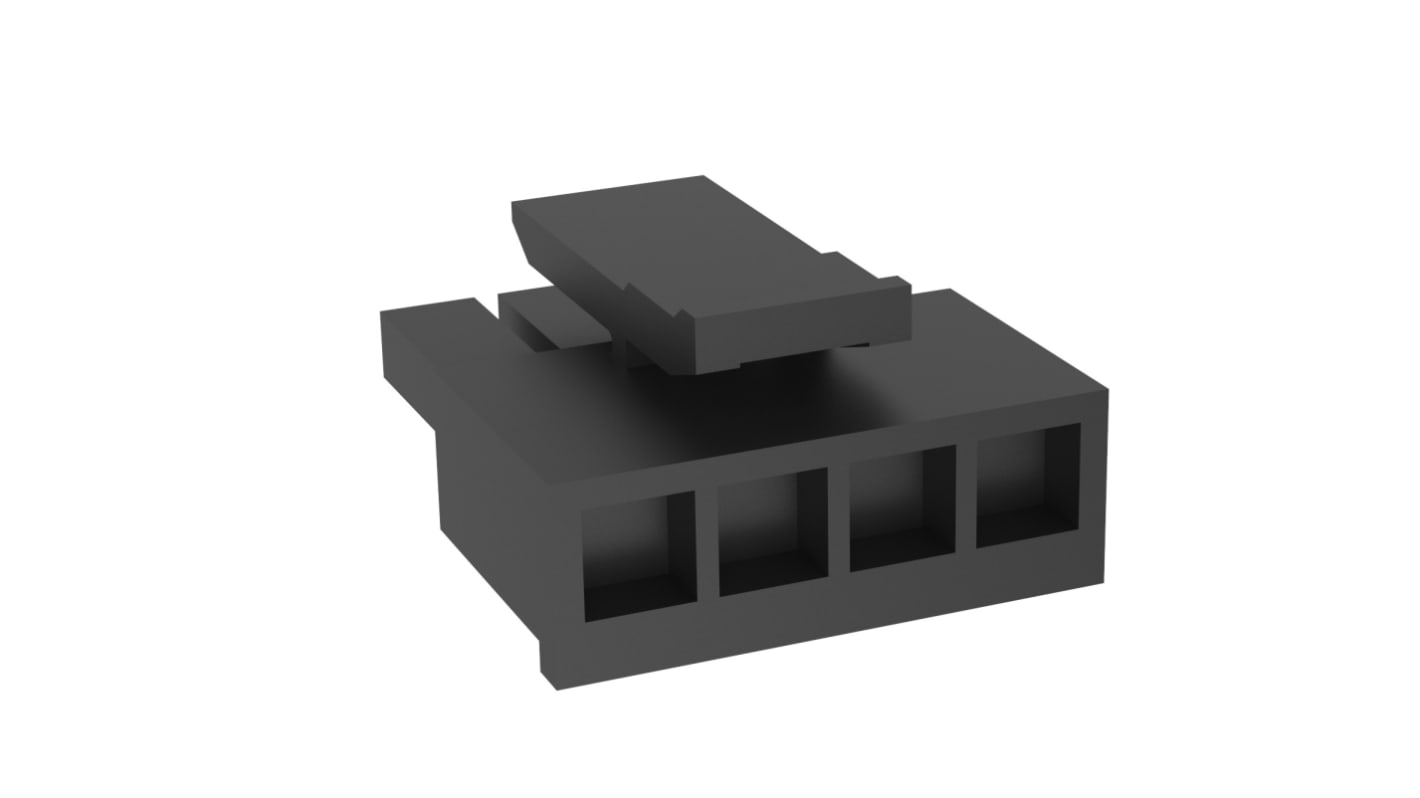

Amphenol Communications Solutions, G88MPH0421 Housing Plug, 3 mm Pitch, 4 Way, 1 Row Vertical
- RS Stock No.:
- 286-5172
- Mfr. Part No.:
- G88MPH0421CEU
- Brand:
- Amphenol Communications Solutions
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 286-5172
- Mfr. Part No.:
- G88MPH0421CEU
- Brand:
- Amphenol Communications Solutions
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Amphenol Communications Solutions | |
| Product Type | Housing Plug | |
| Number of Contacts | 4 | |
| Number of Rows | 1 | |
| Pitch | 3mm | |
| Mount Type | Cable | |
| Orientation | Vertical | |
| Series | G88MPH0421 | |
| Standards/Approvals | RoHS | |
| Width | 14 mm | |
| Housing Material | Polyamide | |
| Length | 12.85mm | |
| Select all | ||
|---|---|---|
Brand Amphenol Communications Solutions | ||
Product Type Housing Plug | ||
Number of Contacts 4 | ||
Number of Rows 1 | ||
Pitch 3mm | ||
Mount Type Cable | ||
Orientation Vertical | ||
Series G88MPH0421 | ||
Standards/Approvals RoHS | ||
Width 14 mm | ||
Housing Material Polyamide | ||
Length 12.85mm | ||
- COO (Country of Origin):
- CN
The Amphenol Communications Solutions micro power plus 3.0 connector system is a 3.00mm pitch power connector designed for wire-to-board applications. It is mainly used for power applications and supports current rating up to 12.5A per pin and wire gauge range from 30 to 16AWG. It comes in 2 to 24 circuits for dual row and 2 to 12 circuits for single row.
Compact power connector with current rating of 12.5A per pin
Through hole and SMT option
Different configurations to meet a variety of application needs
Scoop proof housings
Prevents mismating between header and receptacle
