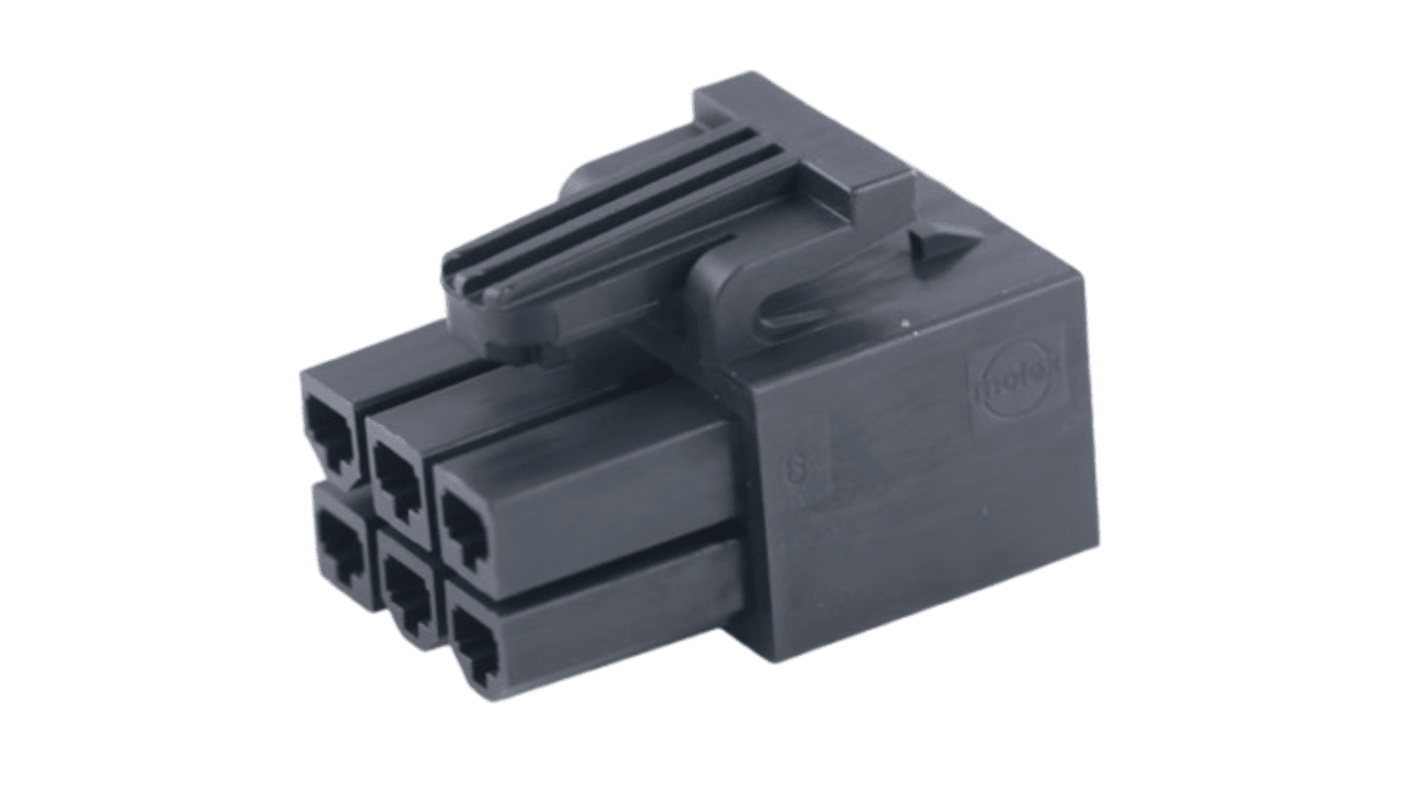

Molex, 172708 Receptacle PCB Connector Housing, 4.2mm Pitch, 6 Way, 2 Row
- RS Stock No.:
- 201-0216
- Mfr. Part No.:
- 1727081006
- Brand:
- Molex
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 201-0216
- Mfr. Part No.:
- 1727081006
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Number of Contacts | 6 | |
| Number of Rows | 2 | |
| Pitch | 4.2mm | |
| Gender | Receptacle | |
| Series | 172708 | |
| Body Orientation | Straight | |
| Housing Material | Nylon | |
Select all | ||
|---|---|---|
Brand Molex | ||
Number of Contacts 6 | ||
Number of Rows 2 | ||
Pitch 4.2mm | ||
Gender Receptacle | ||
Series 172708 | ||
Body Orientation Straight | ||
Housing Material Nylon | ||
- COO (Country of Origin):
- US
Molex 172708 Series PCB Connector Housing, 6 Contacts, Straight Body Orientation - 1727081006
This PCB connector housing is a member of the Mini-Fit family of power connectors. Designed as a receptacle housing specifically for 4.20mm pitch connections, it features a robust and sleek designThis connector accommodates up to six circuits within its dual-row configuration, styled for straight body orientation. Made from durable nylon, it offers reliability and resilience for diverse applications in the automation, electronics, and electrical industries.
Features & Benefits
• Designed for 6 circuits, enabling efficient connections and minimised space usage
• Dual-row configuration optimises organisation and integrates seamlessly into designs
• Glow-wire capable, ensuring safety under high-temperature conditions
• Lock mechanism enhances stability and prevents unintentional disconnections
• Nylon housing provides durability against wear and environmental factors
• Compatible with multiple Molex connector types for versatile electrical solutions
• Dual-row configuration optimises organisation and integrates seamlessly into designs
• Glow-wire capable, ensuring safety under high-temperature conditions
• Lock mechanism enhances stability and prevents unintentional disconnections
• Nylon housing provides durability against wear and environmental factors
• Compatible with multiple Molex connector types for versatile electrical solutions
Applications
• Used with Mini-Fit Jrpluggable terminals for reliable connections
• Suitable for power in wire-to-board configurations
• Commonly employed in wire-to-wire interconnections for automation systems
• Ideal for use in harsh environments due to its operating temperature range
• Suitable for power in wire-to-board configurations
• Commonly employed in wire-to-wire interconnections for automation systems
• Ideal for use in harsh environments due to its operating temperature range
What is the maximum operating temperature range for this housing?
The housing operates effectively within a temperature range of -40° to +105°C, making it suitable for various environments.
How does the lock feature improve connection reliability?
The lock mechanism ensures a secure mating interface, reducing the risk of accidental disconnections during operation.
What types of terminals can be used with this connector?
It is compatible with Mini-Fit TPA2 crimp terminals, providing flexibility in terminal choice for different applications.
Can this housing be used in outdoor applications?
Yes, the durable nylon material and robust design make it suitable for outdoor use, provided that additional environmental protection is considered.
