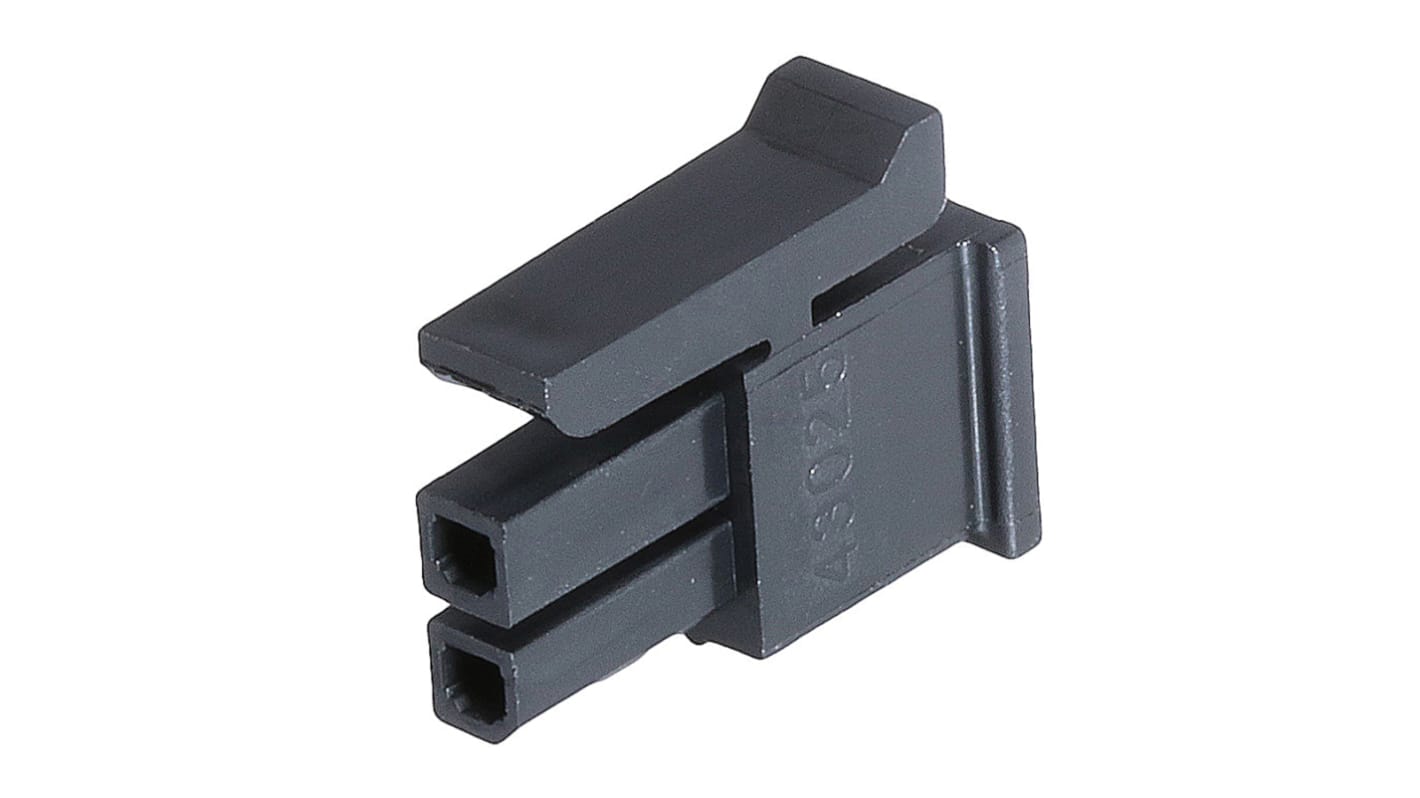

Molex, Micro-Fit Female Crimp Connector Housing, 3mm Pitch, 2 Way, 2 Row
- RS Stock No.:
- 189-1508
- Mfr. Part No.:
- 43025-0200
- Brand:
- Molex
Bulk discount available
Subtotal (1 bag of 5000 units)*
£750.00
(exc. VAT)
£900.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 40,000 unit(s) ready to ship
- Plus 40,000 unit(s) shipping from 03 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 5000 - 5000 | £0.15 | £750.00 |
| 10000 - 10000 | £0.142 | £710.00 |
| 15000 - 15000 | £0.135 | £675.00 |
| 20000 - 20000 | £0.127 | £635.00 |
| 25000 + | £0.12 | £600.00 |
*price indicative
- RS Stock No.:
- 189-1508
- Mfr. Part No.:
- 43025-0200
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Number of Contacts | 2 | |
| Number of Rows | 2 | |
| Pitch | 3mm | |
| Gender | Female | |
| Mounting Type | Cable Mount | |
| Series | Micro-Fit | |
| For Use With | 43030 Micro-Fit 3.0 Female Crimp Terminals, 45773 Micro-Fit 3.0 Female Crimp Terminals, 46235 Micro-Fit RMF Female Crimp Terminals | |
| Length | 3.86mm | |
| Width | 14mm | |
| Housing Material | Nylon | |
Select all | ||
|---|---|---|
Brand Molex | ||
Number of Contacts 2 | ||
Number of Rows 2 | ||
Pitch 3mm | ||
Gender Female | ||
Mounting Type Cable Mount | ||
Series Micro-Fit | ||
For Use With 43030 Micro-Fit 3.0 Female Crimp Terminals, 45773 Micro-Fit 3.0 Female Crimp Terminals, 46235 Micro-Fit RMF Female Crimp Terminals | ||
Length 3.86mm | ||
Width 14mm | ||
Housing Material Nylon | ||
Molex Micro-Fit 3.0 Connector Housing, 2 Way, Dual Row - 43025 Series - 43025-0200
This connector housing from Molex delivers power in a compact package. It has a 3mm pitch and is well-suited to crimp connections in wire-to-wire and wire-to-board configurations. The fully isolated unit is protected from dust and dirt as well as potential damage during handling and mating. It's made from hard-wearing plastic, which offers excellent resistance to above-average wear and tear, as well as good insulation properties to prevent stray electrical current from causing damage. As this is a low-halogen material, it won't release any toxic fumes in the event of a fire.
• Fully polarised housing to prevent mismatching
• Includes positive latching to ensure a stable and highly reliable connection
• Flame retardant for improved safety during operation
• Space-saving dimensions of 3.86 (L) x 8.28 (W) x 14mm (D) for maximum packing efficiency on a PCB (printed circuit board)
• Includes positive latching to ensure a stable and highly reliable connection
• Flame retardant for improved safety during operation
• Space-saving dimensions of 3.86 (L) x 8.28 (W) x 14mm (D) for maximum packing efficiency on a PCB (printed circuit board)
Applications
• Medical technology
• Communications and networking
• Power supply
• Food and beverage industry
• Communications and networking
• Power supply
• Food and beverage industry
Can I recycle this connector housing?
This Molex receptacle is made from PET (polyethylene terephthalate) plastic which is globally recognised as a safe, recyclable material. It's also light, which reduces its transportation-related carbon emissions.
