Molex, Mini-Fit Female Crimp Connector Housing, 4.2mm Pitch, 2 Way, 2 Row
- RS Stock No.:
- 189-1362
- Mfr. Part No.:
- 39-01-2020
- Brand:
- Molex
Save 24% when you buy 33000 units
Subtotal (1 bag of 11000 units)*
£1,507.00
(exc. VAT)
£1,804.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 209,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 11000 - 11000 | £0.137 | £1,507.00 |
| 22000 - 22000 | £0.118 | £1,298.00 |
| 33000 + | £0.103 | £1,133.00 |
*price indicative
- RS Stock No.:
- 189-1362
- Mfr. Part No.:
- 39-01-2020
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Number of Contacts | 2 | |
| Number of Rows | 2 | |
| Pitch | 4.2mm | |
| Gender | Female | |
| Mounting Type | Cable Mount | |
| Series | Mini-Fit | |
| For Use With | 45750 Mini-Fit Plus HCS Crimp Terminals, 5556 Mini-Fit Female Crimp Terminals | |
| Length | 5.4mm | |
| Width | 19.6mm | |
| Housing Material | Nylon | |
Select all | ||
|---|---|---|
Brand Molex | ||
Number of Contacts 2 | ||
Number of Rows 2 | ||
Pitch 4.2mm | ||
Gender Female | ||
Mounting Type Cable Mount | ||
Series Mini-Fit | ||
For Use With 45750 Mini-Fit Plus HCS Crimp Terminals, 5556 Mini-Fit Female Crimp Terminals | ||
Length 5.4mm | ||
Width 19.6mm | ||
Housing Material Nylon | ||

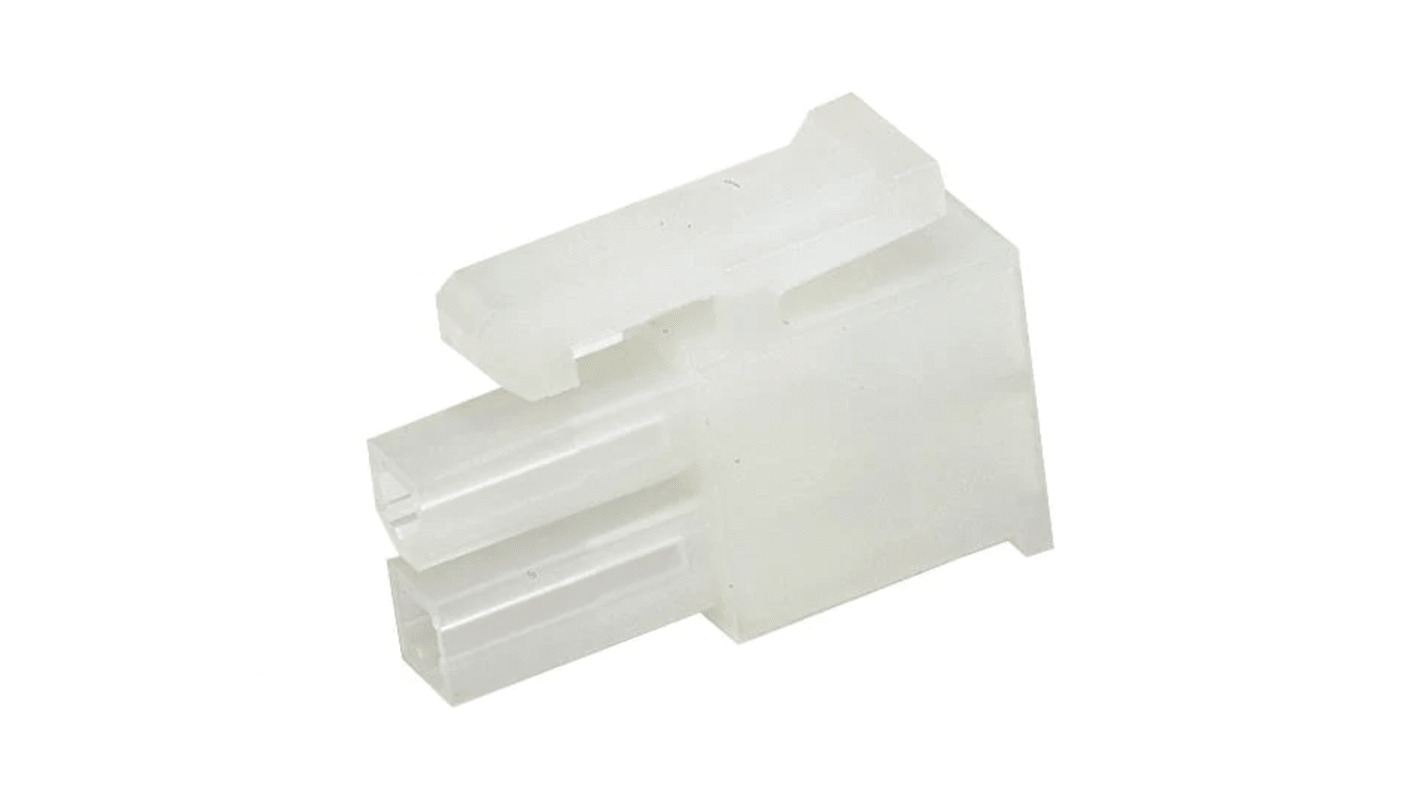

Molex Mini-Fit Series Crimp Connector Housing, 2 Contacts, Female - 39-01-2020
This crimp connector housing is an essential component within the Mini-Fit series, designed for electrical connections in various applications. With a compact size of 5.4mm x 19.6mm, it securely accommodates two rows of contacts and ensures reliable connections for up to two circuits. Crafted from durable nylon, this connector housing meets high-performance standards for electrical connectivity in industrial settings.
Features & Benefits
• Designed for use with Mini-Fit Plus HCS terminals
• Compact dimensions optimising space in assemblies
• Effectively supports a maximum current of 13A per circuit
• Dual row structure enhances circuit density without bulk
• Reliable cable mount design for straightforward installation
• Nylon construction promotes strong resistance to harsh conditions
• Compact dimensions optimising space in assemblies
• Effectively supports a maximum current of 13A per circuit
• Dual row structure enhances circuit density without bulk
• Reliable cable mount design for straightforward installation
• Nylon construction promotes strong resistance to harsh conditions
Applications
• Compatible with 45750 Mini-Fit Plus HCS crimp terminals
• Ideal for wire-to-board and wire-to-wire
• Perfect for connecting electrical components in machinery
• Ideal for wire-to-board and wire-to-wire
• Perfect for connecting electrical components in machinery
What materials are used in the construction of this housing?
This housing is constructed from nylon, which offers excellent durability and resistance to environmental factors, ensuring long-lasting performance in various applications.
How does the connector maintain a secure fit with the terminals?
The design features a polarised mating interface that ensures correct alignment and a secure connection with both Mini-Fit Plus HCS and Mini-Fit female crimp terminals, preventing accidental disconnections.
What is the operational temperature range for this connector?
This connector housing is rated for temperature ranges from -40°C to +105°C, allowing it to function effectively in extreme conditions without compromising performance.
Are there any specific installation requirements I should be aware of?
Installation is straightforward due to its cable mount design. Ensure the fitting of the terminals is done correctly to achieve optimal performance, with attention to the maximum current rating of 13A per circuit.
