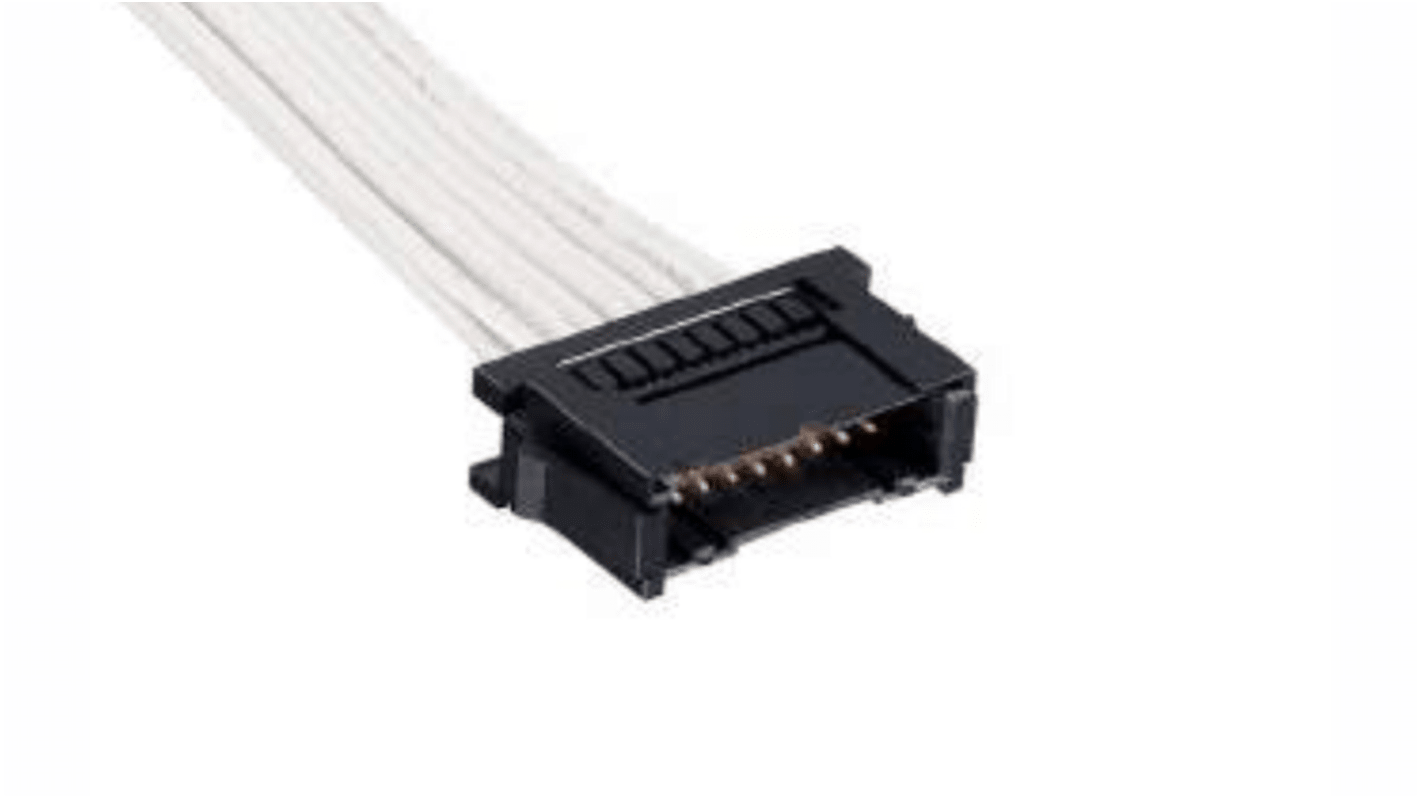

Hirose, DF51 Male Connector Housing, 2mm Pitch, 20 Way, 2 Row
- RS Stock No.:
- 185-2269
- Mfr. Part No.:
- DF51-20DEP-2C
- Brand:
- Hirose
Save 7% when you buy 1000 units
Subtotal (1 tray of 100 units)*
£63.10
(exc. VAT)
£75.70
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 29 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tray* |
|---|---|---|
| 100 - 400 | £0.631 | £63.10 |
| 500 - 900 | £0.605 | £60.50 |
| 1000 + | £0.581 | £58.10 |
*price indicative
- RS Stock No.:
- 185-2269
- Mfr. Part No.:
- DF51-20DEP-2C
- Brand:
- Hirose
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hirose | |
| Number of Contacts | 20 | |
| Number of Rows | 2 | |
| Pitch | 2mm | |
| Gender | Male | |
| Mounting Type | Cable Mount | |
| Series | DF51 | |
| For Use With | DF51 Series Connectors | |
| Length | 32.4mm | |
| Width | 15.15mm | |
| Housing Material | PBT | |
Select all | ||
|---|---|---|
Brand Hirose | ||
Number of Contacts 20 | ||
Number of Rows 2 | ||
Pitch 2mm | ||
Gender Male | ||
Mounting Type Cable Mount | ||
Series DF51 | ||
For Use With DF51 Series Connectors | ||
Length 32.4mm | ||
Width 15.15mm | ||
Housing Material PBT | ||
- COO (Country of Origin):
- JP
Positive lock provides clear tactile click and secures reliable connection
The locking mechanism delivers a clear tactile click, which prevents incomplete mating
Wide variation - Each of Straight / Right angle / In-line configuration equipped with single row and dual row for flexible design
Gold and Tin plating options support various application needs
Secure Side-locking design - Short depth straight type and low profile right angle type are well suited for compact / thin equipment
Prevents incorrect mating - Visually and mechanically polarized features prevent reverse mating and incorrect mating between different number of positions
Use common terminals and crimping tools with DF11 Series - Wide applicable cable range : 22 to 30 AWG
Suitable for potting - Capable of being potted, up to 3mm
Applications - Office automation, Industrial machinery, Industrial robots, Amusement equipment, Medical equipment
The locking mechanism delivers a clear tactile click, which prevents incomplete mating
Wide variation - Each of Straight / Right angle / In-line configuration equipped with single row and dual row for flexible design
Gold and Tin plating options support various application needs
Secure Side-locking design - Short depth straight type and low profile right angle type are well suited for compact / thin equipment
Prevents incorrect mating - Visually and mechanically polarized features prevent reverse mating and incorrect mating between different number of positions
Use common terminals and crimping tools with DF11 Series - Wide applicable cable range : 22 to 30 AWG
Suitable for potting - Capable of being potted, up to 3mm
Applications - Office automation, Industrial machinery, Industrial robots, Amusement equipment, Medical equipment
