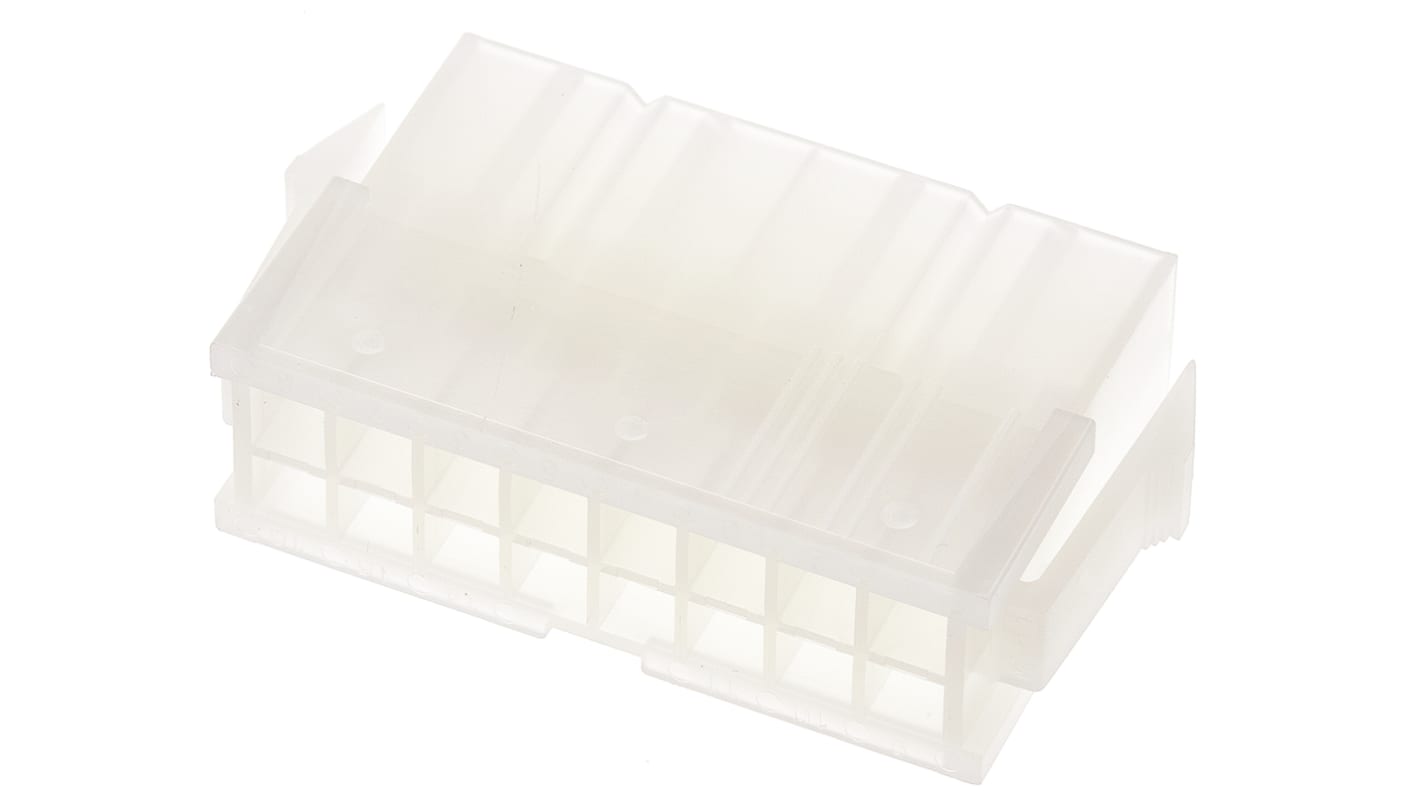

Molex, Mini-Fit Jr Male Connector Housing, 4.2mm Pitch, 16 Way, 2 Row
- RS Stock No.:
- 172-9128
- Mfr. Part No.:
- 39-01-2161
- Brand:
- Molex
Save 44% when you buy 1500 units
Subtotal (1 pack of 5 units)*
£5.10
(exc. VAT)
£6.10
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 985 unit(s) shipping from 01 October 2025
- Plus 405 unit(s) shipping from 01 October 2025
- Plus 8,005 unit(s) shipping from 08 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
5 - 95 | £1.02 | £5.10 |
100 - 370 | £0.702 | £3.51 |
375 - 1495 | £0.676 | £3.38 |
1500 + | £0.562 | £2.81 |
*price indicative
- RS Stock No.:
- 172-9128
- Mfr. Part No.:
- 39-01-2161
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Molex | |
Number of Contacts | 16 | |
Number of Rows | 2 | |
Pitch | 4.2mm | |
Gender | Male | |
Mounting Type | Panel Mount | |
Series | Mini-Fit Jr | |
For Use With | Mini-Fit Jr. Plug | |
Body Orientation | Straight | |
Length | 40.2mm | |
Width | 12mm | |
Housing Material | Nylon | |
Select all | ||
---|---|---|
Brand Molex | ||
Number of Contacts 16 | ||
Number of Rows 2 | ||
Pitch 4.2mm | ||
Gender Male | ||
Mounting Type Panel Mount | ||
Series Mini-Fit Jr | ||
For Use With Mini-Fit Jr. Plug | ||
Body Orientation Straight | ||
Length 40.2mm | ||
Width 12mm | ||
Housing Material Nylon | ||
Molex Mini-Fit Junior Crimp Receptacle and Plug Housings
Mini-Fit Junior 4.2 mm pitch connector housings form part of the Mini-Fit Junior power connectors interconnection system. Molex connector housings can be used in applications that require design flexibility. These types of fittings are an essential component that offer protection for the connection it is housing.
Features and Benefits
• Handle Up to 13A current per circuit, a great solution for high current connectors
• Fully isolated terminals for protection against debris and damage caused by mishandling
• Polarization and keying to prevent mismating ad misalignment
• Positive locking mechanism for secure mating connection prevents accidental unmating caused by excessive shock or vibration
• Audible click for mating confirmation
• Available with a flame retardant UL94V-0 or UL94V-2 housing material
• Accepts standard Mini-Fit and Mini-Fit Plus crimp terminals
• Wire to wire and wire to board applications
• Fully isolated terminals for protection against debris and damage caused by mishandling
• Polarization and keying to prevent mismating ad misalignment
• Positive locking mechanism for secure mating connection prevents accidental unmating caused by excessive shock or vibration
• Audible click for mating confirmation
• Available with a flame retardant UL94V-0 or UL94V-2 housing material
• Accepts standard Mini-Fit and Mini-Fit Plus crimp terminals
• Wire to wire and wire to board applications
Molex Male Connector Housing, 16 Way, 2 Rows - Mini-Fit Jr Series - 39-01-2161
This connector housing from Molex is used to efficiently link a cable to a PCB. It's compatible with the interconnection system used by Mini-Fit Jr power connectors. The design of the housing lets you transmit signals to 16 different circuits at the same time, so it eliminates the need for excess cabling. As the nylon housing is durable and resistant to impact, this is a good choice for harsh environments. A 4.2mm pitch creates a safe space between conductors to prevent short circuits and assure you of electrical safety. You'll find this component commonly used in the telecommunications industry.
• Wide operating temperature range of -40°C to +105°C for use in challenging conditions
• Current rating of 13A to handle high-current applications
• Fully isolated terminals protect contacts from dust and damage from mishandling
• Polarised design to prevent incorrect mating
• Positive locking mechanism provides a secure link to the PCB
• Current rating of 13A to handle high-current applications
• Fully isolated terminals protect contacts from dust and damage from mishandling
• Polarised design to prevent incorrect mating
• Positive locking mechanism provides a secure link to the PCB
Applications
• Medical equipment
• Robotics and automation
• Personal computers
• Robotics and automation
• Personal computers
What kind of applications can I use this connector housing for?
This connector housing is designed for making wire-to-wire and wire-to-board connections.
Molex Minifit Jr.™ Series
