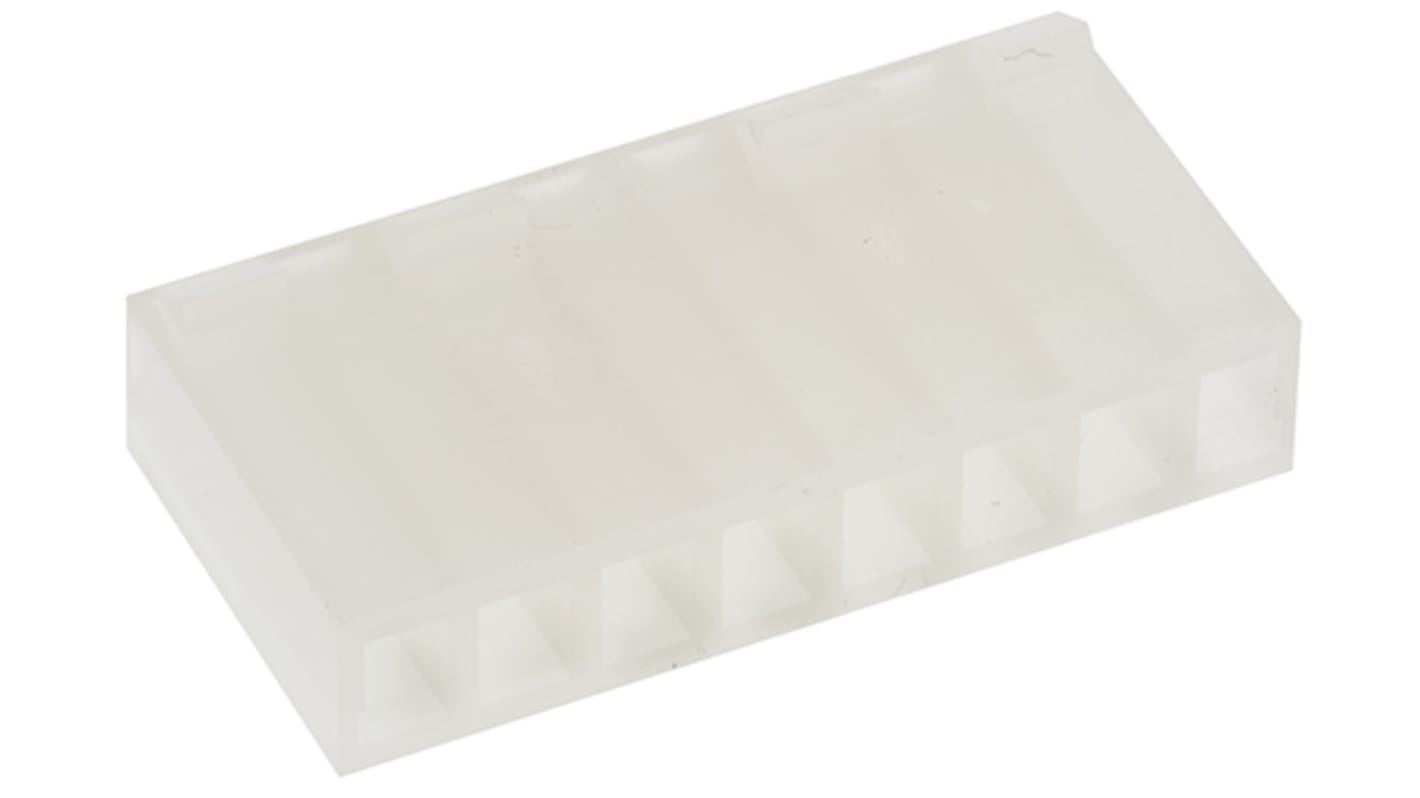

Molex, KK 396 Female Connector Housing, 3.96 mm Pitch, 8 Way, 1 Row Straight
- RS Stock No.:
- 170-7214
- Mfr. Part No.:
- 09-50-3081
- Brand:
- Molex
Subtotal (1 bag of 1000 units)*
£255.00
(exc. VAT)
£306.00
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 10,000 unit(s) shipping from 08 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 1000 + | £0.255 | £255.00 |
*price indicative
- RS Stock No.:
- 170-7214
- Mfr. Part No.:
- 09-50-3081
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Number of Contacts | 8 | |
| Product Type | Connector Housing | |
| Number of Rows | 1 | |
| Pitch | 3.96mm | |
| Connector Gender | Female | |
| Mount Type | Cable | |
| For Use With | KK Connector | |
| Orientation | Straight | |
| Length | 31.6mm | |
| Standards/Approvals | No | |
| Width | 6.4mm | |
| Series | KK 396 | |
| Housing Material | Nylon | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Number of Contacts 8 | ||
Product Type Connector Housing | ||
Number of Rows 1 | ||
Pitch 3.96mm | ||
Connector Gender Female | ||
Mount Type Cable | ||
For Use With KK Connector | ||
Orientation Straight | ||
Length 31.6mm | ||
Standards/Approvals No | ||
Width 6.4mm | ||
Series KK 396 | ||
Housing Material Nylon | ||
- COO (Country of Origin):
- IN
Molex Connector Housing, Nylon Material, Friction Ramp Locking - 2139 Series - 09-50-3081
Want quick connectivity in your PCB system? Snap to it with this connector housing from Molex. Its handy plug-in mating design links circuits to a board without extra wiring, so you can speed through device set-up. With friction ramps locking the unit to its header, it has excellent resistance to vibration. Slipping it into low-profile areas is hassle-free, thanks to its slim single-row design measuring just 31.6 (L) x 6.4mm (W).
Features & Benefits
• Industry-standard pitch of 3.96mm makes it easy to swap between boards
• Holds up to 8 connections for wide circuit coverage
• Made of nylon, which acts as an insulator to reduce the risk of electric shocks
Applications
• Factory automation
• Office equipment
• Telecommunications networks
Does this connector housing come with contacts?
No, you should pick out terminals (such as 173-3284) separately before using this product.
Molex KK Range of 2139 Series Housings
This range of Series 2139 Connector Housings feature a 3.96 mm pitch and form part of the KK Interconnect system from Molex, which provides a simple and economical way to make multipole connections to printed circuit boards. These types of fittings are an essential component that offer protection for the connection it is housing.
Features and Benefits
• 3.96 mm pitch
• Wire to board configurations and fittings
• Natural (white) colour
• Single Row
• Friction lock prevents accidental disconnection
• Ramp and polarising ribs
• Accepts KK 2478 and 2578 series terminals
3.96mm Molex KK Range
Note
For suitable crimp tools see, for example, stock number 450-391
