Souriau Sunbank by Eaton, SMS Female PCB Housing, 2 Way
- RS Stock No.:
- 124-6043
- Mfr. Part No.:
- SMS2RDH3
- Brand:
- Souriau Sunbank by Eaton
Save 40% when you buy 250 units
Subtotal (1 pack of 5 units)*
£29.95
(exc. VAT)
£35.95
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 85 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
5 - 45 | £5.99 | £29.95 |
50 - 245 | £4.164 | £20.82 |
250 + | £3.54 | £17.70 |
*price indicative
- RS Stock No.:
- 124-6043
- Mfr. Part No.:
- SMS2RDH3
- Brand:
- Souriau Sunbank by Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Souriau Sunbank by Eaton | |
Number of Contacts | 2 | |
Gender | Female | |
Mounting Type | Cable Mount | |
Series | SMS | |
For Use With | Quick Mating PCB Connector | |
Body Orientation | Straight | |
Length | 11.1mm | |
Width | 49.2mm | |
Housing Material | Nylon | |
Select all | ||
---|---|---|
Brand Souriau Sunbank by Eaton | ||
Number of Contacts 2 | ||
Gender Female | ||
Mounting Type Cable Mount | ||
Series SMS | ||
For Use With Quick Mating PCB Connector | ||
Body Orientation Straight | ||
Length 11.1mm | ||
Width 49.2mm | ||
Housing Material Nylon | ||
- COO (Country of Origin):
- BE

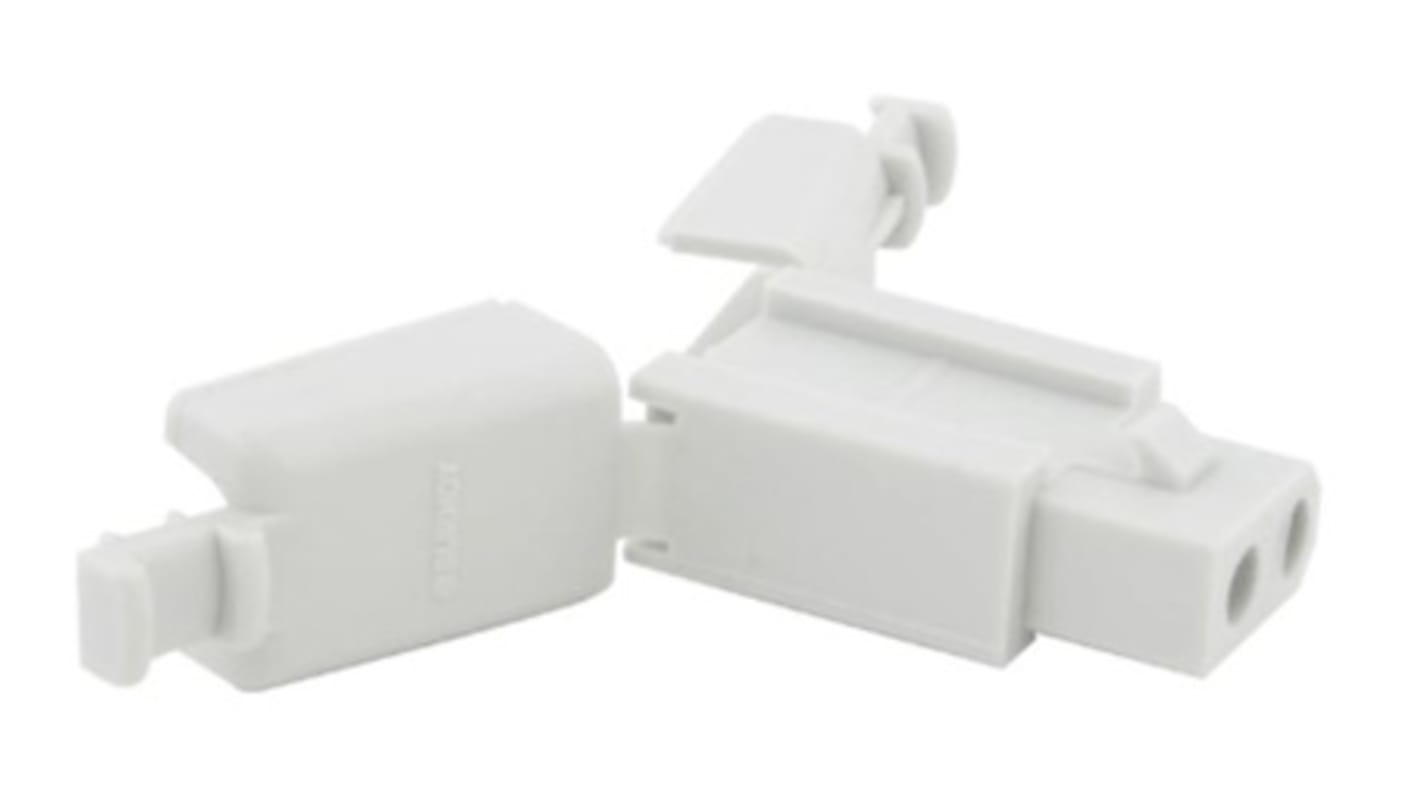

Souriau SMS Series Quick Mating Cable Mount Receptacle Housings
SMS series quick mating cable mount receptacle housings with a compact design and 'push to mate' and 'press & release to unmate' interconnection system that enables quick assembly and installation without the need for any additional hardware. These SMS series quick mating cable mount receptacle connectors also feature positive polarization keys to prevent mismating, discrimination cavities in beween the contact cavities and integrated strain relief hoods that can accept a wide range of cables.
Available from 2 position to 36 position, these SMS series quick mating cable connectors use size 16 TRIM TRIO 1.6mm diameter snap-lock pin and socket contacts which need to be purchased separately (see stock number 687-6364 typically)
For mating connectors see SMS series quick mating cable mount plug housings
Available from 2 position to 36 position, these SMS series quick mating cable connectors use size 16 TRIM TRIO 1.6mm diameter snap-lock pin and socket contacts which need to be purchased separately (see stock number 687-6364 typically)
For mating connectors see SMS series quick mating cable mount plug housings
Souriau SMS Series Quick Mating Wire to Board Connectors
