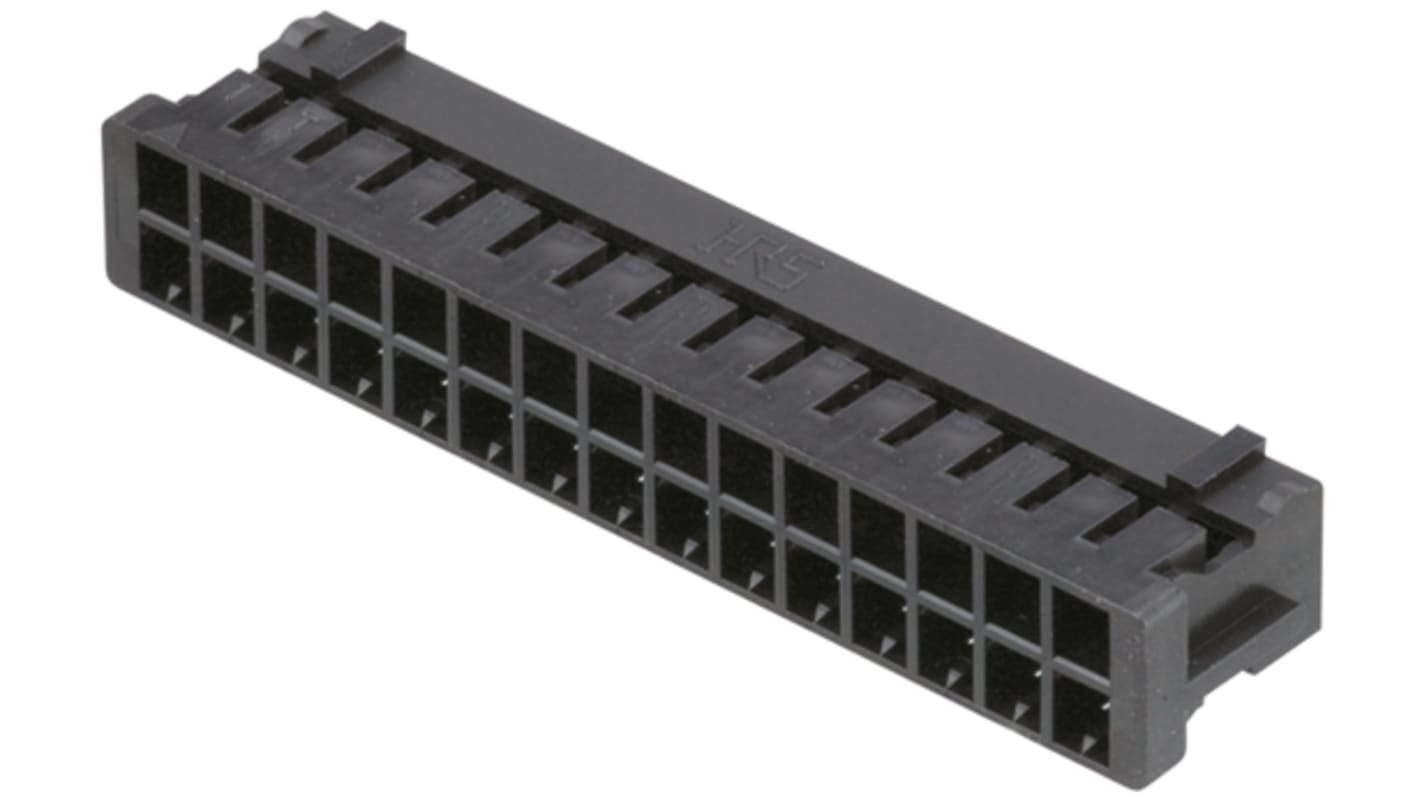

Hirose, DF11 Female Connector Housing, 2mm Pitch, 30 Way, 2 Row

Save 16% when you buy 60000 units

Subtotal (1 bag of 100 units)*

£24.00

(exc. VAT)

£29.00

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 100 unit(s) shipping from 12 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Bag*
100 - 1900£0.24£24.00
2000 - 7400£0.217£21.70
7500 - 29900£0.211£21.10
30000 - 59900£0.206£20.60
60000 +£0.20£20.00

*price indicative

RS Stock No.:
111-3647
Mfr. Part No.:
DF11-30DS-2C
Brand:
Hirose
Find similar products by selecting one or more attributes.
Select all

Brand

Hirose

Number of Contacts

30

Number of Rows

2

Pitch

2mm

Gender

Female

Mounting Type

Cable Mount

Series

DF11

For Use With

DF11 Series

Body Orientation

Straight

Length

32mm

Width

5mm

Housing Material

PA

COO (Country of Origin):
JP

Hirose DF11 Series 2.00 mm Crimp Connector Housings


DF11 series 2.00 mm crimp connector housings with a compact double row design and a depth of less than 5 mm. This space saving design allows a double row of contacts to be provided in the same space as a single row housing. These DF11 series connector housings feature ribs that prevent incorrect insertion and twisting when mating. A locking mechanism ensures that the connector housing is securely connected to the mating header. These DF11 series 2.00 mm connector housings mate with the DF11 series 2.00 mm PCB header connectors. Contacts for these crimp housings need to be purchased separately, see stock number 111-3621 typically


Features and Benefits


• Compact, space saving design
• 5 mm depth allows double row contact configuration in same space as single row housing
• Guide ribs to prevent mismating
• Locking mechanism for secure mating connection

Applications


• Portable devices that require multiple signals with a space saving footprint
• Digital cameras
• LCD displays
• Digital video recorders
• Car navigation
• Access control units
• Measurement devices


2.0mm Hirose DF11 Series Double Row Connectors
